Removal & Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, and 2002 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to OFF position.
Disconnect Manifold Absolute Pressure (MAP) sensor pressure line and electrical connector.
Remove MAP sensor mounting screws and remove sensor. See Fig 1 or Fig 2 .
Compress pressure hose clamp and remove hose from MAP sensor.
To install, reverse removal procedure.

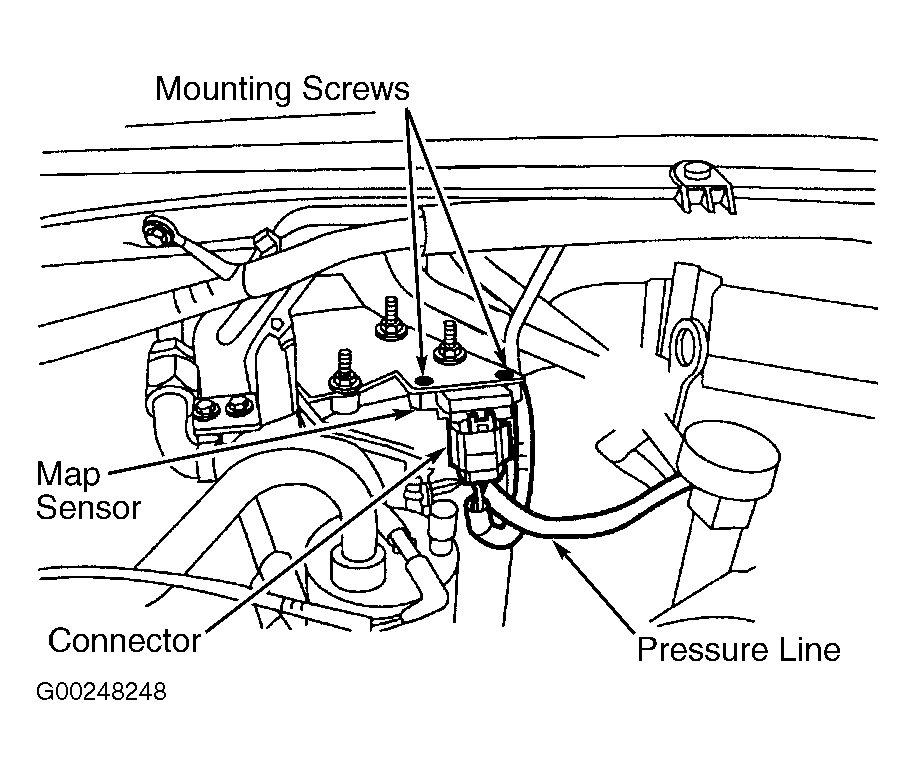

Fig 1: Removing & Installing Manifold Absolute Pressure Sensor (Econoline)

Courtesy of FORD MOTOR CO.

Fig 2: Removing & Installing Manifold Absolute Pressure Sensor (Excursion & Pickup)

Courtesy of FORD MOTOR CO.
