Removal & Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, and 2002 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

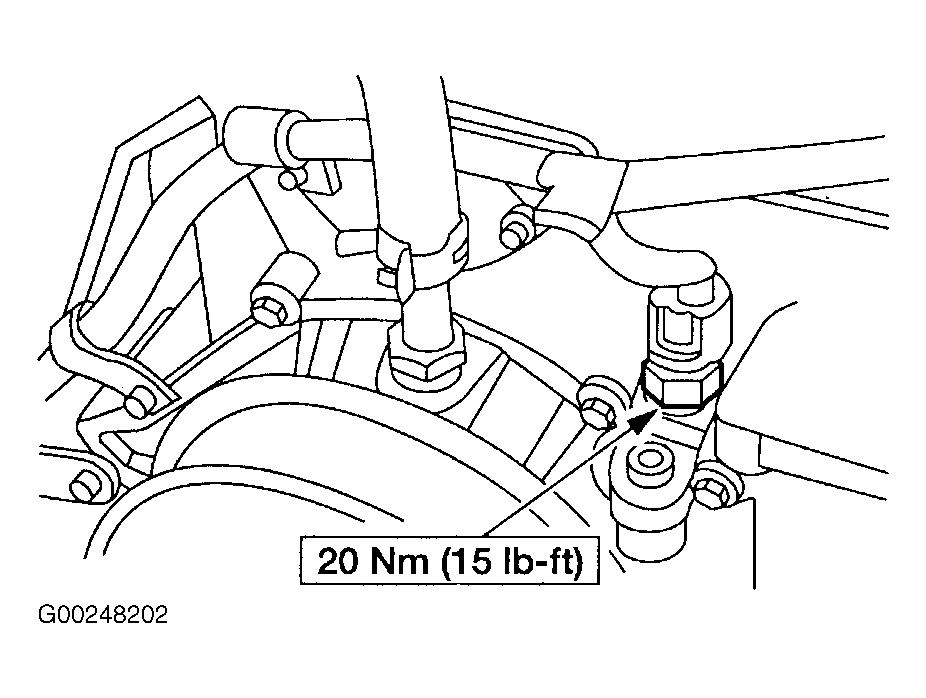

Turn ignition switch to OFF position. Partially drain cooling system. Disconnect Engine Coolant Temperature (ECT) sensor electrical connector and remove ECT from engine. See Fig 1. To install, reverse removal procedure. Tighten ECT sensor to specification. See TORQUE SPECIFICATIONS . Fill and bleed cooling system. See COOLING SYSTEM .
