Pinpoint Test G: A Single Illumination Source Is Inoperative

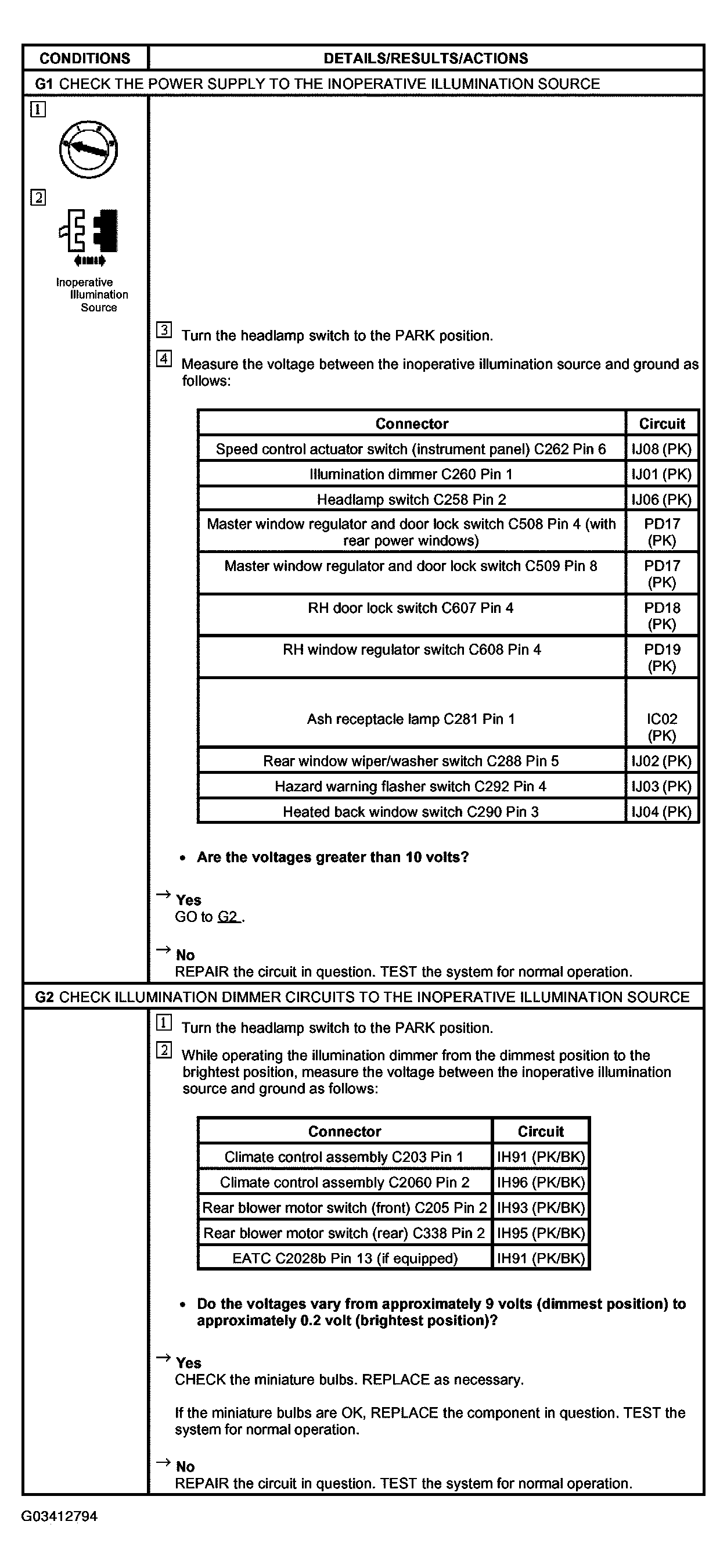

Fig 1: Pinpoint Test G: A Single Illumination Source Is Inoperative

G03412794

Courtesy of FORD MOTOR CO.
