Pinpoint Test F: The Audio System Illumination Is Inoperative

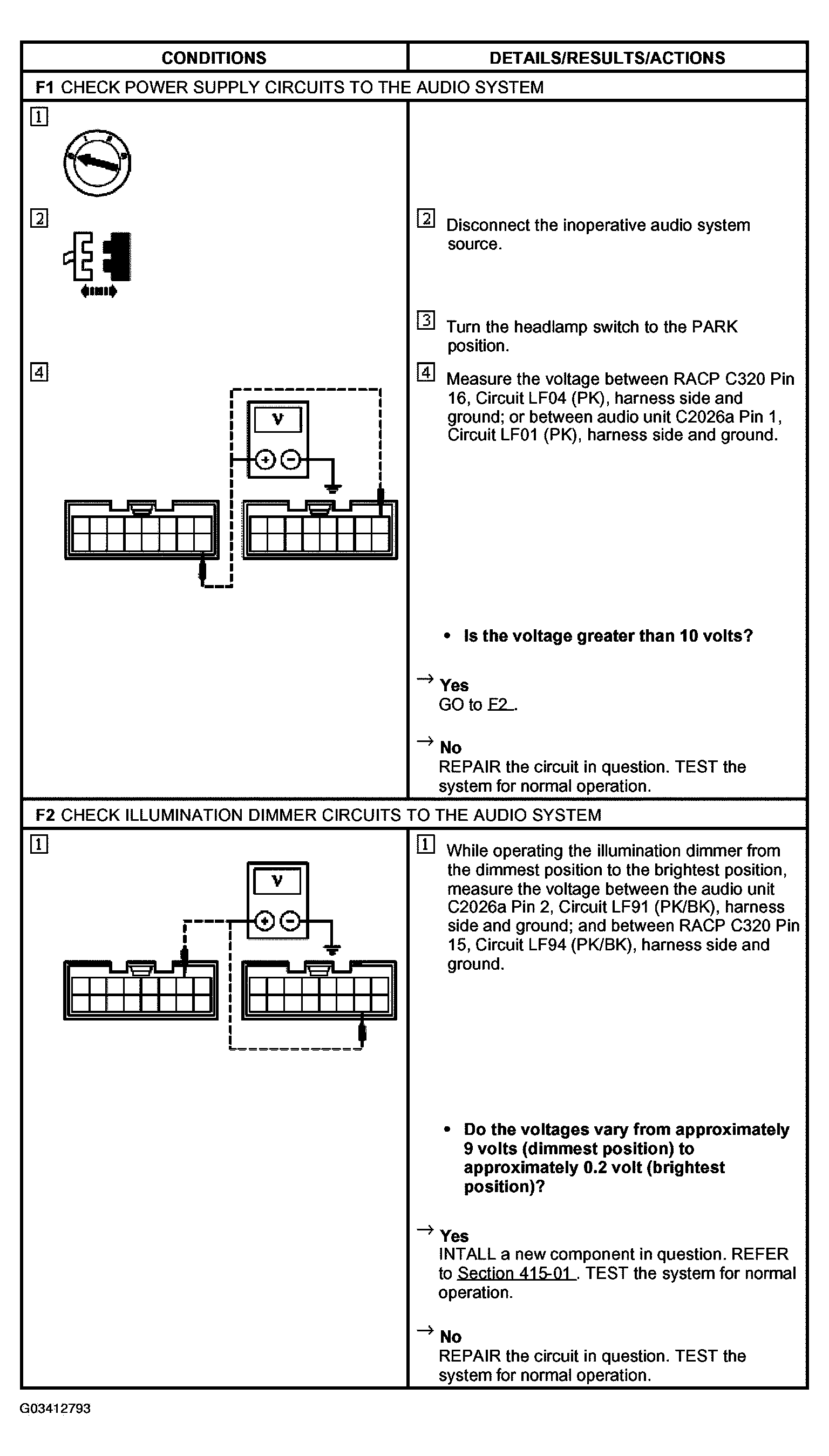

Fig 1: Pinpoint Test F: Audio System Illumination Is Inoperative

G03412793

Courtesy of FORD MOTOR CO.
