Pinpoint Test E: The Climate Control Illumination Is Inoperative

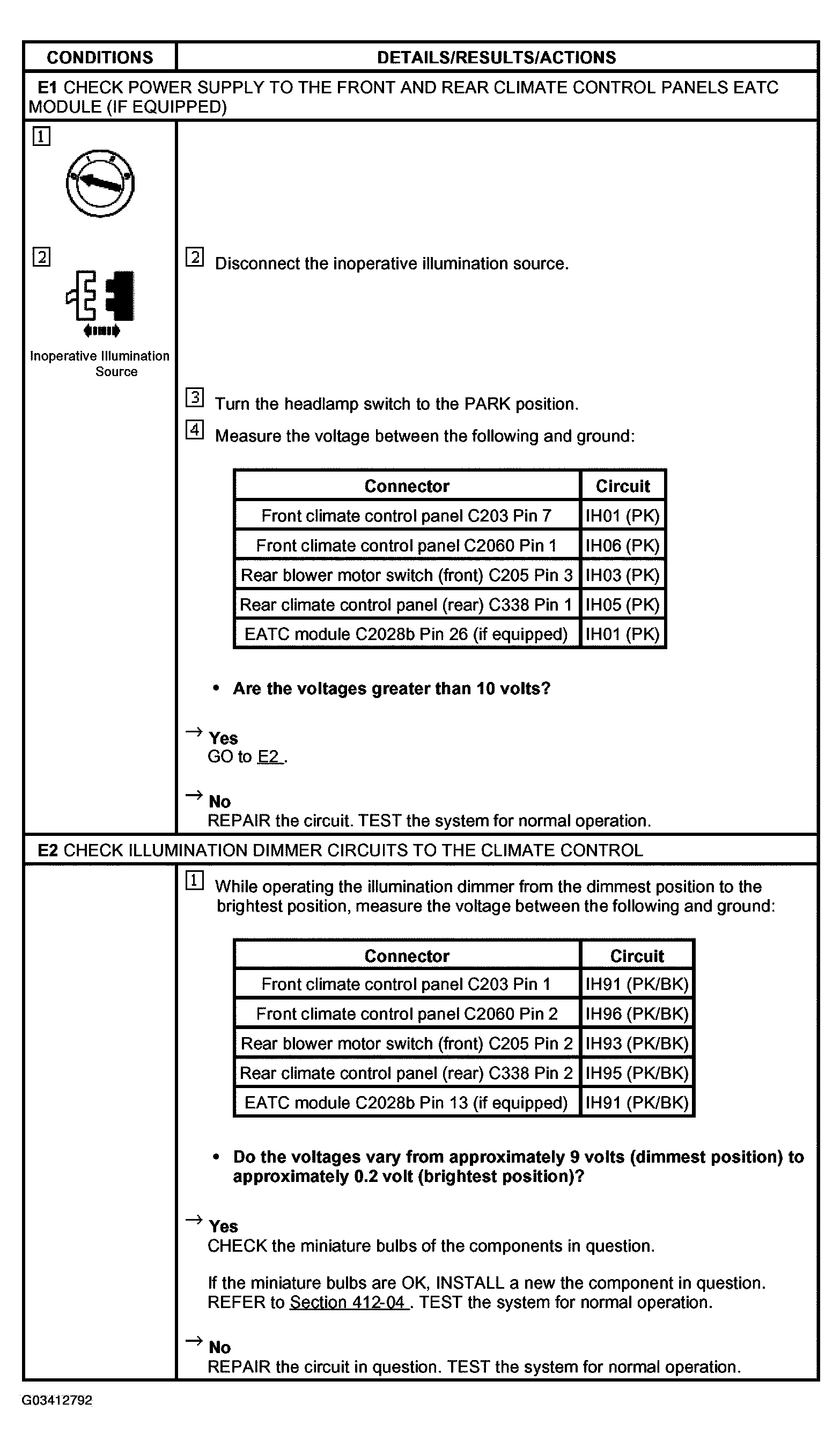

Fig 1: Pinpoint Test E: Climate Control Illumination Is Inoperative

G03412792

Courtesy of FORD MOTOR CO.
