Pinpoint Test D: The Instrument Cluster Illumination Is Inoperative - Electronic/Message Center

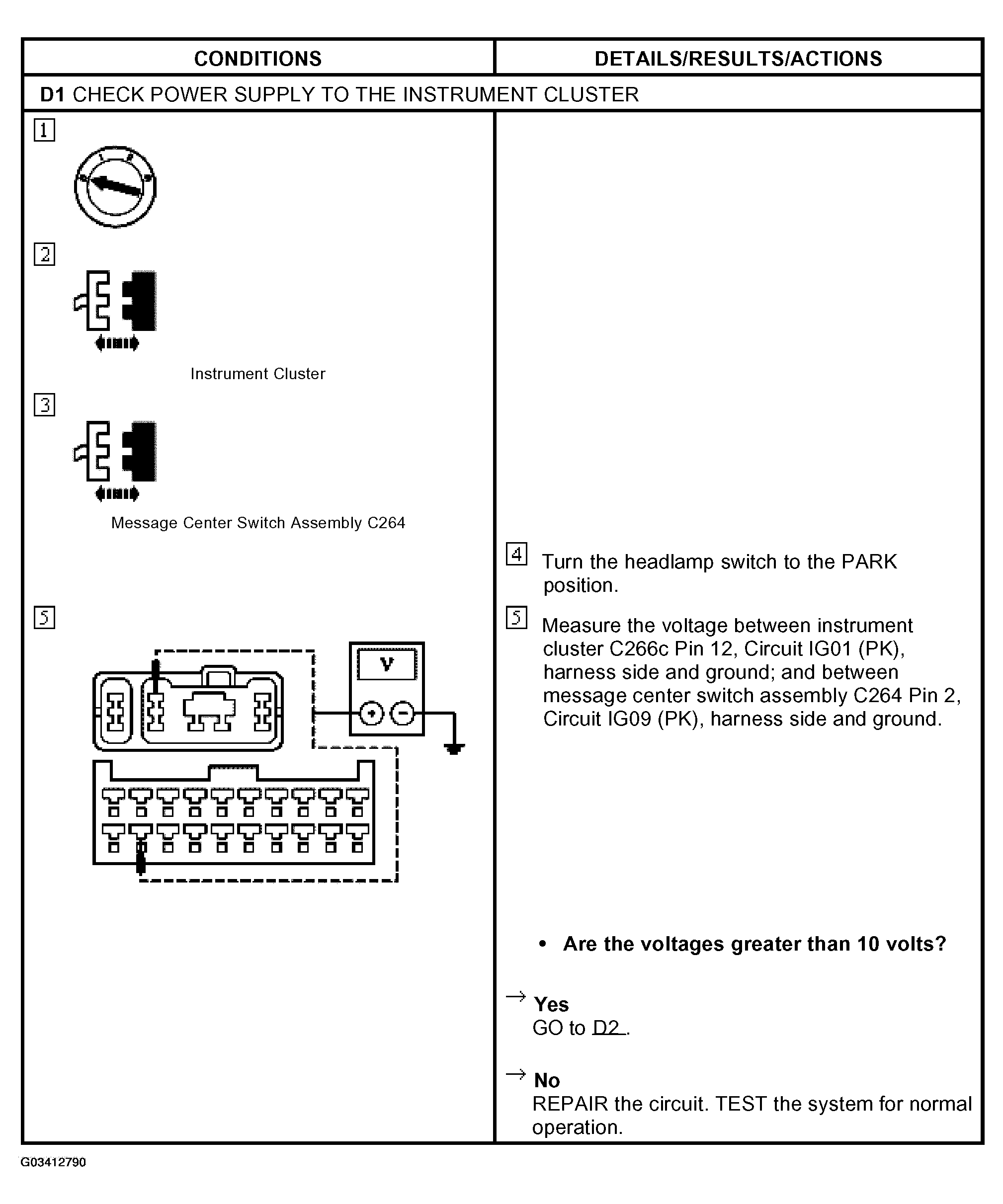

Fig 1: Pinpoint Test D: Instrument Cluster Illumination Is Inoperative - Electronic/Message Center (D1)
G03412790Courtesy of FORD MOTOR CO.

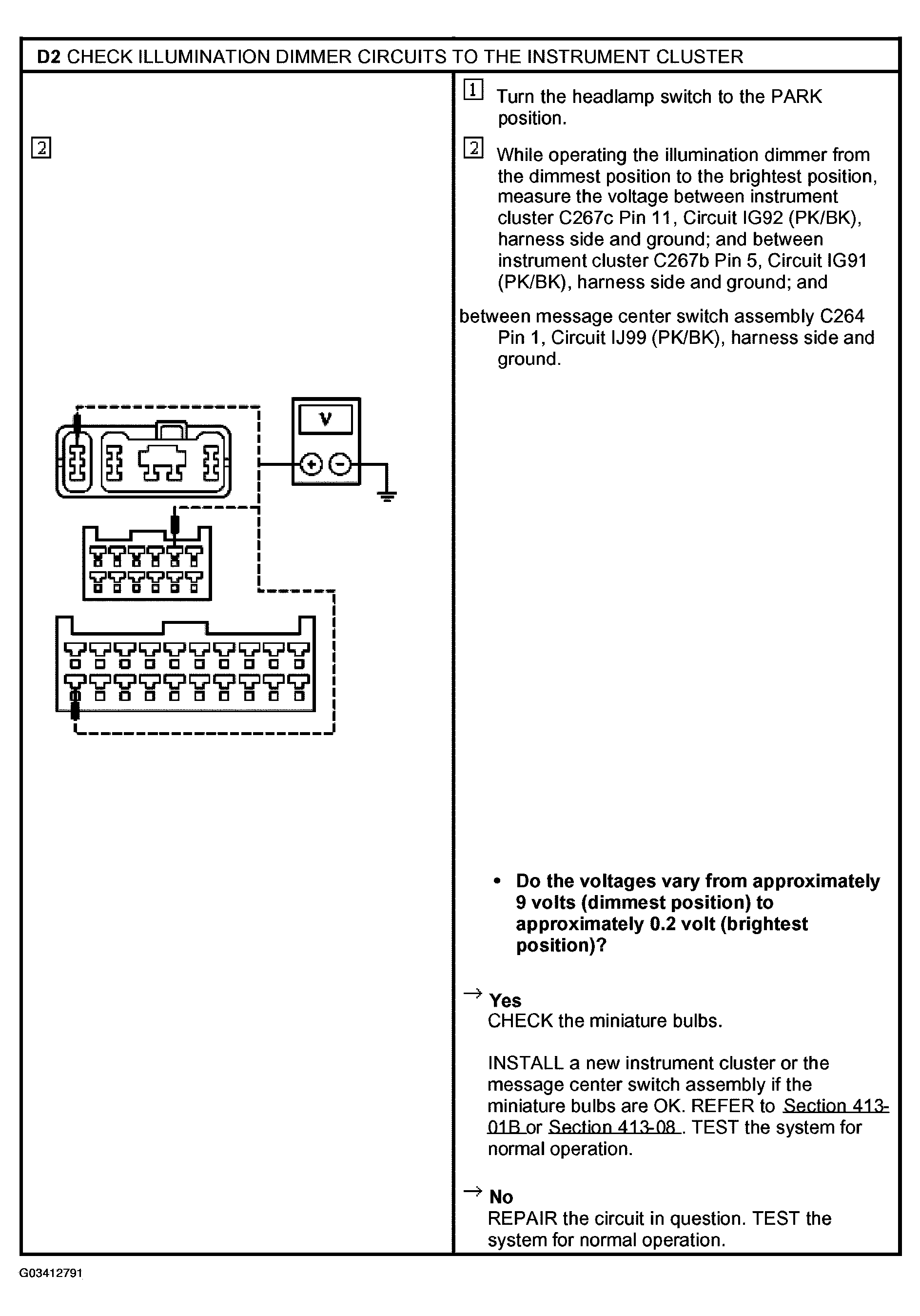

Fig 2: Pinpoint Test D: Instrument Cluster Illumination Is Inoperative - Electronic/Message Center (D2)
G03412791Courtesy of FORD MOTOR CO.
