Pinpoint Test B: The Instrument Panel Illumination Does Not Dim

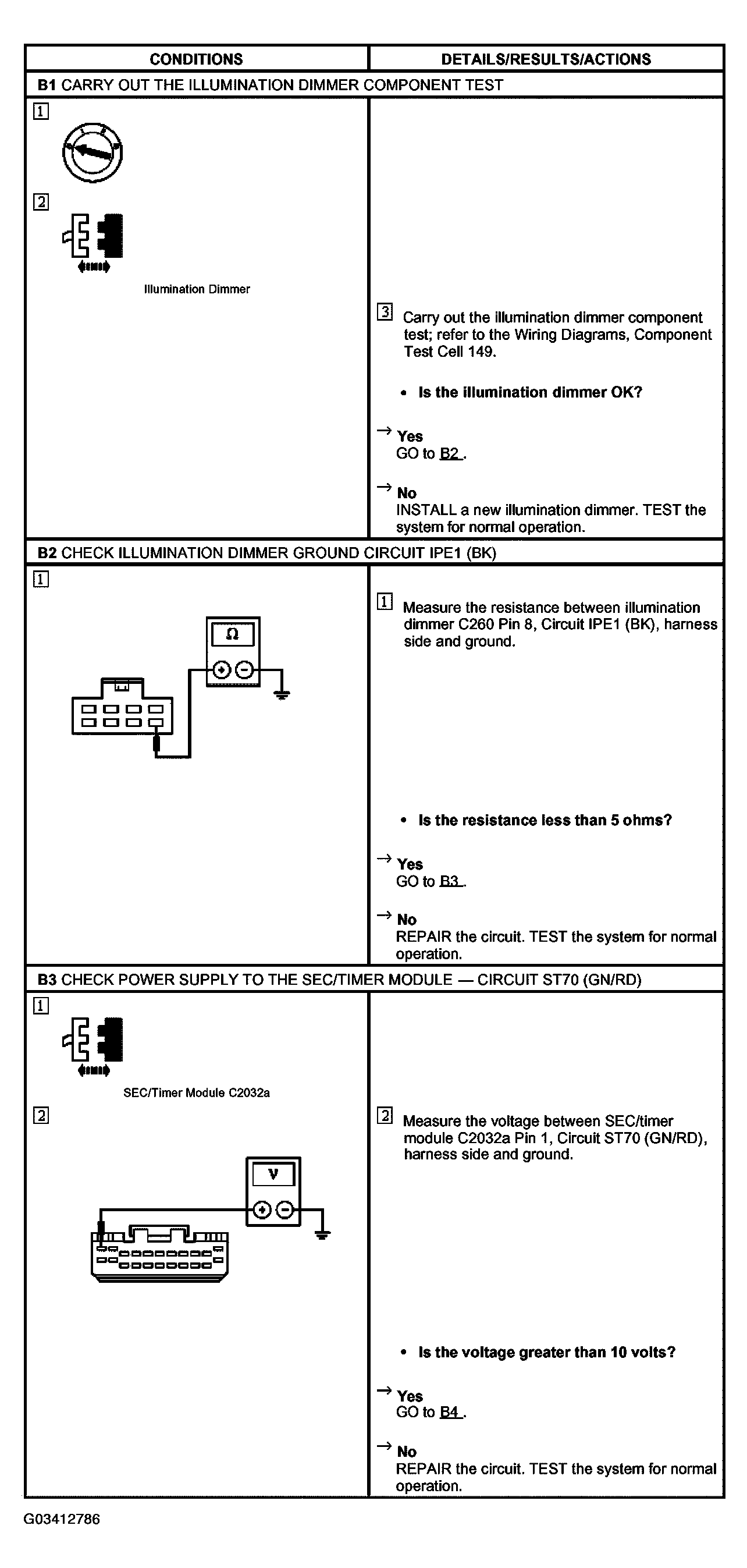

Fig 1: Pinpoint Test B: Instrument Panel Illumination Does Not Dim (B1 - B3)
G03412786Courtesy of FORD MOTOR CO.

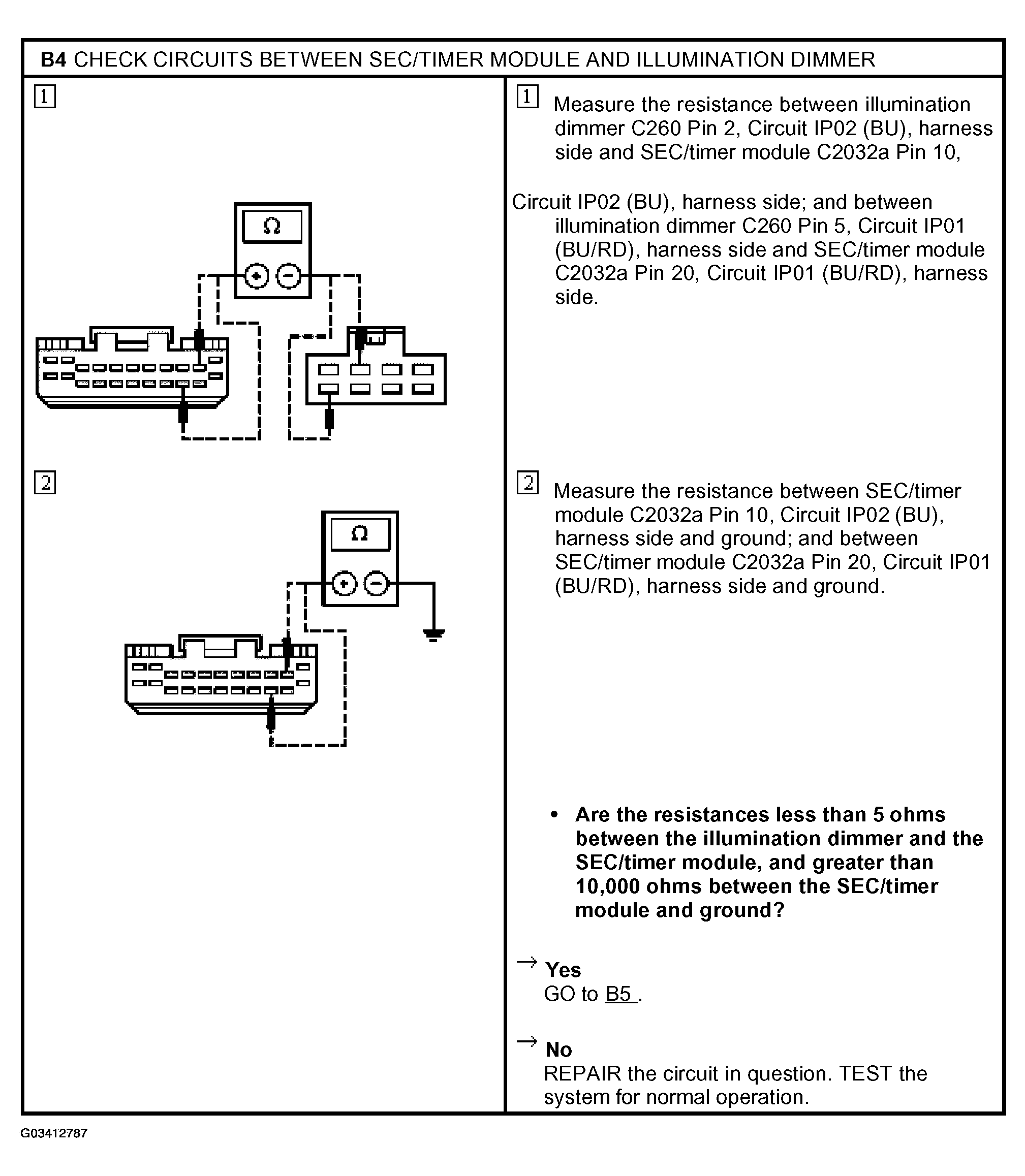

Fig 2: Pinpoint Test B: Instrument Panel Illumination Does Not Dim (B4)
G03412787Courtesy of FORD MOTOR CO.

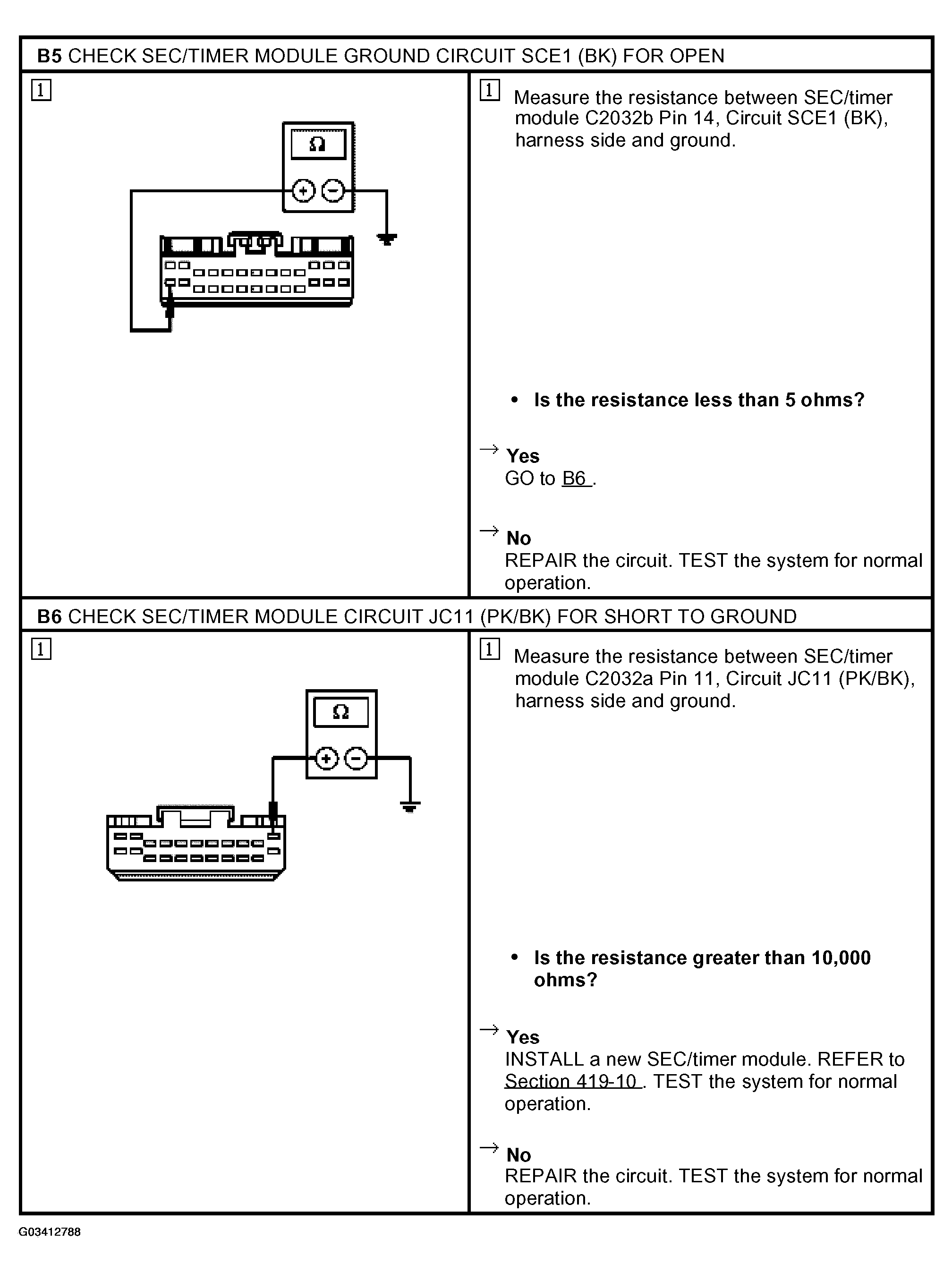

Fig 3: Pinpoint Test B: Instrument Panel Illumination Does Not Dim (B5 - B6)
G03412788Courtesy of FORD MOTOR CO.
