Pinpoint Test A: The Control Illumination Is Inoperative

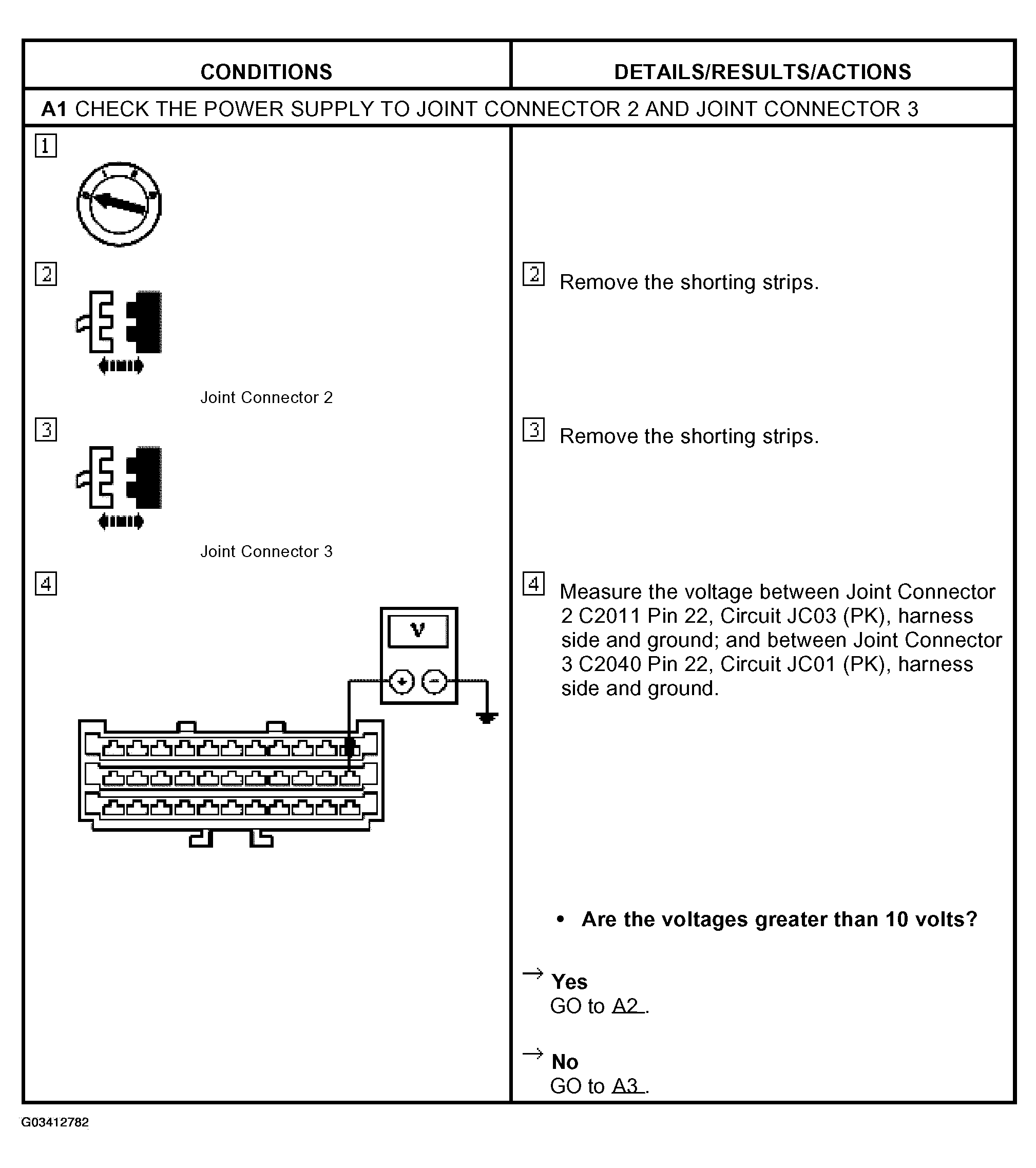

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1)

Courtesy of FORD MOTOR CO.

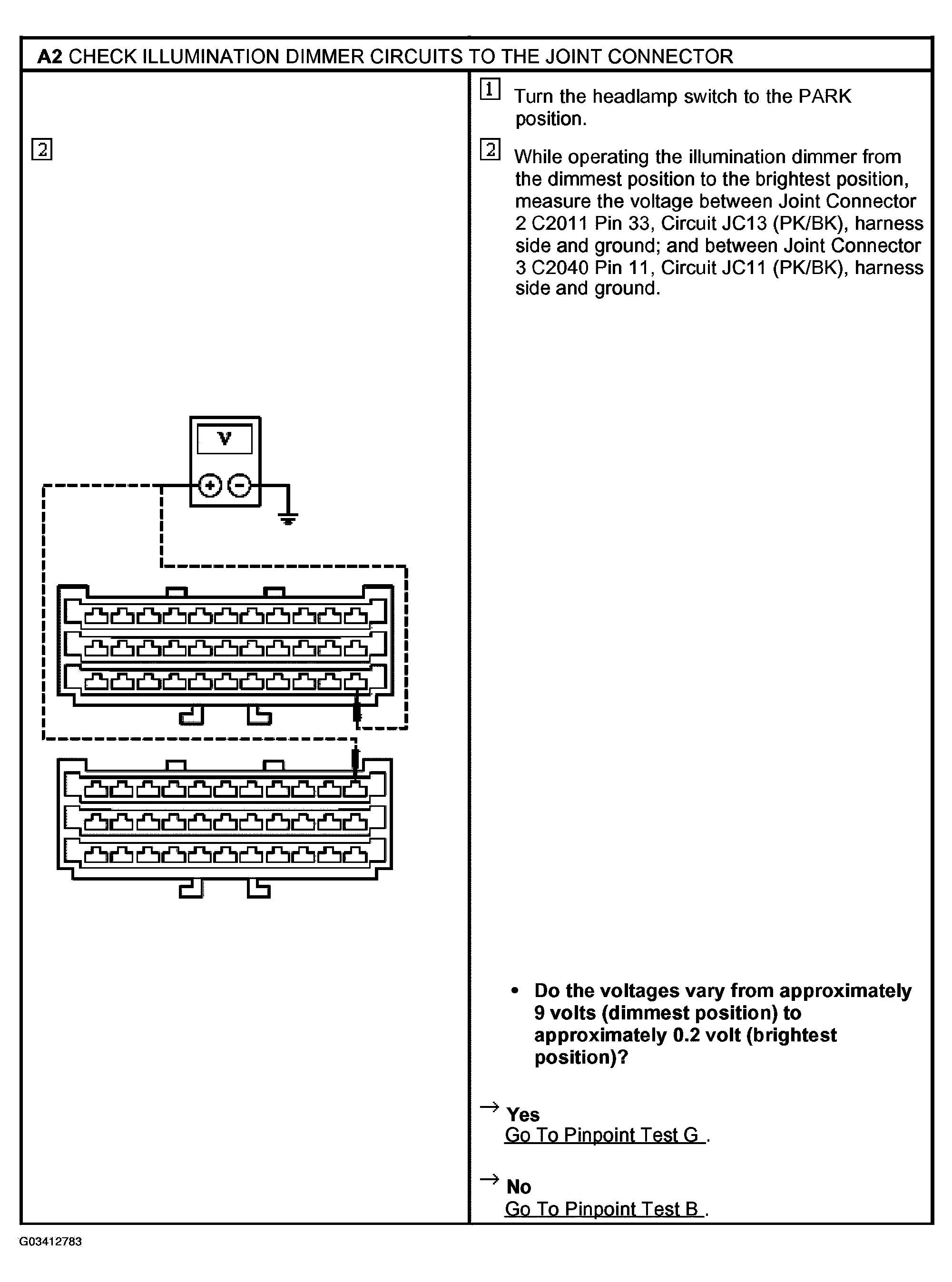

Fig 2: Pinpoint Test A: Control Illumination Is Inoperative (A2)

Courtesy of FORD MOTOR CO.

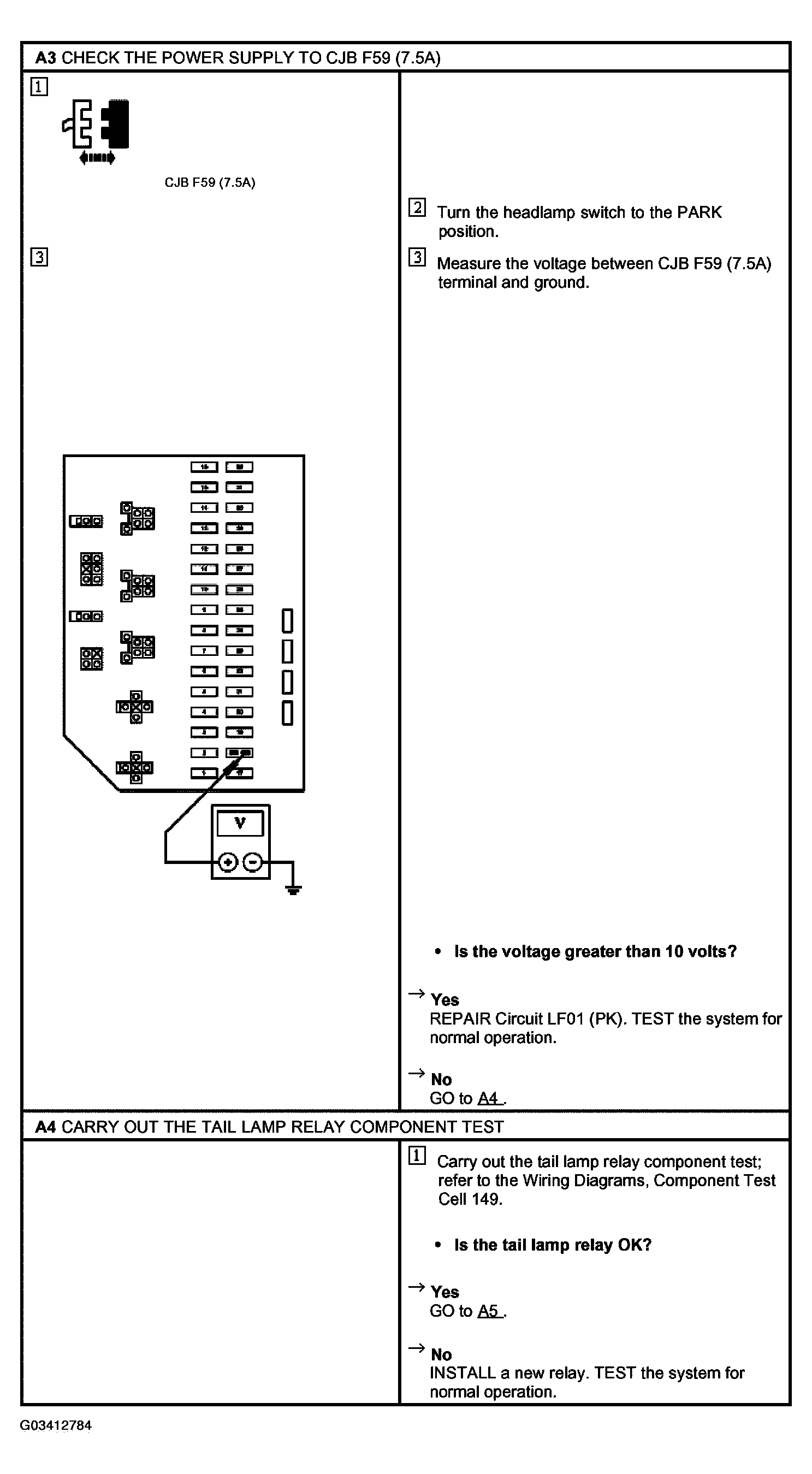

Fig 3: Pinpoint Test A: Control Illumination Is Inoperative (A3 - A4)

Courtesy of FORD MOTOR CO.

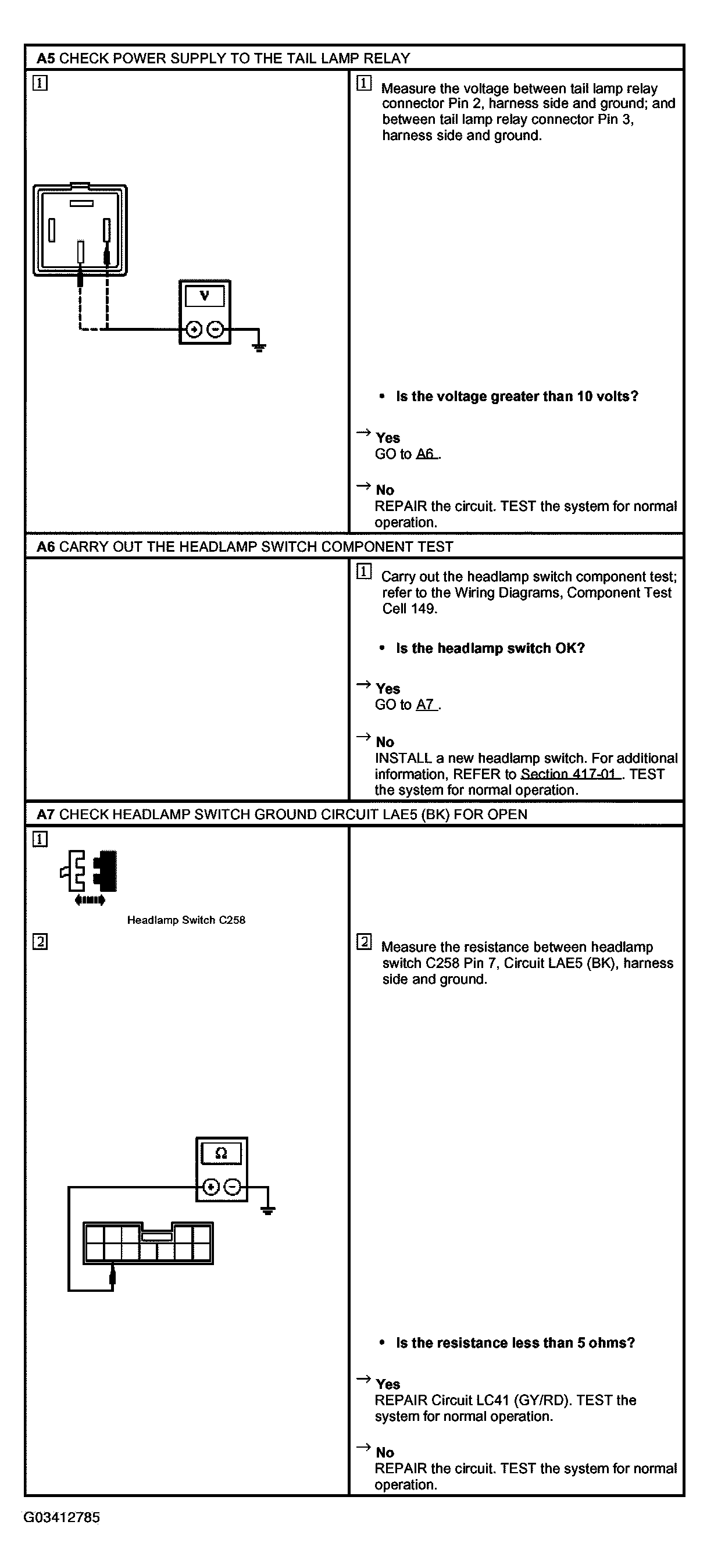

Fig 4: Pinpoint Test A: Control Illumination Is Inoperative (A5 - A7)

Courtesy of FORD MOTOR CO.
