Instrument Cluster-Electronic: Removal

  1. Remove the instrument panel cluster finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the instrument cluster screws.
    Fig 1: Removing Instrument Cluster Screws
    G03412833Courtesy of FORD MOTOR CO.
  3. Position the instrument cluster to allow access to the transmission range indicator.
  4. Disconnect the transmission range indicator from the instrument cluster.
  5. Remove the instrument cluster.
    • Disconnect the electrical connectors.

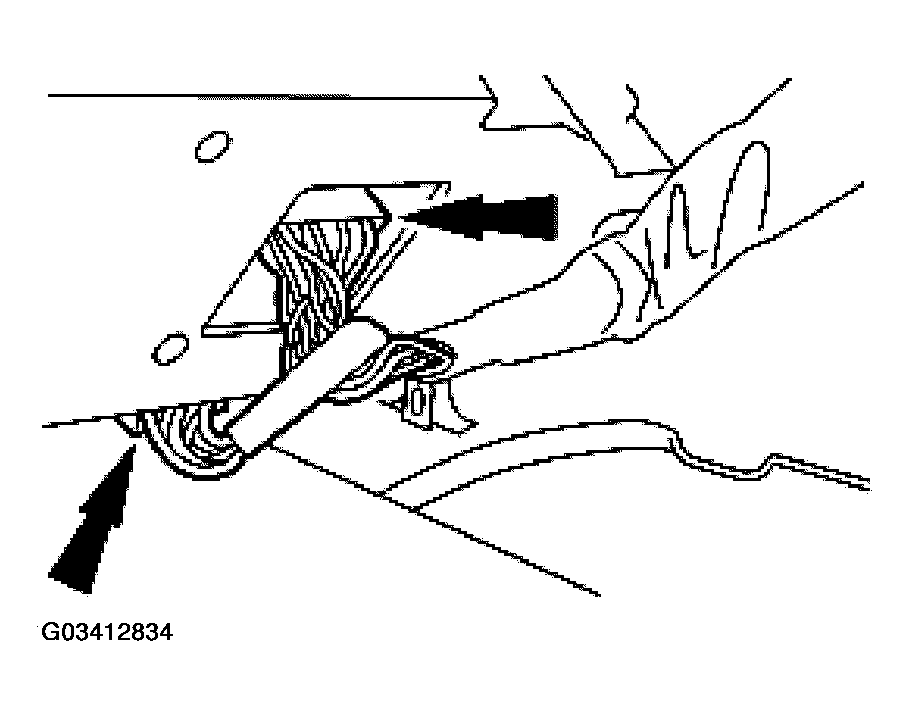

      Fig 2: Removing Instrument Cluster
      G03412834Courtesy of FORD MOTOR CO.
