Pinpoint Test A: The Instrument Cluster Is Inoperative

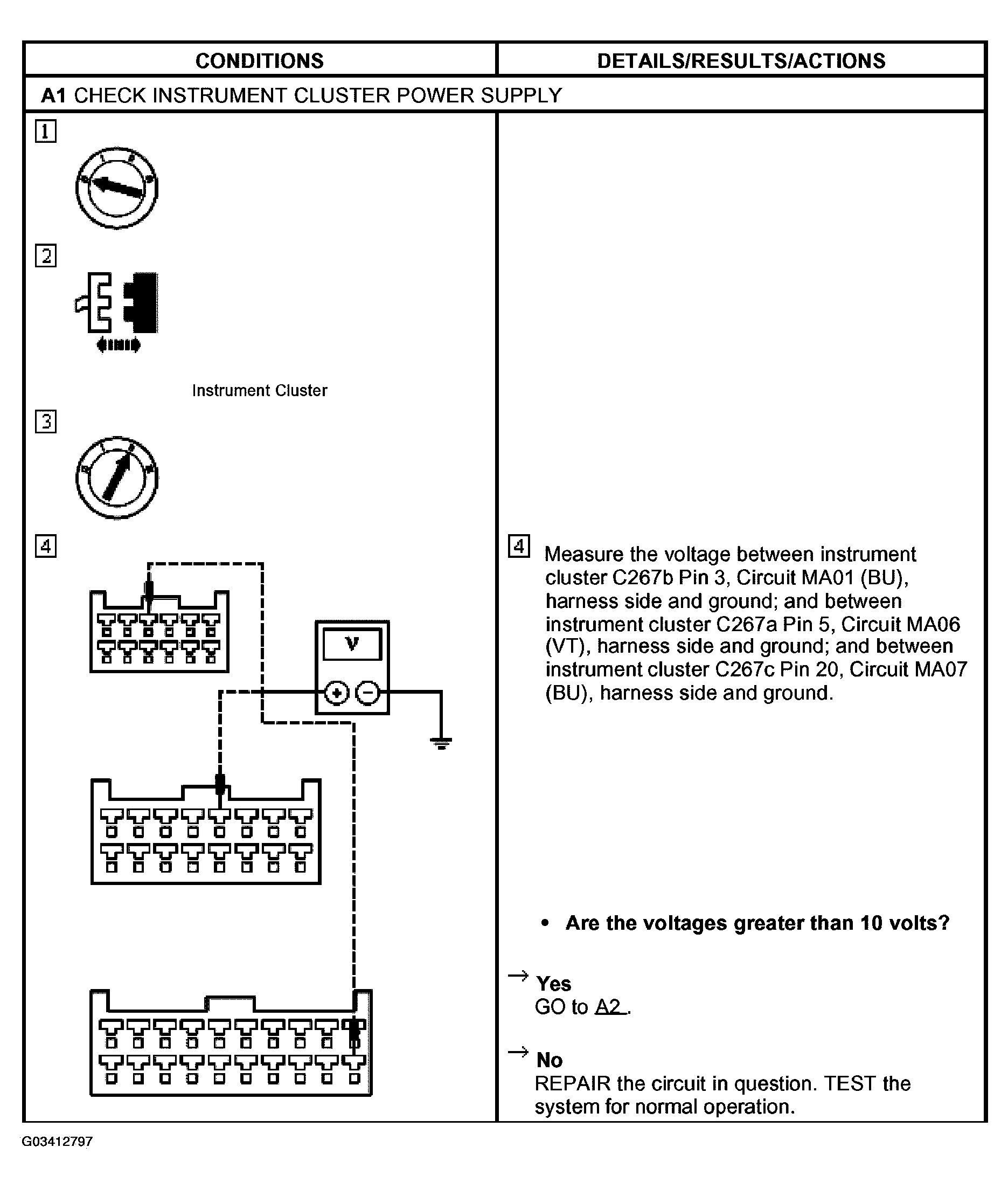

Fig 1: Pinpoint Test A: Instrument Cluster Is Inoperative (A1)
G03412797Courtesy of FORD MOTOR CO.

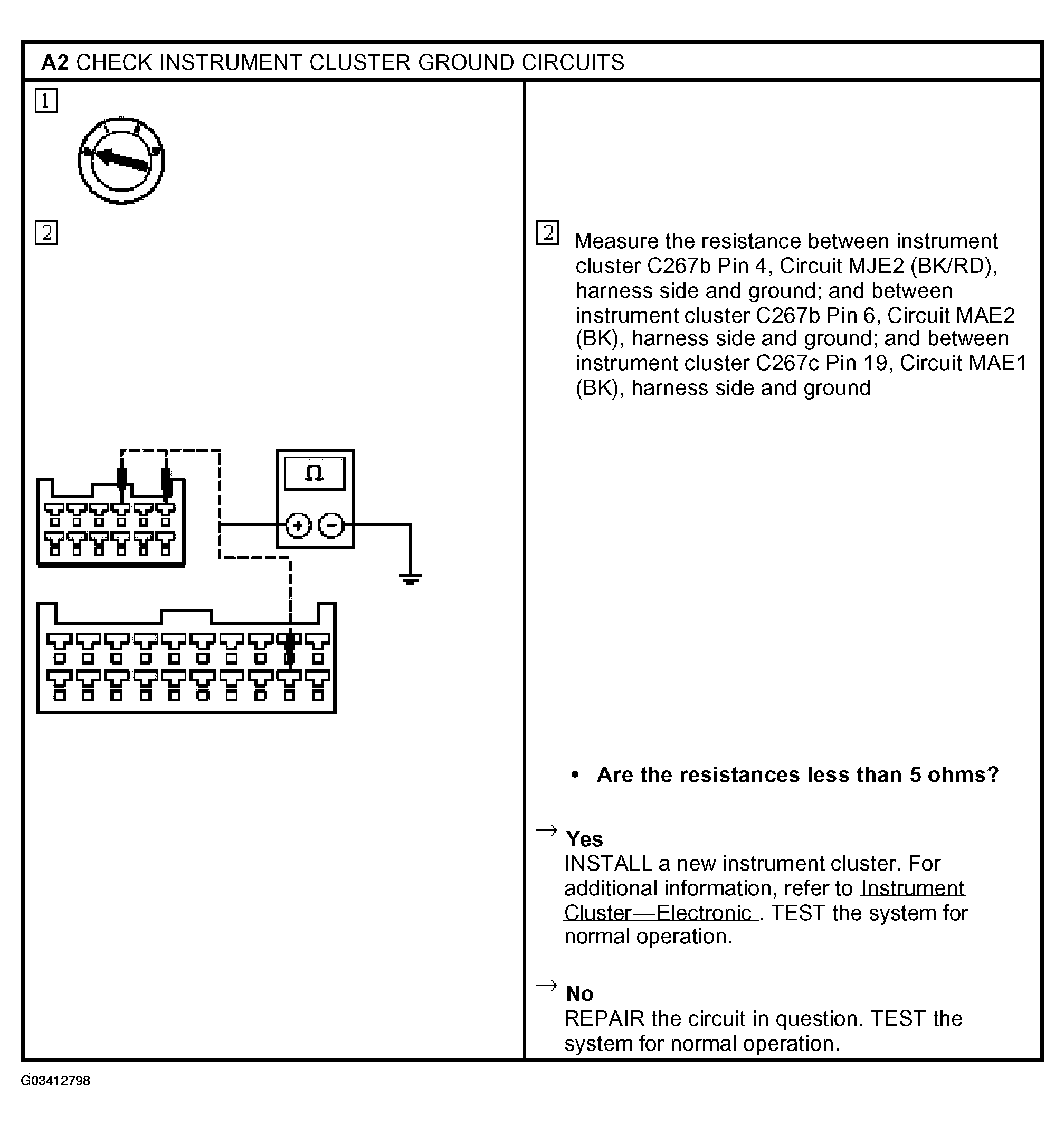

Fig 2: Pinpoint Test A: Instrument Cluster Is Inoperative (A2)
G03412798Courtesy of FORD MOTOR CO.
