Radiator Grille: Removal

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws.

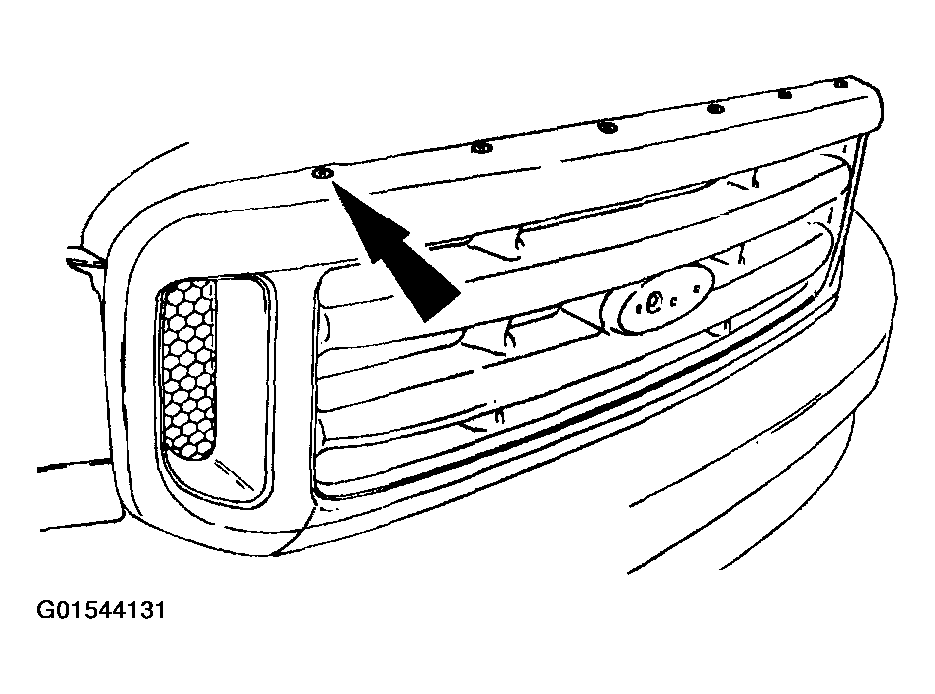

    Fig 1: Removing Screws
    G01544131Courtesy of FORD MOTOR CO.
  2. Release the lower retainers.
    Fig 2: Releasing Lower Retainers
    G01544132Courtesy of FORD MOTOR CO.
  3. Remove the radiator grille (8200).
