Removal & Installation

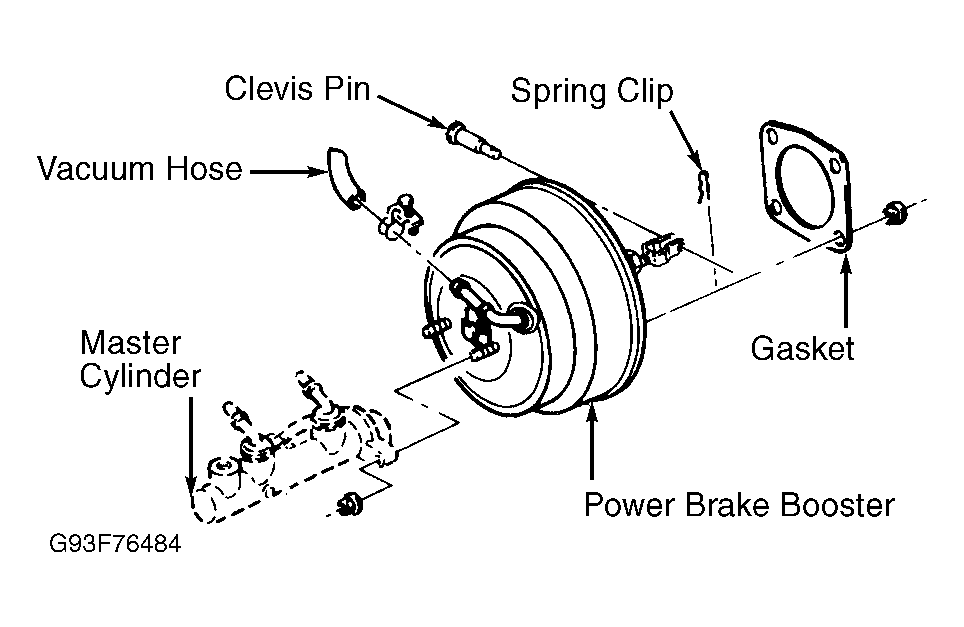

Remove master cylinder. See MASTER CYLINDER . Remove vacuum hose from power brake booster. Remove brake pedal spring clip. Remove clevis pin. Remove 4 power brake booster nuts. Remove power brake booster. See Fig 1 . To install, reverse removal procedure.
