Coolant Temperature Gauge

Gauge displays coolant temperature. Coolant temperature gauge is calibrated by segments. Each segment has a specific temperature value. See Fig 1.

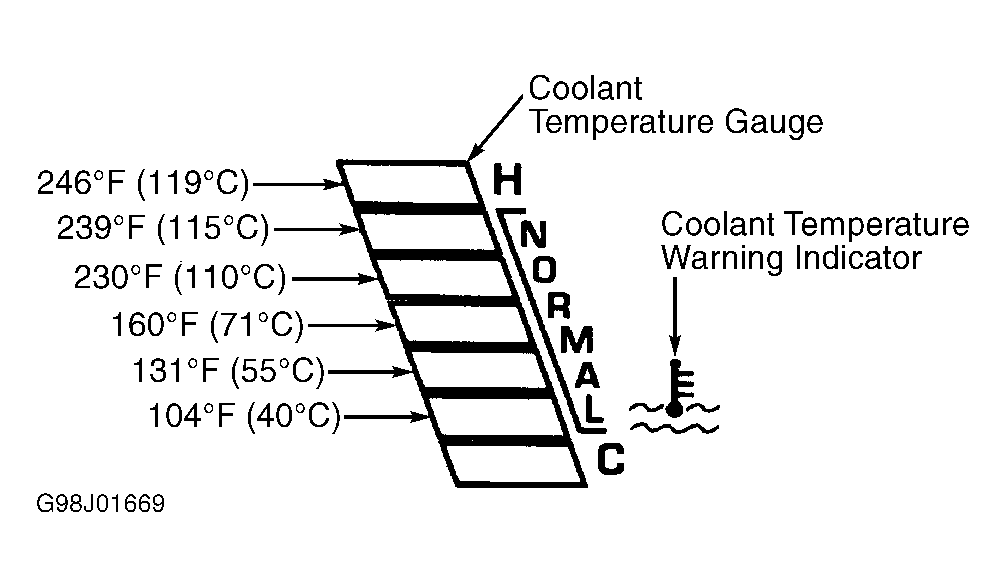

Fig 1: Identifying Coolant Temperature Gauge Calibration

Courtesy of FORD MOTOR CO.
