Removal & Installation

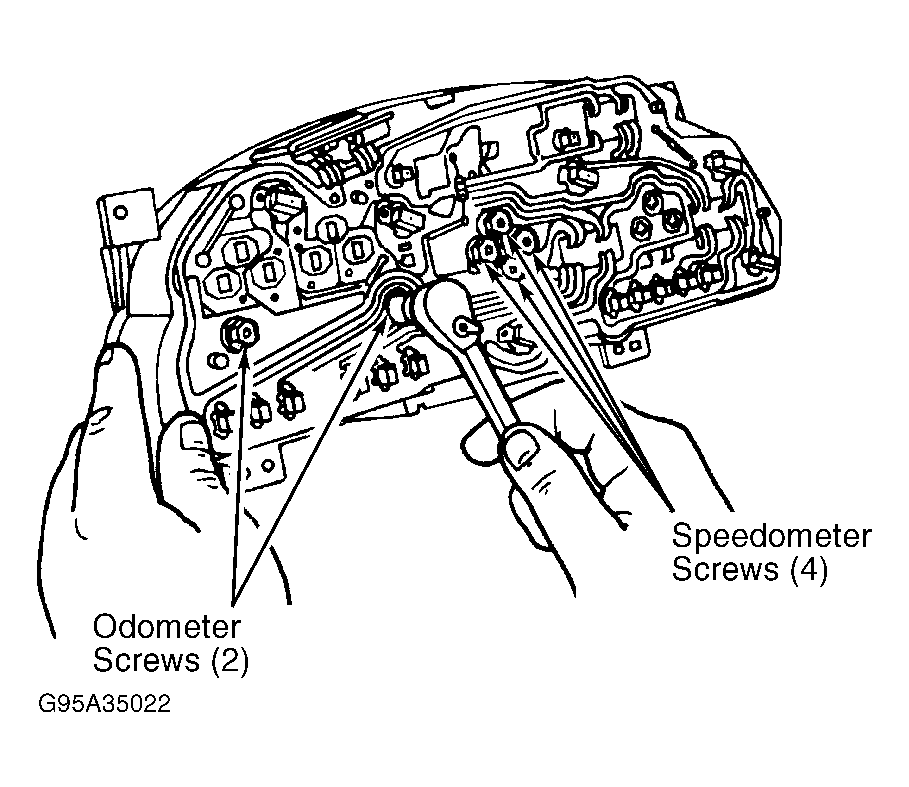

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  . Remove 4 speedometer and 2 odometer screws. See Figure .
  2. Remove the 7 instrument cluster main lens screws and instrument cluster main lens. Remove instrument cluster mask.
  3. Remove speedometer/odometer assembly. Disconnect odometer electrical connector. For installation, reverse removal procedure.
