Wiring Diagrams

Fig 1: Diode Junction Box Connector View

Courtesy of FORD MOTOR CO.

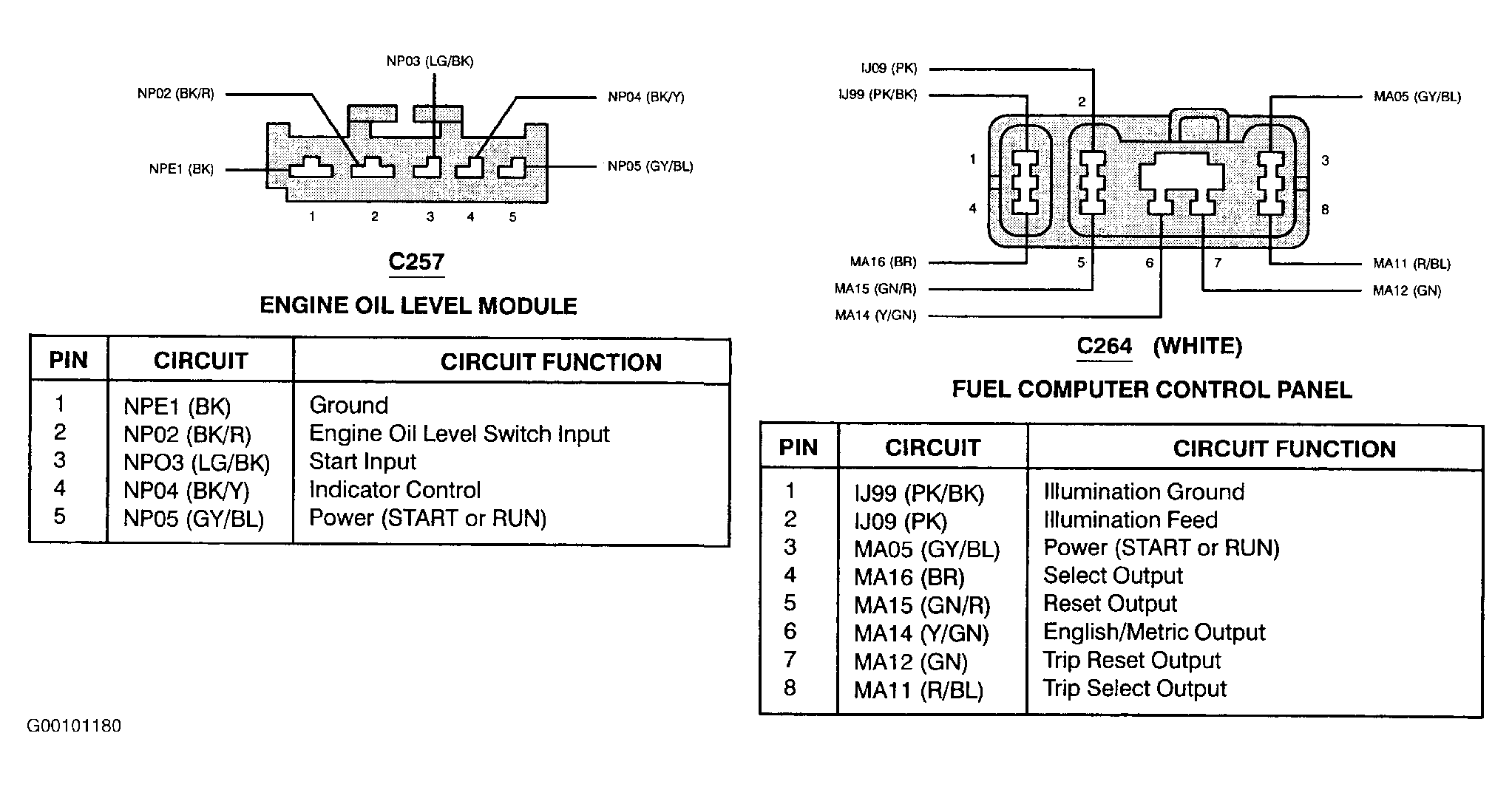

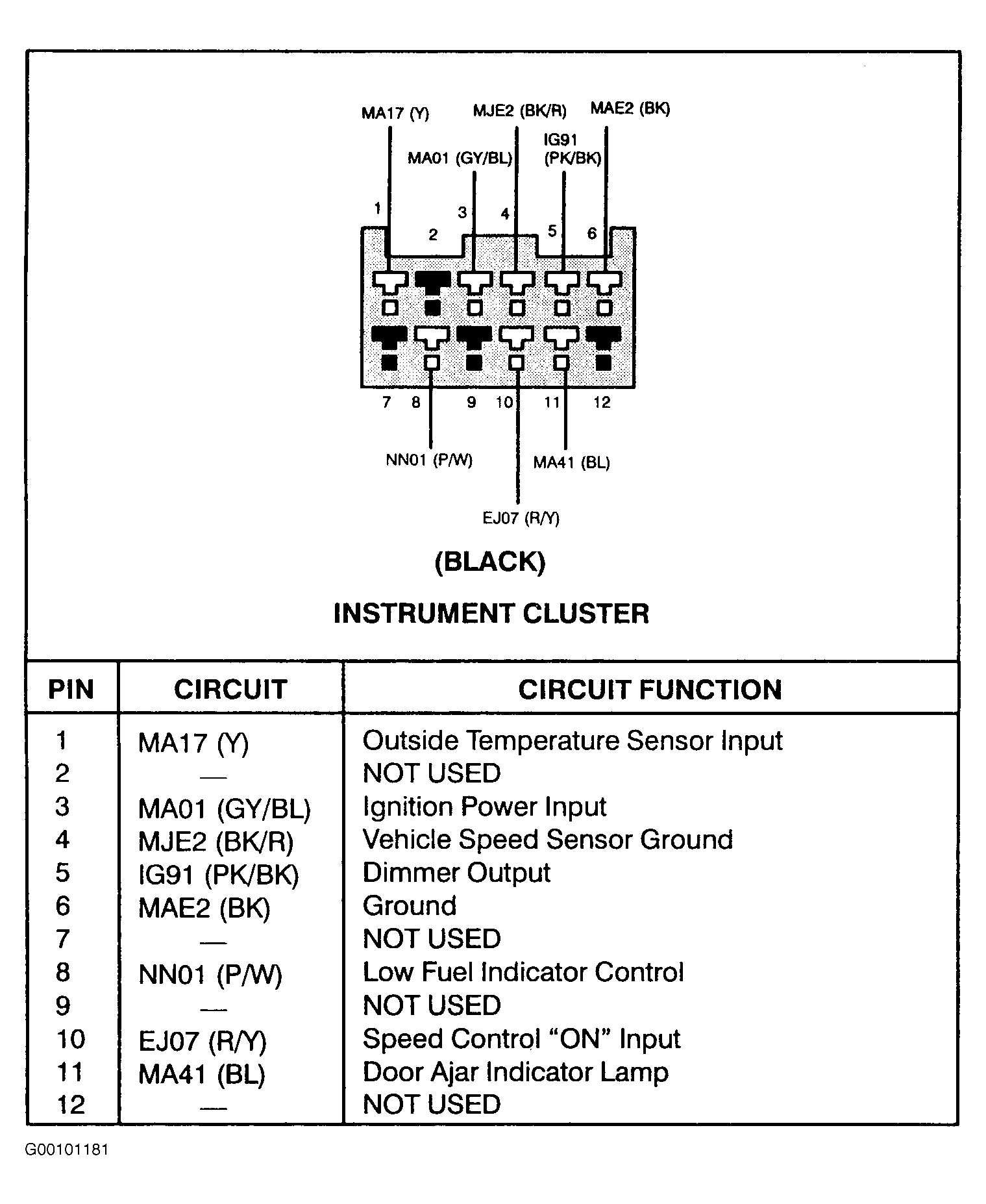

Fig 2: Electronic Instrument Cluster Connector View (1 of 3)

Courtesy of FORD MOTOR CO.

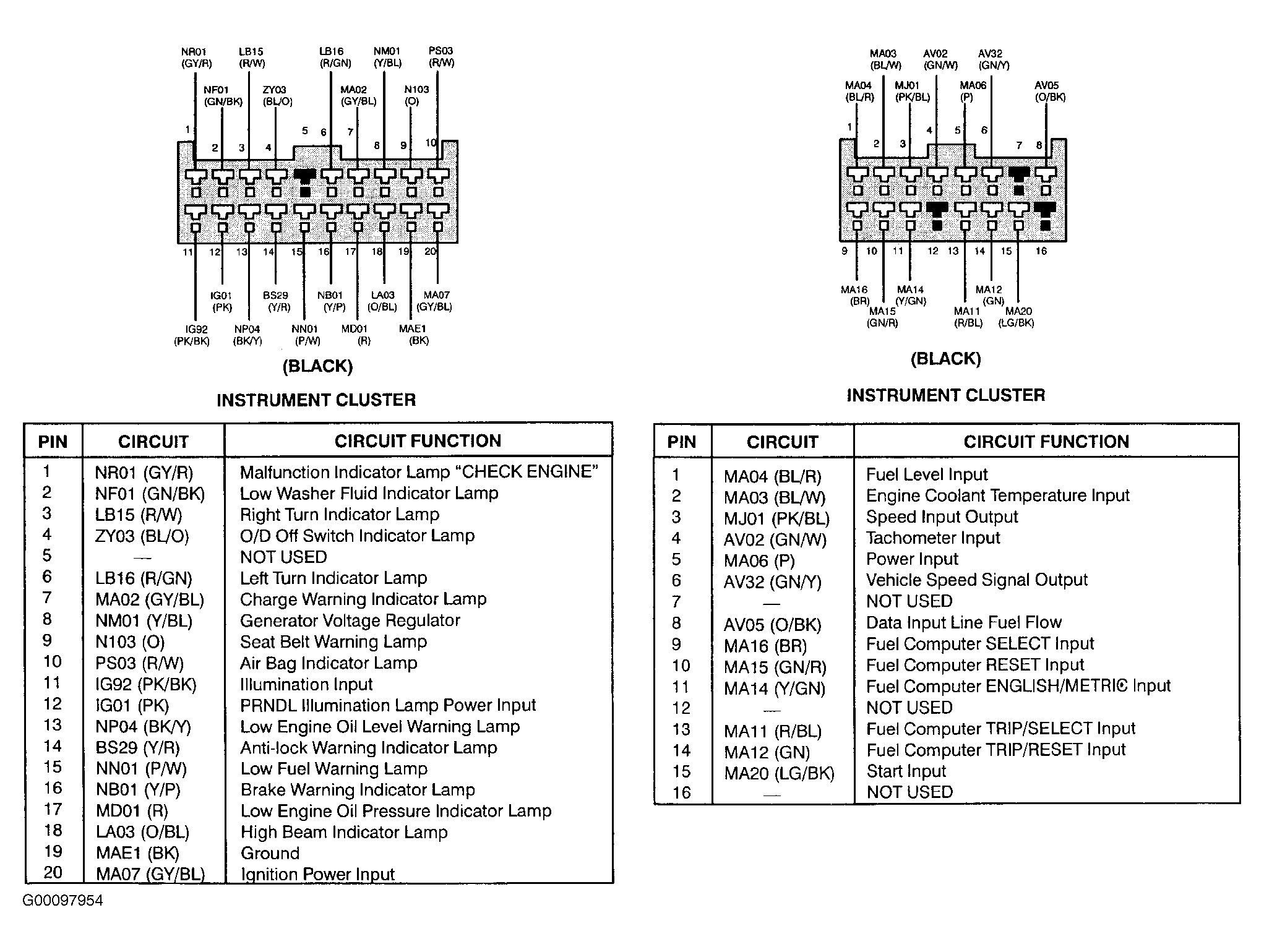

Fig 3: Electronic Instrument Cluster Connector View (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 4: Electronic Instrument Cluster Connector View (3 Of 3)

Courtesy of FORD MOTOR CO.

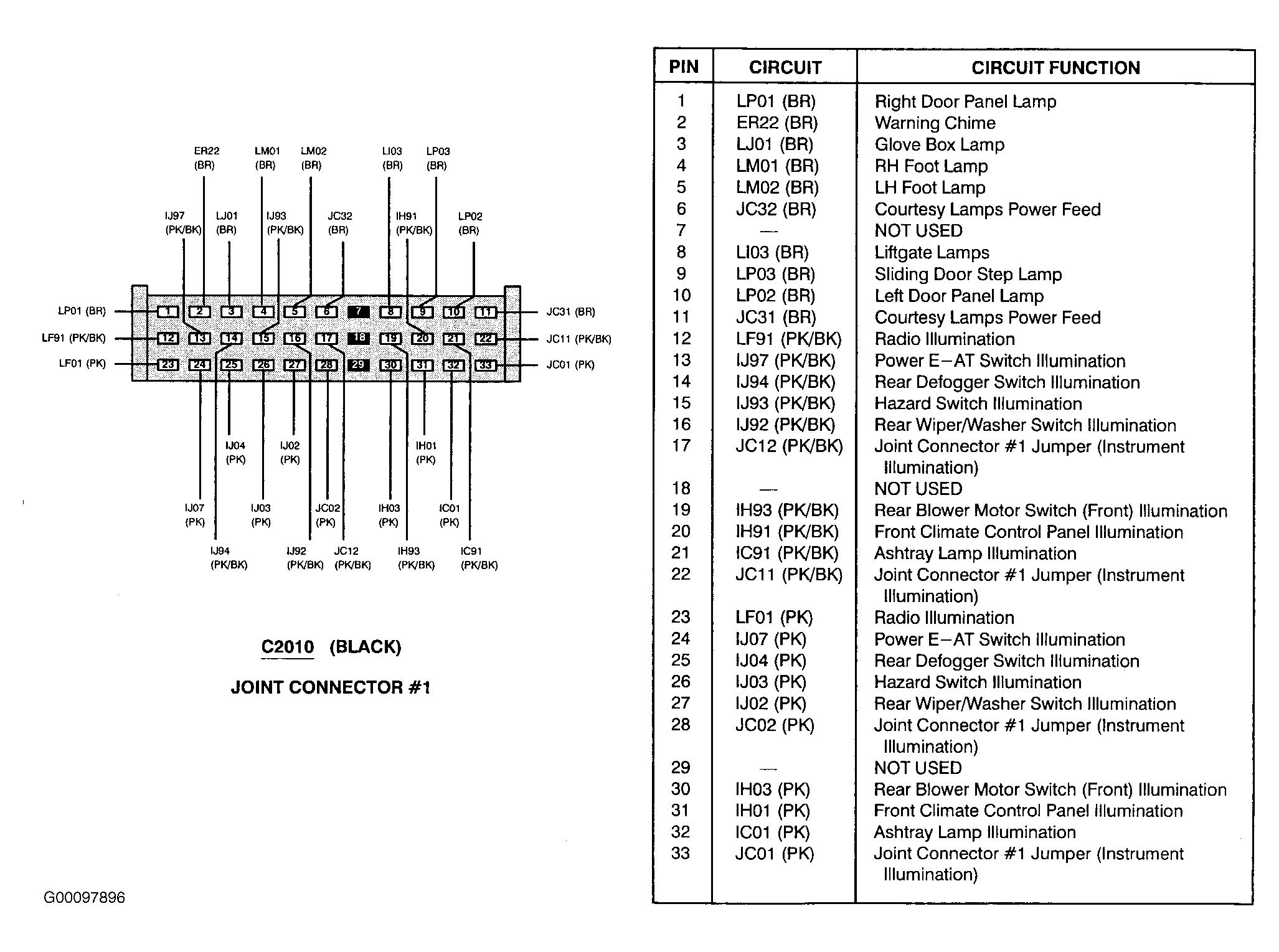

Fig 5: Joint Connector Pin Identification

Courtesy of FORD MOTOR CO.

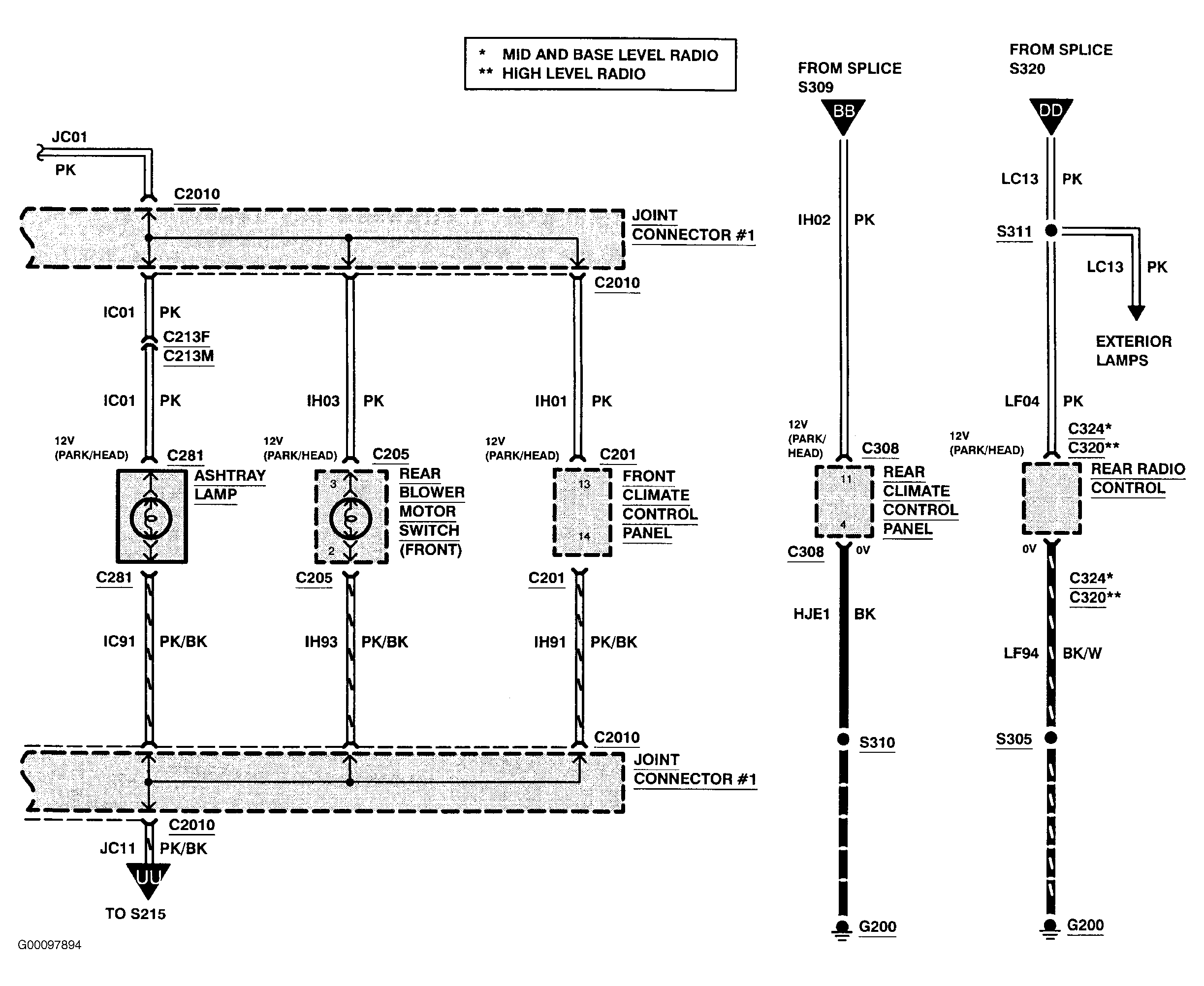

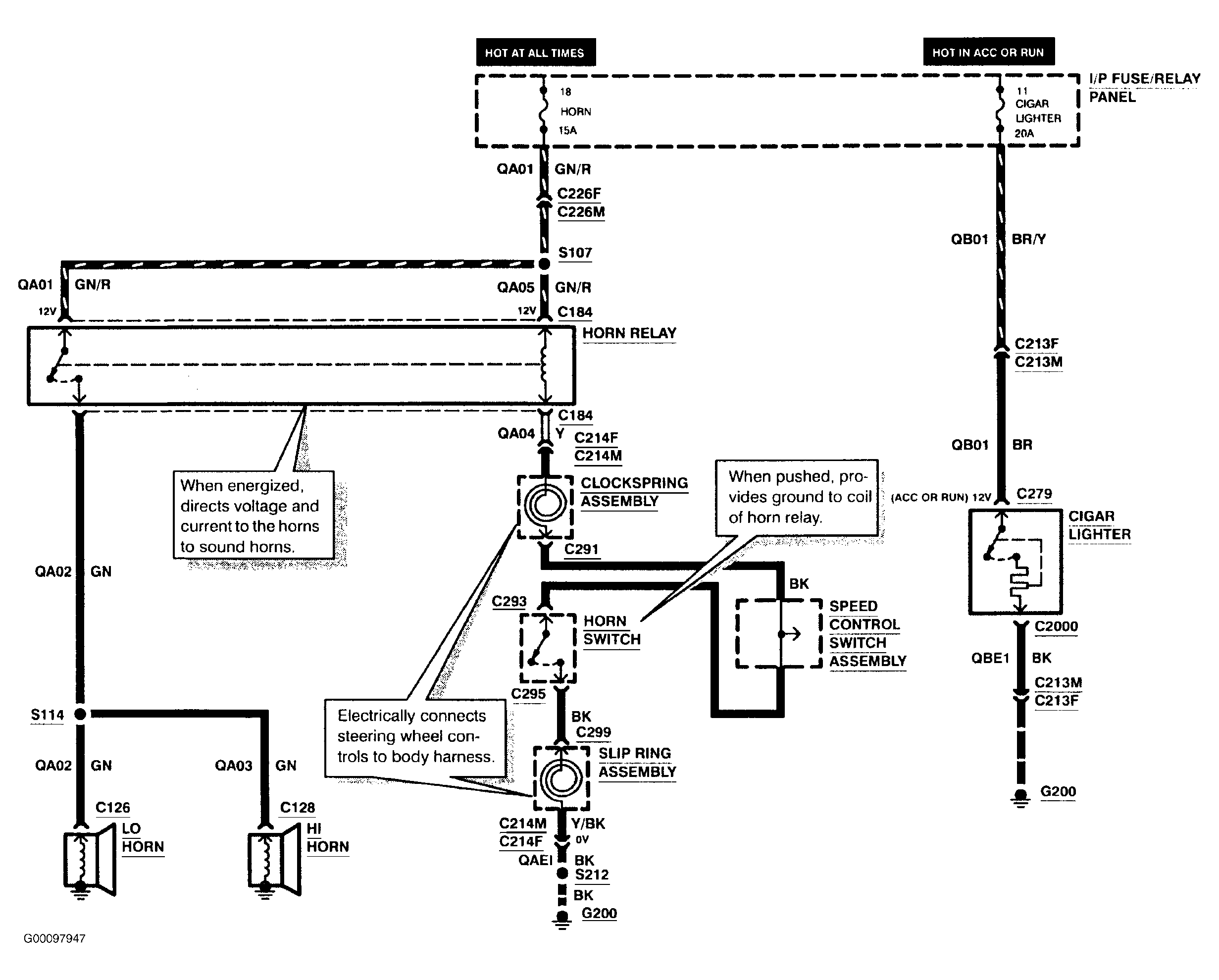

Fig 6: Cigar Lighter System Wiring Diagram

Courtesy of FORD MOTOR CO.

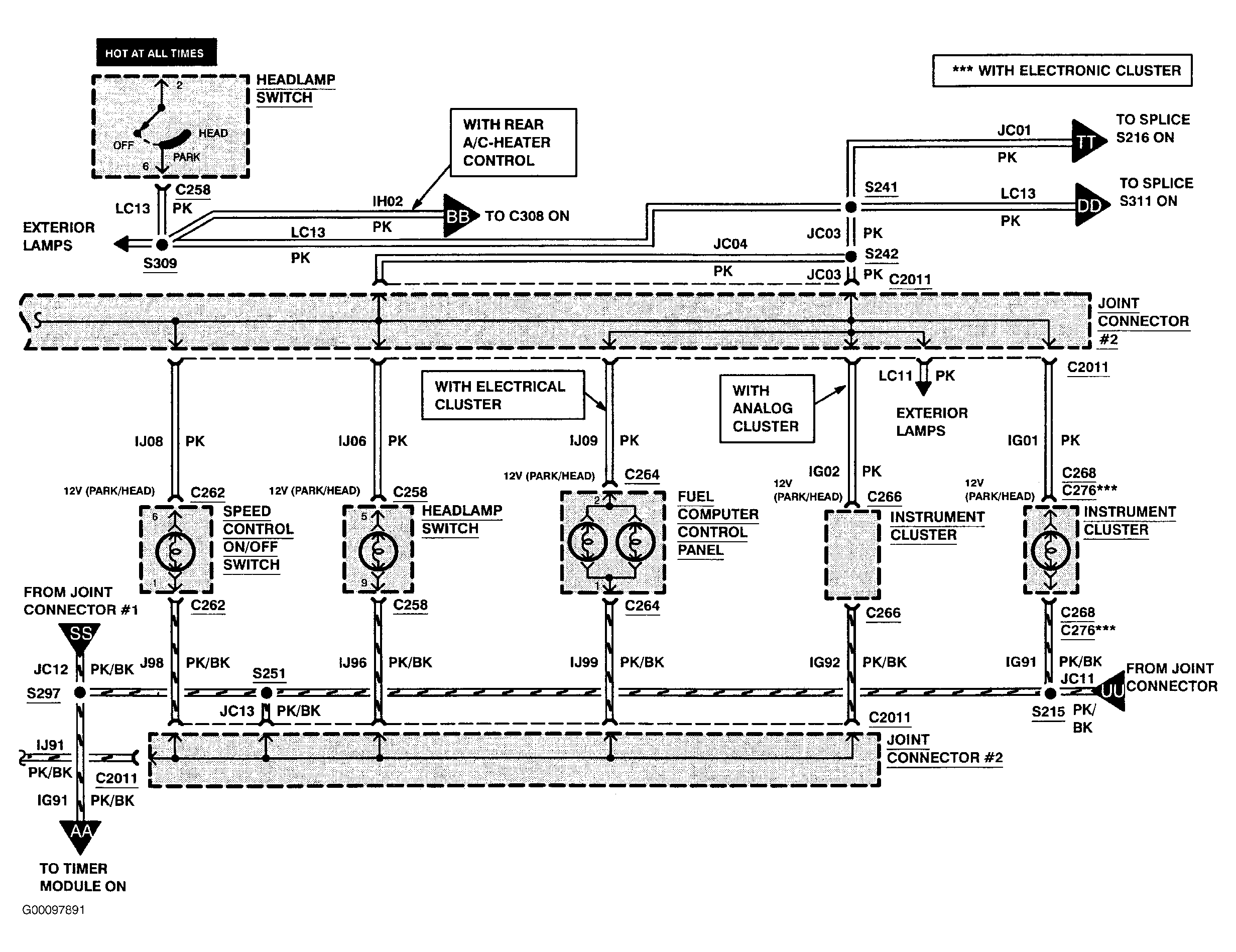

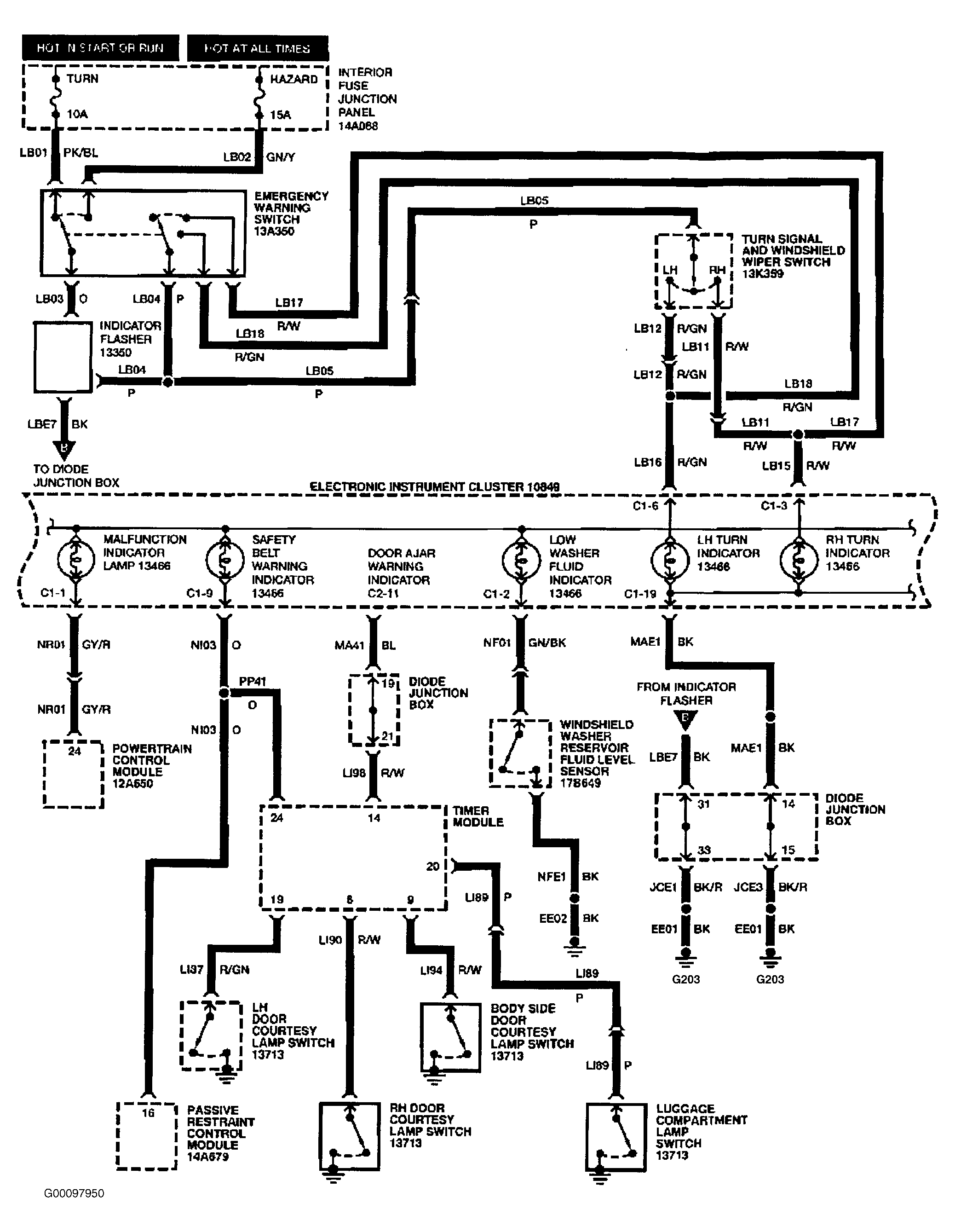

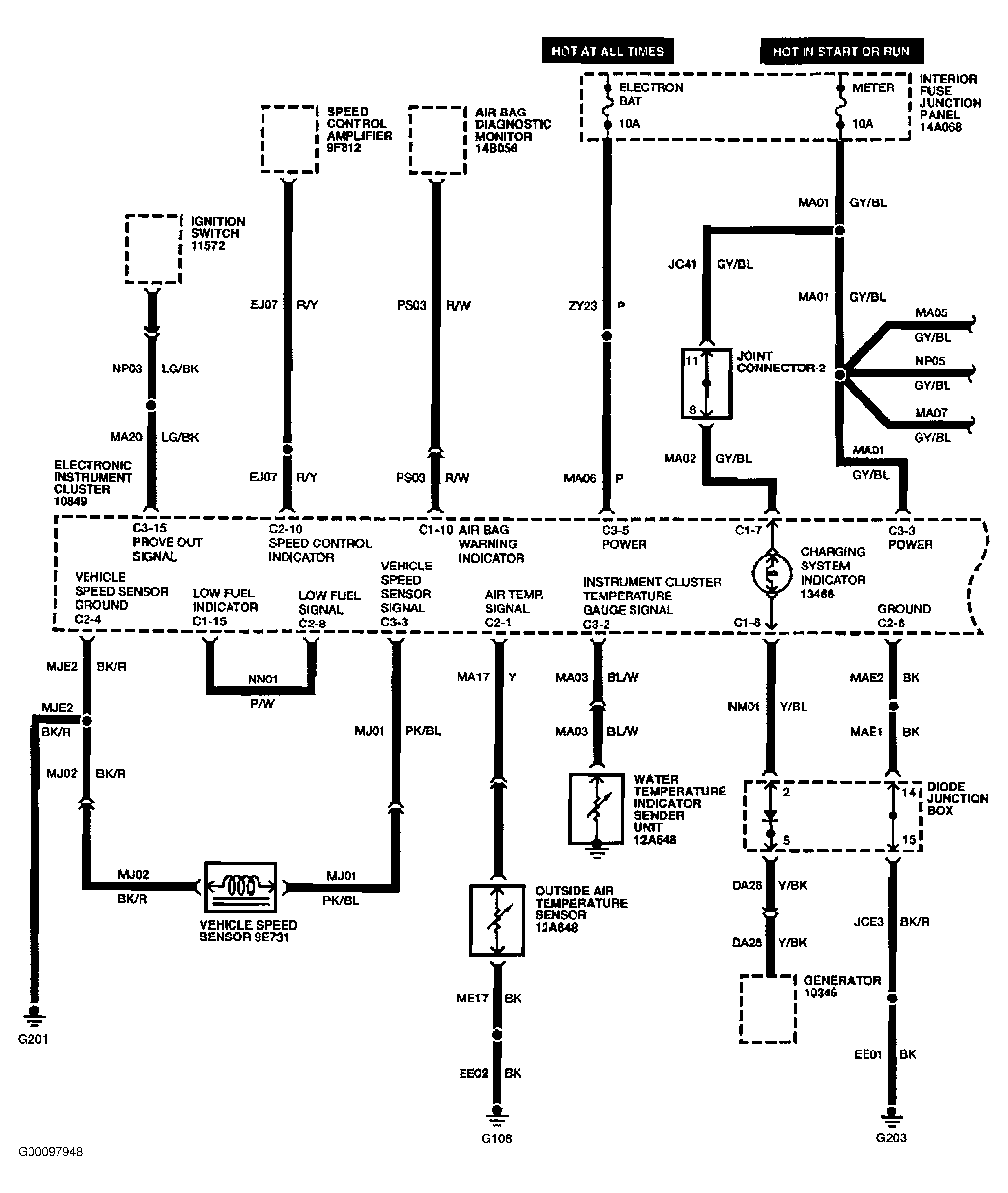

Fig 7: Electronic Instrument Cluster Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR CO.

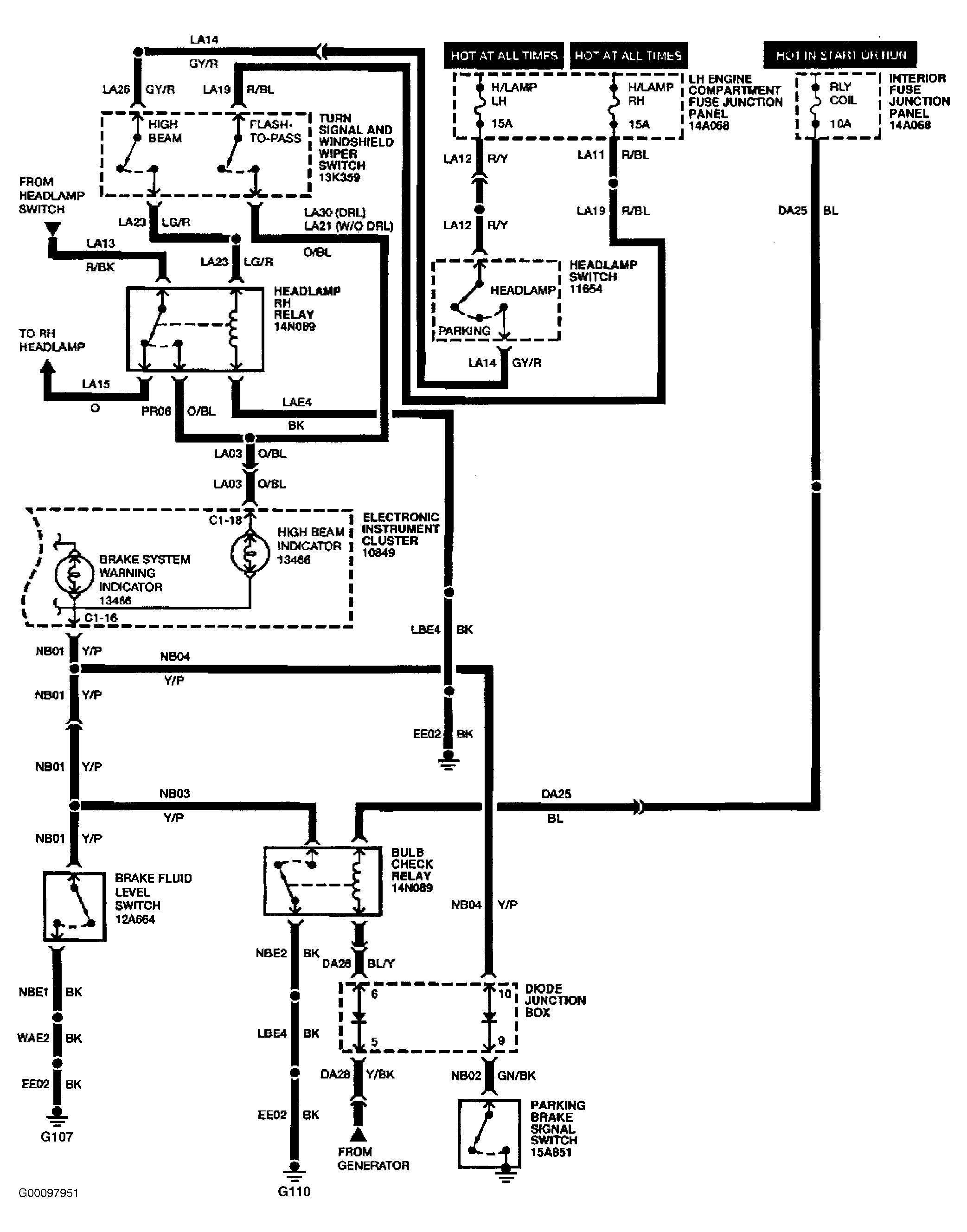

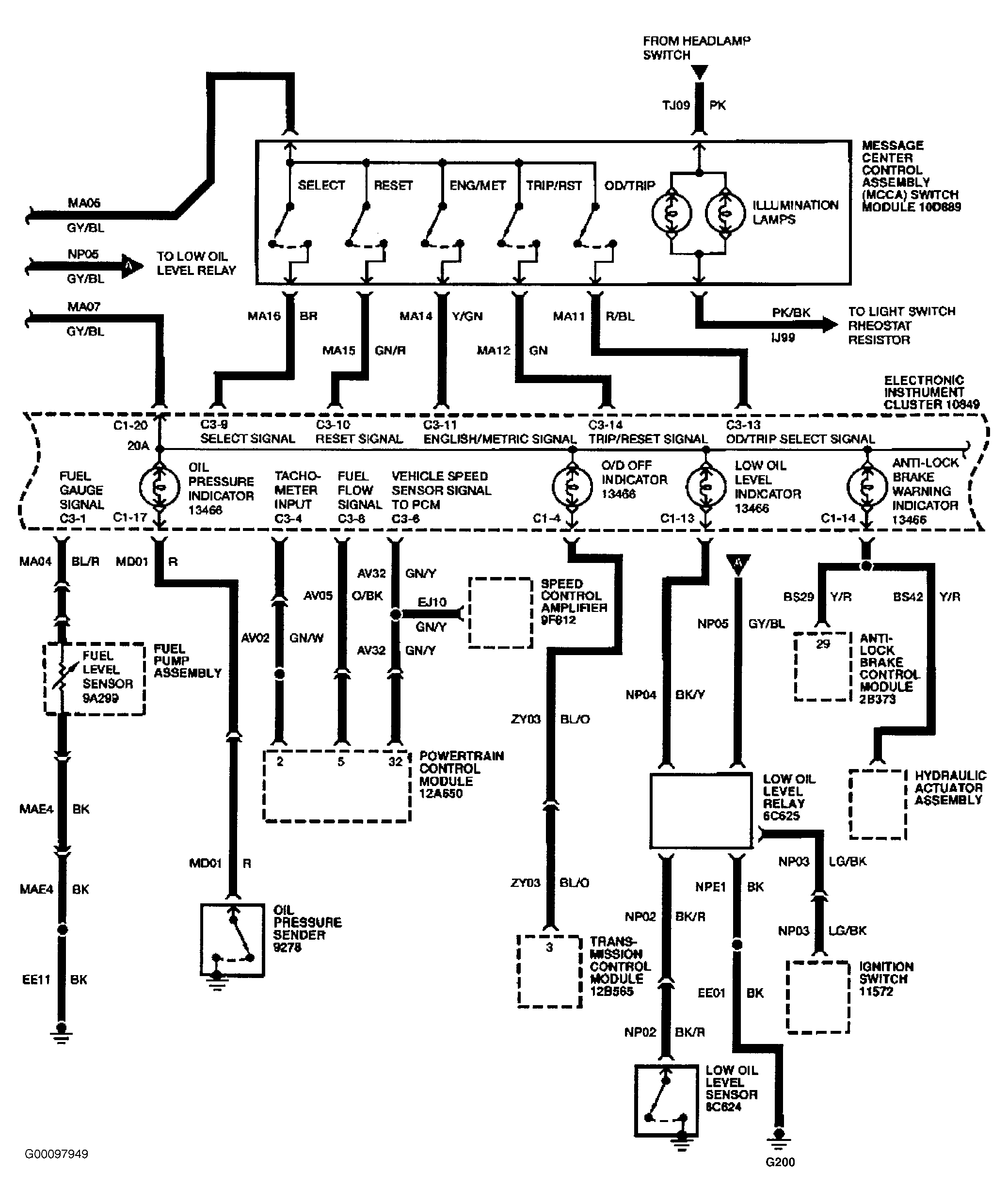

Fig 8: Electronic Instrument Cluster Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR CO.

Fig 9: Electronic Instrument Cluster Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR CO.

Fig 10: Electronic Instrument Cluster Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR CO.

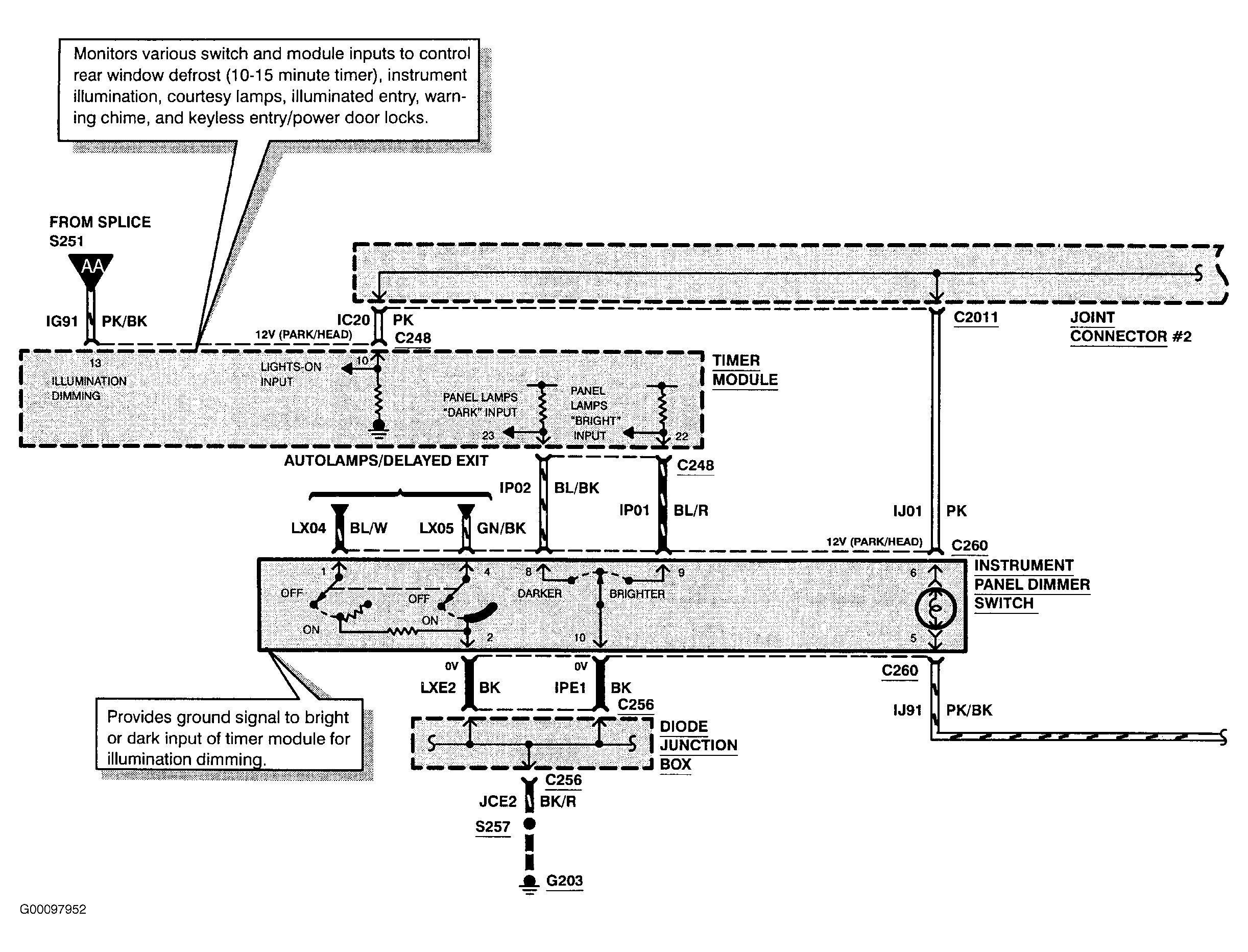

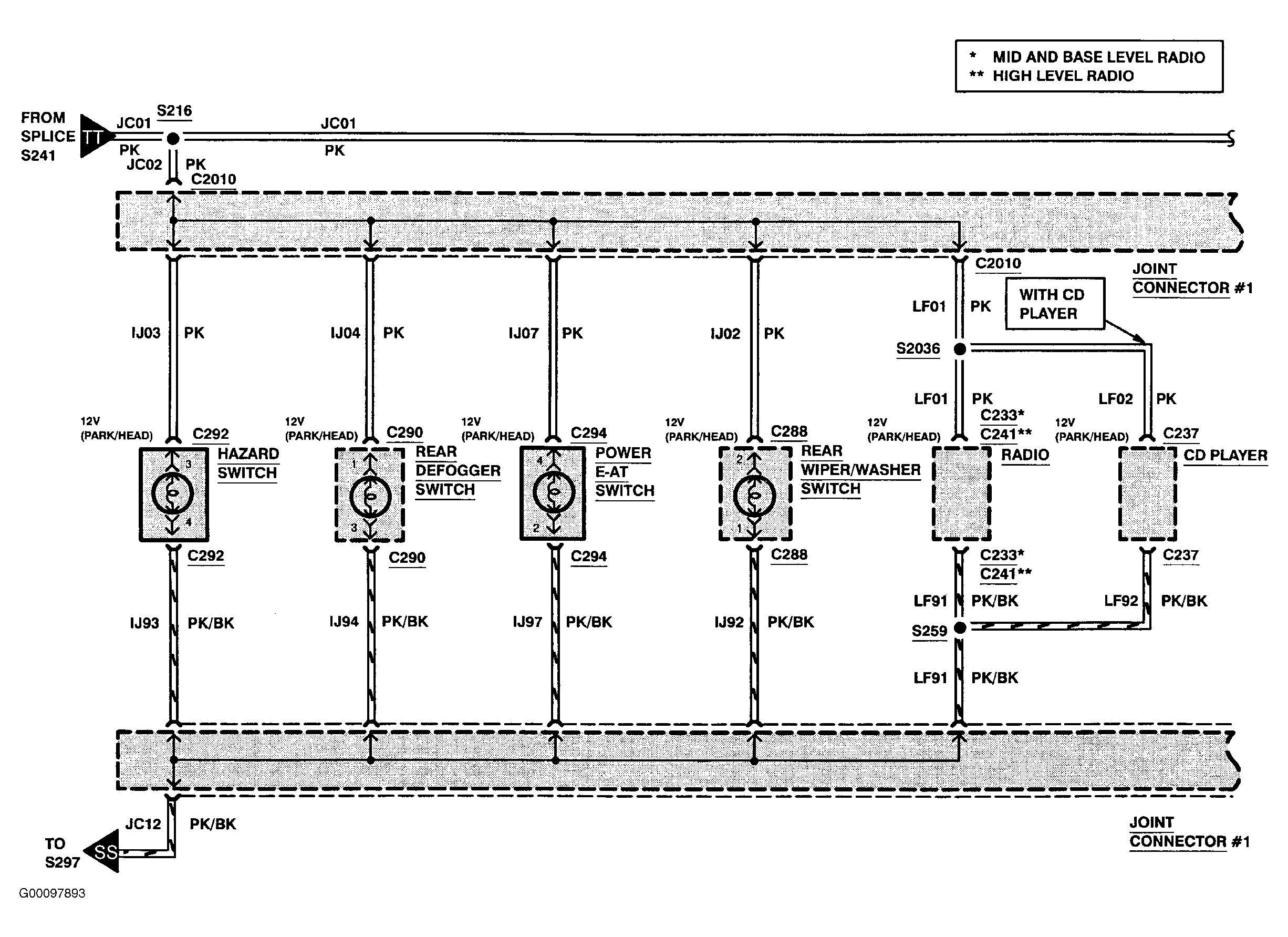

Fig 11: Instrument Cluster Illumination Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR CO.

Fig 12: Instrument Cluster Illumination Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR CO.

Fig 13: Instrument Cluster Illumination Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR CO.

Fig 14: Instrument Cluster Illumination Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR CO.

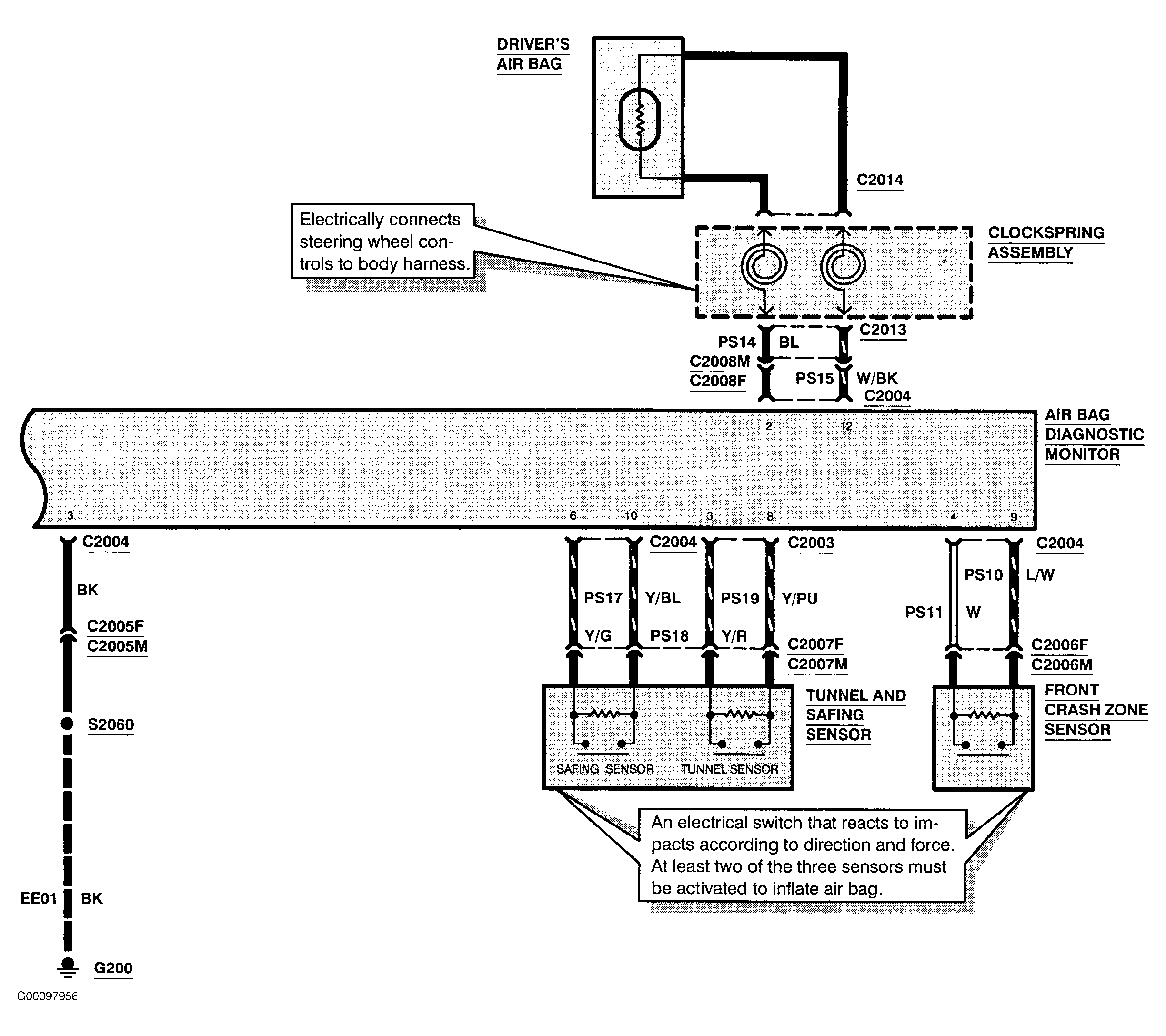

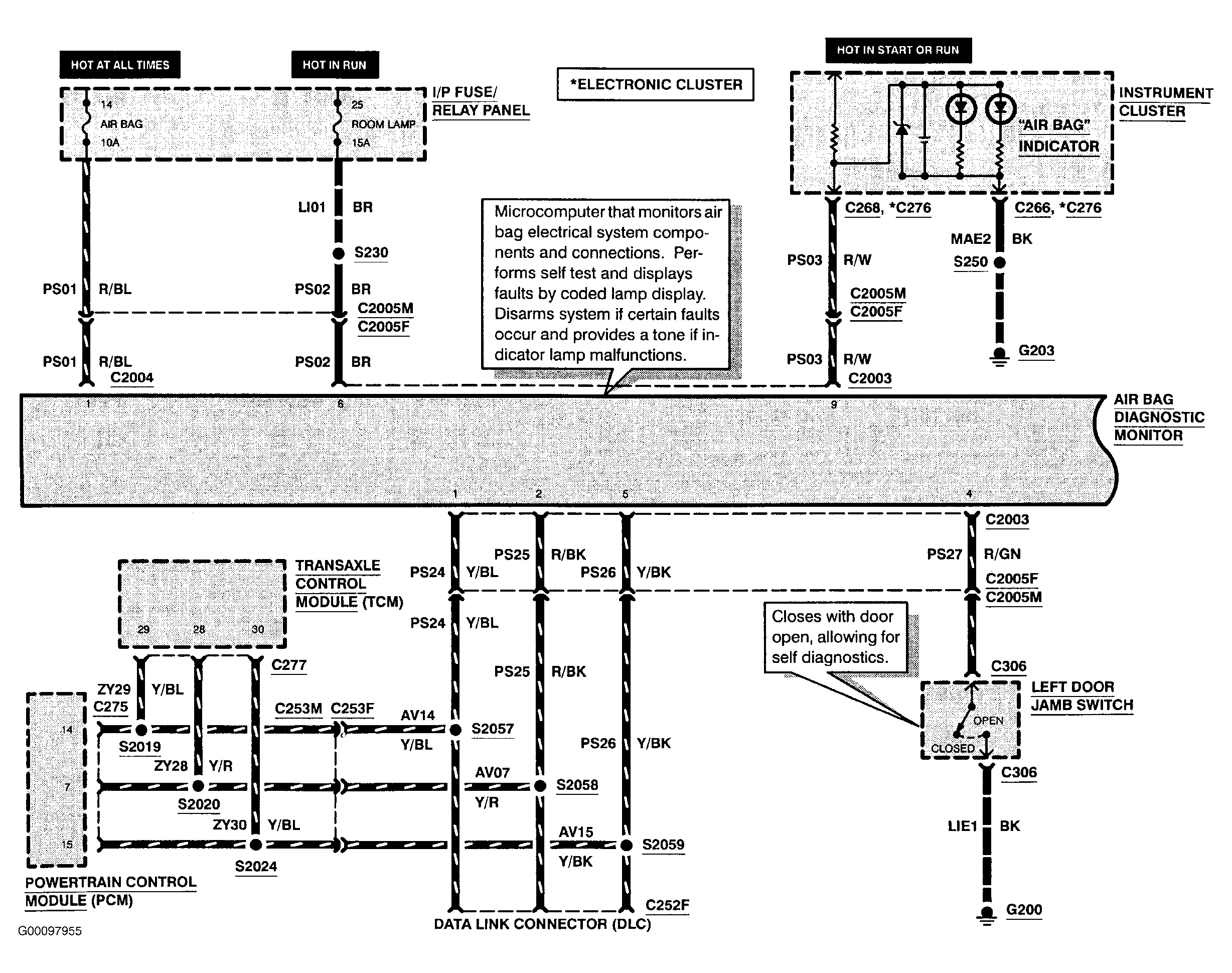

Fig 15: Air Bag System Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 16: Air Bag System Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.

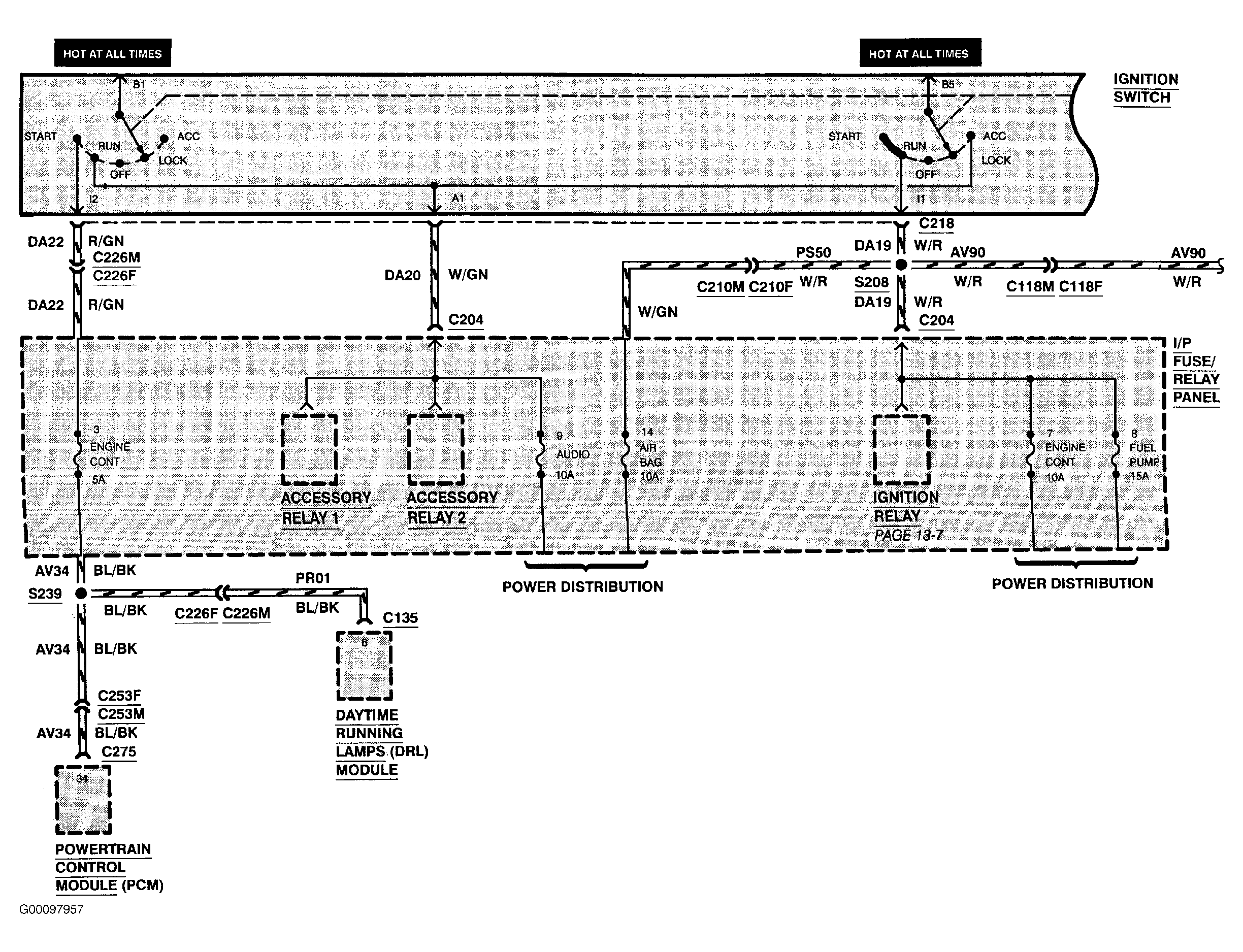

Fig 17: Ignition Switch Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

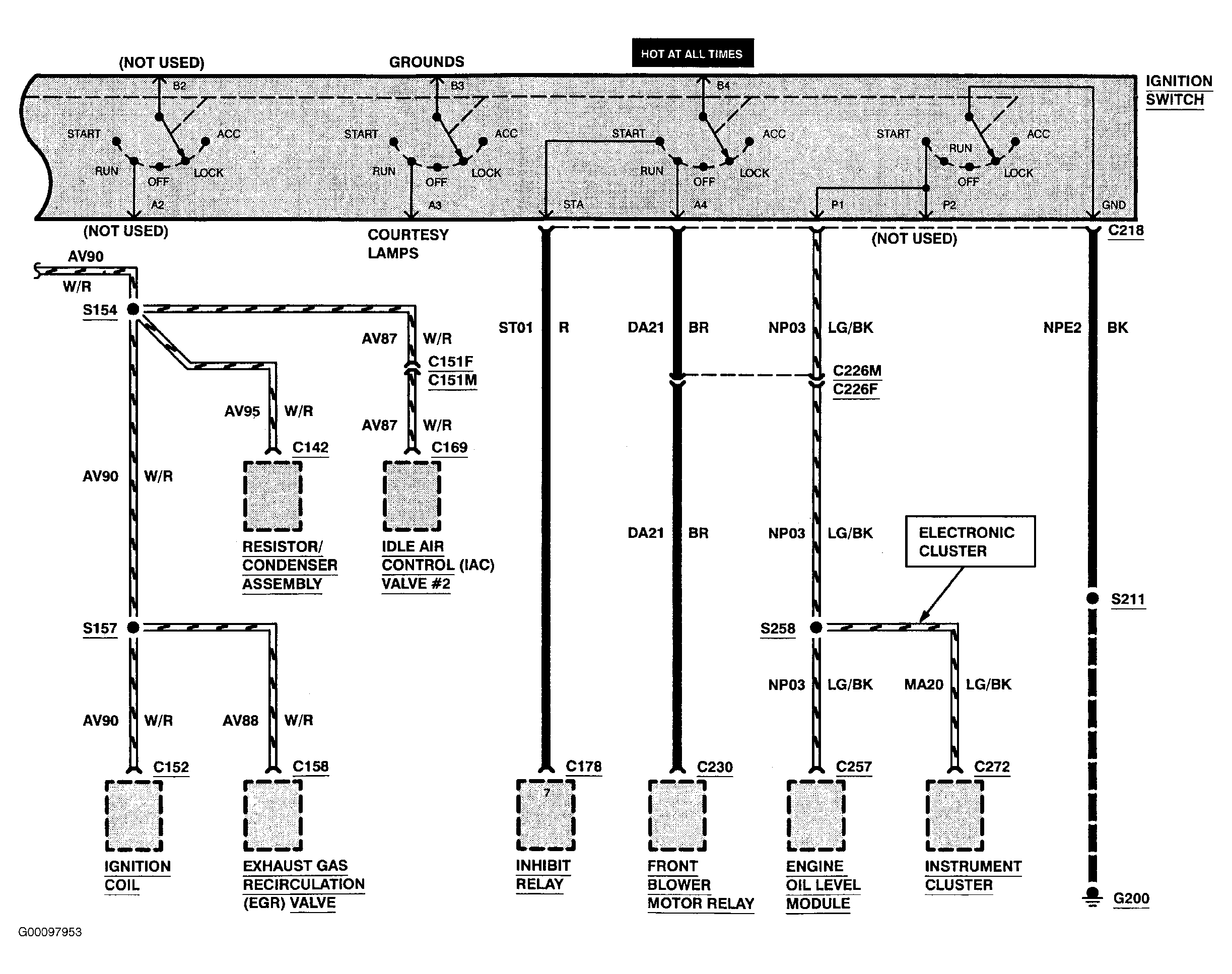

Fig 18: Ignition Switch Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
