Wiring Diagrams

Fig 1: Analog Instrument Panel Wiring Diagram (1 Of 2)

Fig 2: Analog Instrument Panel Wiring Diagram (2 Of 2)

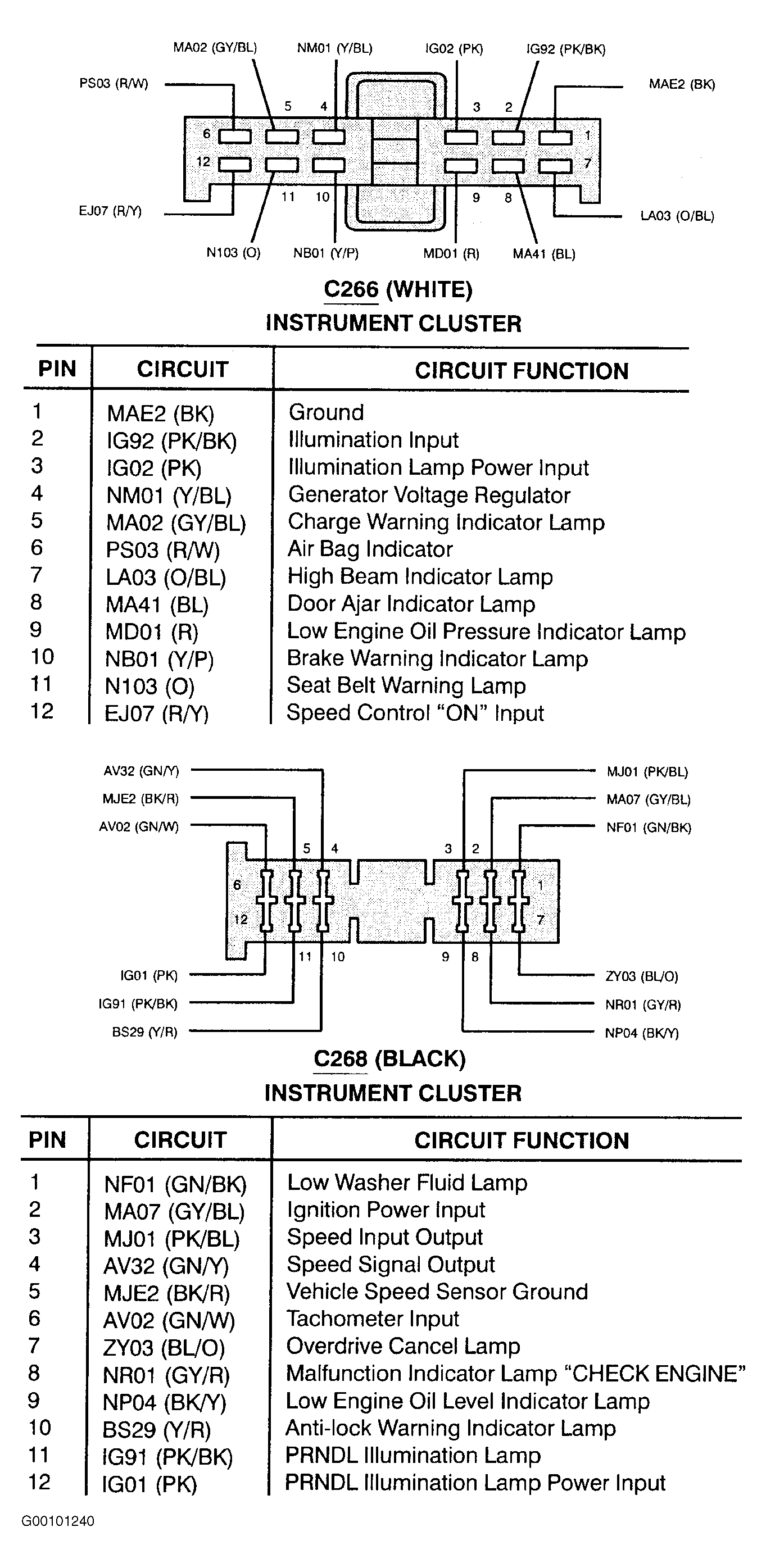

Fig 3: Instrument Cluster Connector Identification (1 Of 2)

Courtesy of FORD MOTOR CO.

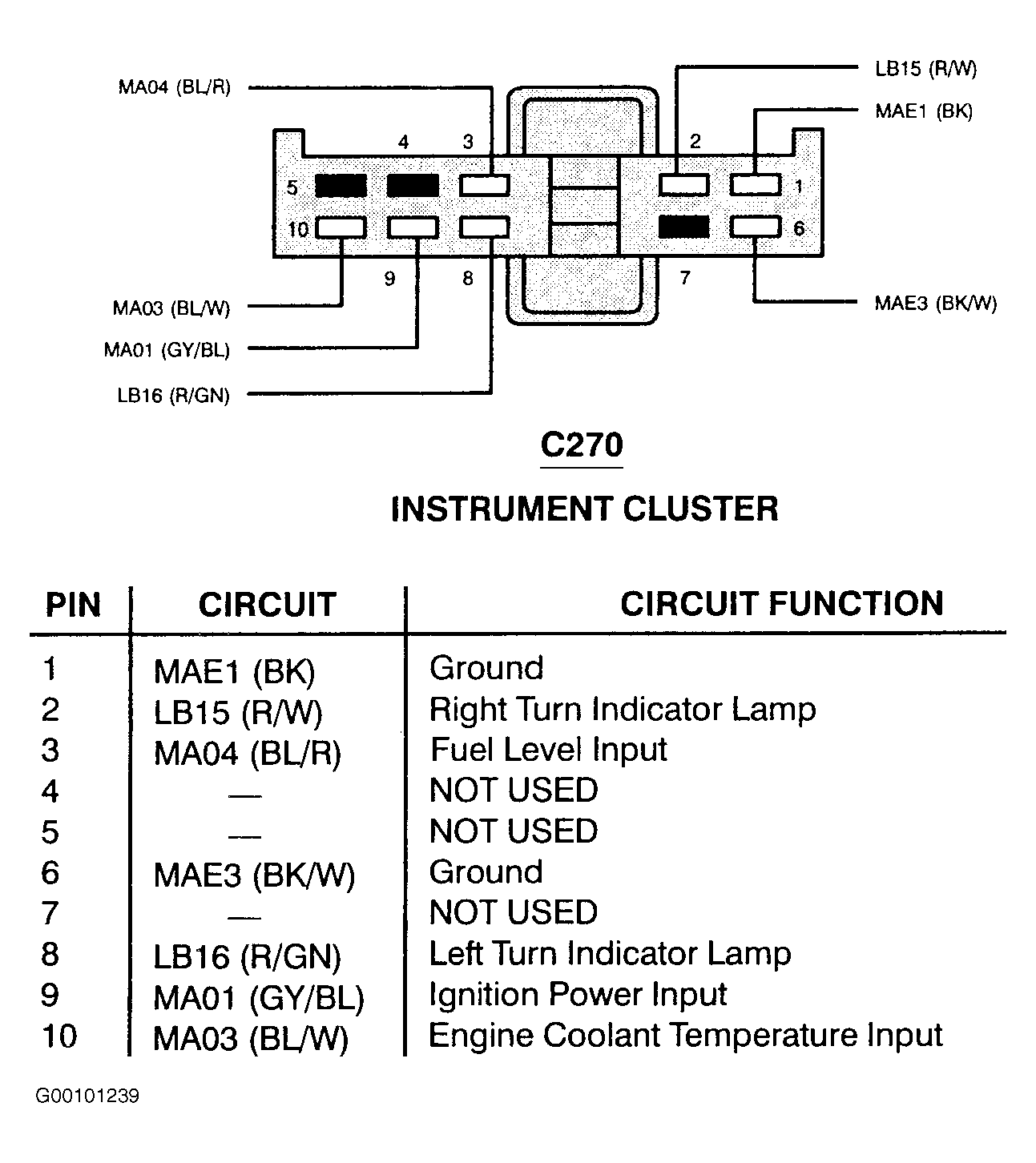

Fig 4: Instrument Cluster Connector Identification (2 Of 2)

Courtesy of FORD MOTOR CO.

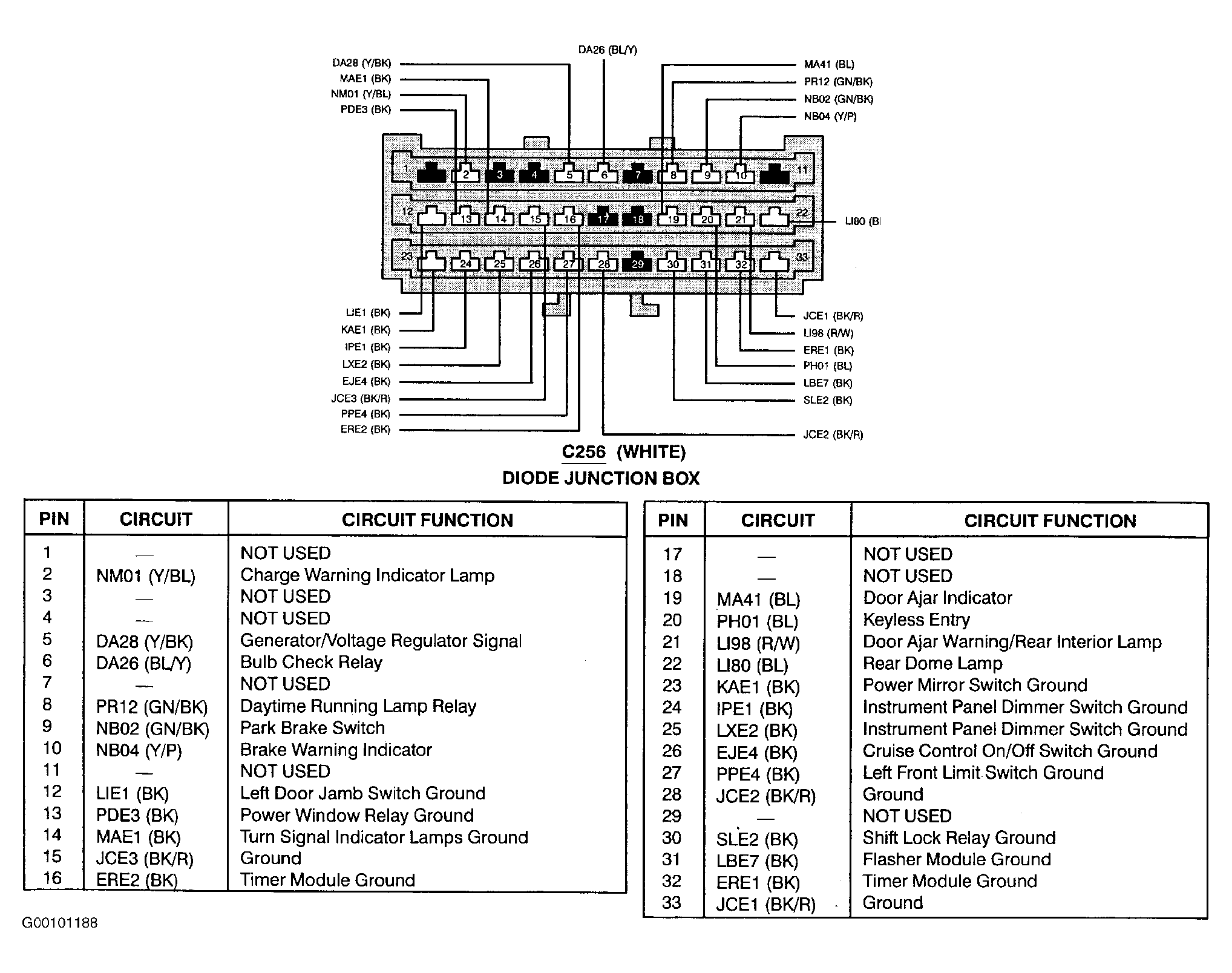

Fig 5: Diode Junction Box Connector View

Courtesy of FORD MOTOR CO.

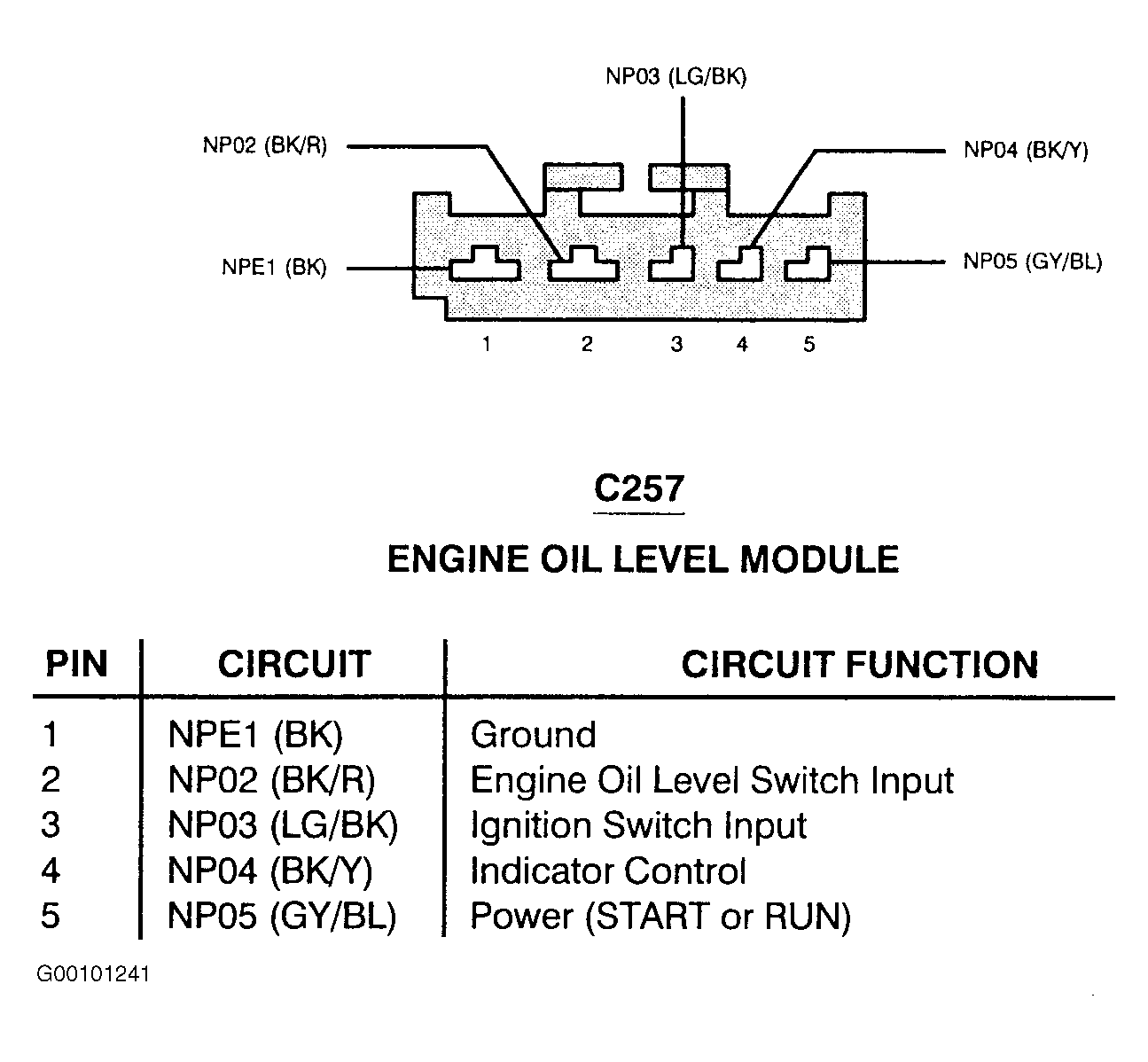

Fig 6: Engine Oil Level Module Connector Identification

Courtesy of FORD MOTOR CO.
