Component Locations

COMPONENT LOCATIONS

Component

Location

Bulb Check Relay

In Engine Compartment, In LH Relay Block. See Fig 2 & Fig 3 .

Coolant Temperature Sensor ⁽¹⁾

Right Side Of Engine, On Water Outlet Connection Pipe. See Fig 4 .

Engine Oil Level Module

Behind Upper Left Side of I/P. See Fig 1 .

Engine Oil Level Switch

Lower Right Front Of Engine. See Fig 4 .

Engine Oil Pressure Switch

Lower Left Front Of Engine, Near Oil Filter. See Fig 4 .

Ground G107

In Engine Compartment, On Right Fender Apron. See Fig 2 .

Ground G108

In Engine Compartment, Left Fender Apron. See Fig 4 .

Ground G110

In Engine Compartment, On Left Shock Tower. See Fig 4 .

Ground G200

Behind Left Side of I/P. See Fig 5 .

Ground G201

Behind Center Console. See Fig 6 .

Ground G203

Behind Right Side of I/P. See Fig 5 .

Instrument Panel Fuse/Relay Panel

Behind Left Side Of Instrument Panel, Left Of Steering Column

Park Brake Switch

On Parking Brake Assembly

Powertrain Control Module (PCM)

Behind Top Right Side Of Instrument Panel, Behind Glove Box. See Fig 5 .

Timer Module

Behind Left Kick Panel. See Fig 5 .

Transaxle Control Module (TCM)

Behind Right Side Of Instrument Panel, Behind Glove Box. See Fig 5 .

Vehicle Speed Sensor (VSS)

Left Side Of Engine, On Rear Of Transaxle

⁽¹⁾	Coolant temperature sensor for gauge is NOT the same sensor used by PCM. Sensor may also be called a sending unit.

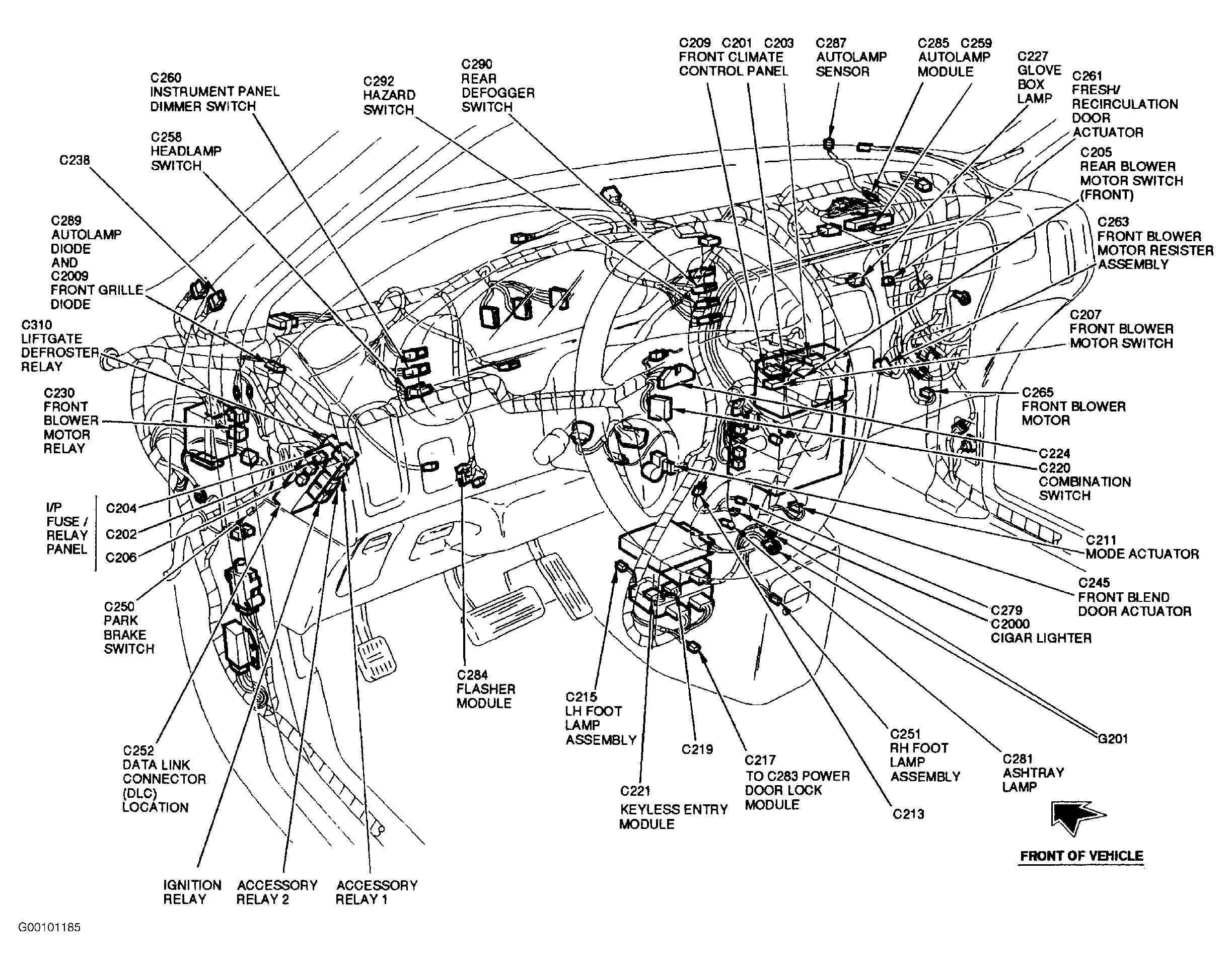

Fig 1: Locating Diode Junction Box & Engine Oil Level Module

Courtesy of FORD MOTOR CO.

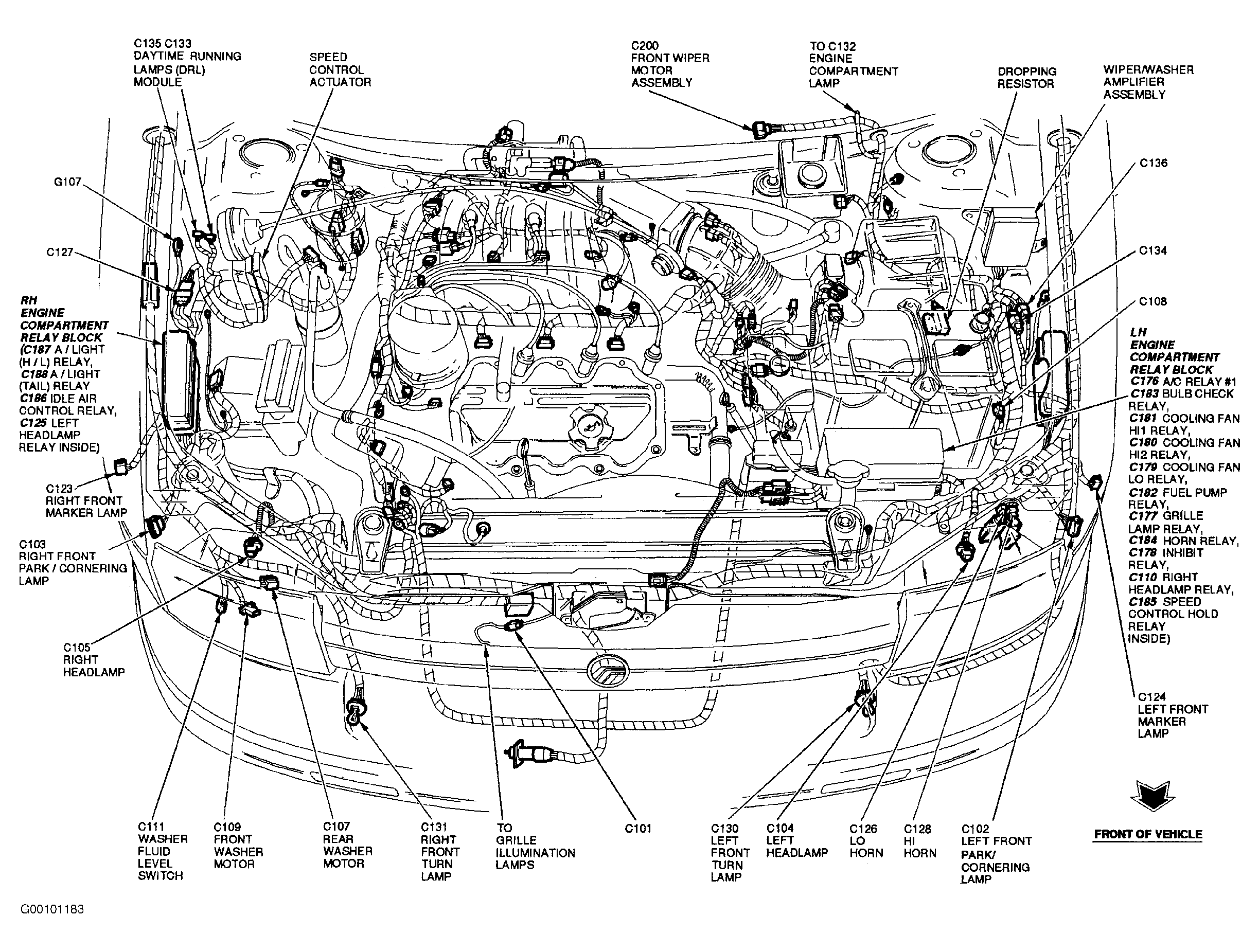

Fig 2: Locating Ground G107 & Left Hand Engine Compartment Relay Block

Courtesy of FORD MOTOR CO.

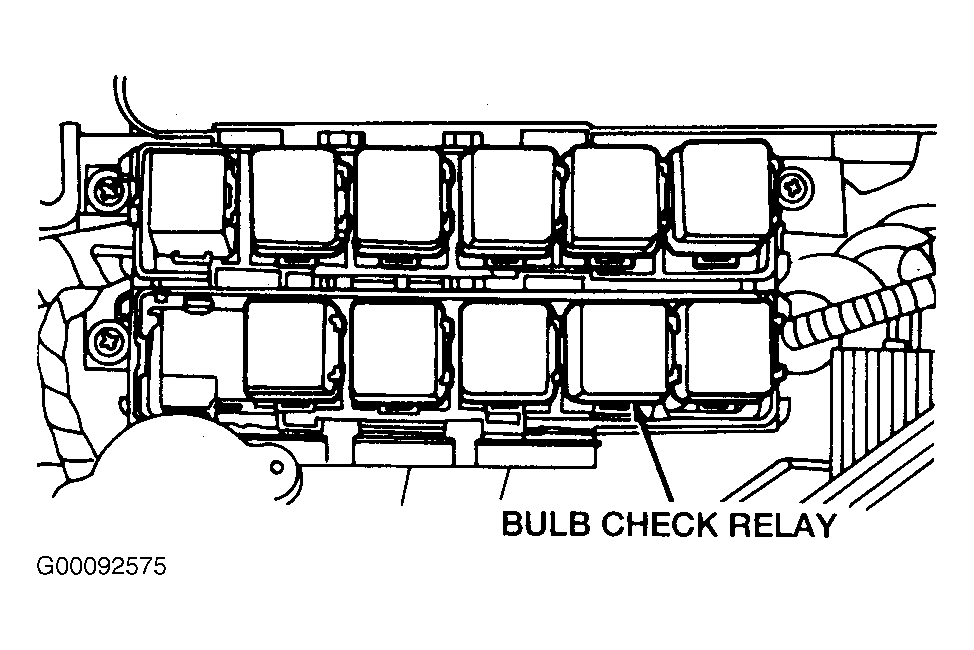

Fig 3: Locating Bulb Check Relay

Courtesy of FORD MOTOR CO.

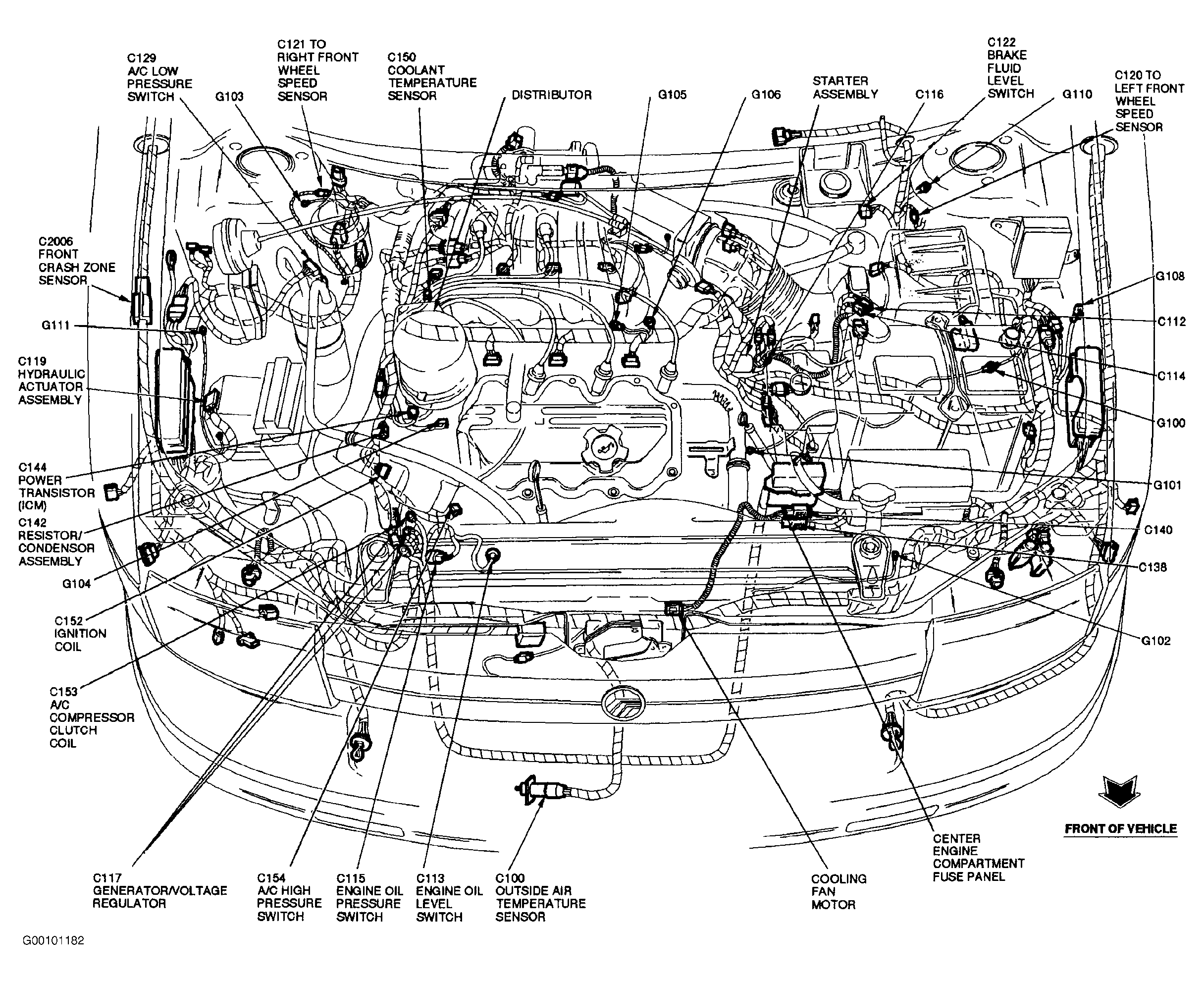

Fig 4: Locating Coolant Temperature Sensor; Engine Oil Level Switch; Engine Oil Pressure Switch; Grounds G108 & G110

Courtesy of FORD MOTOR CO.

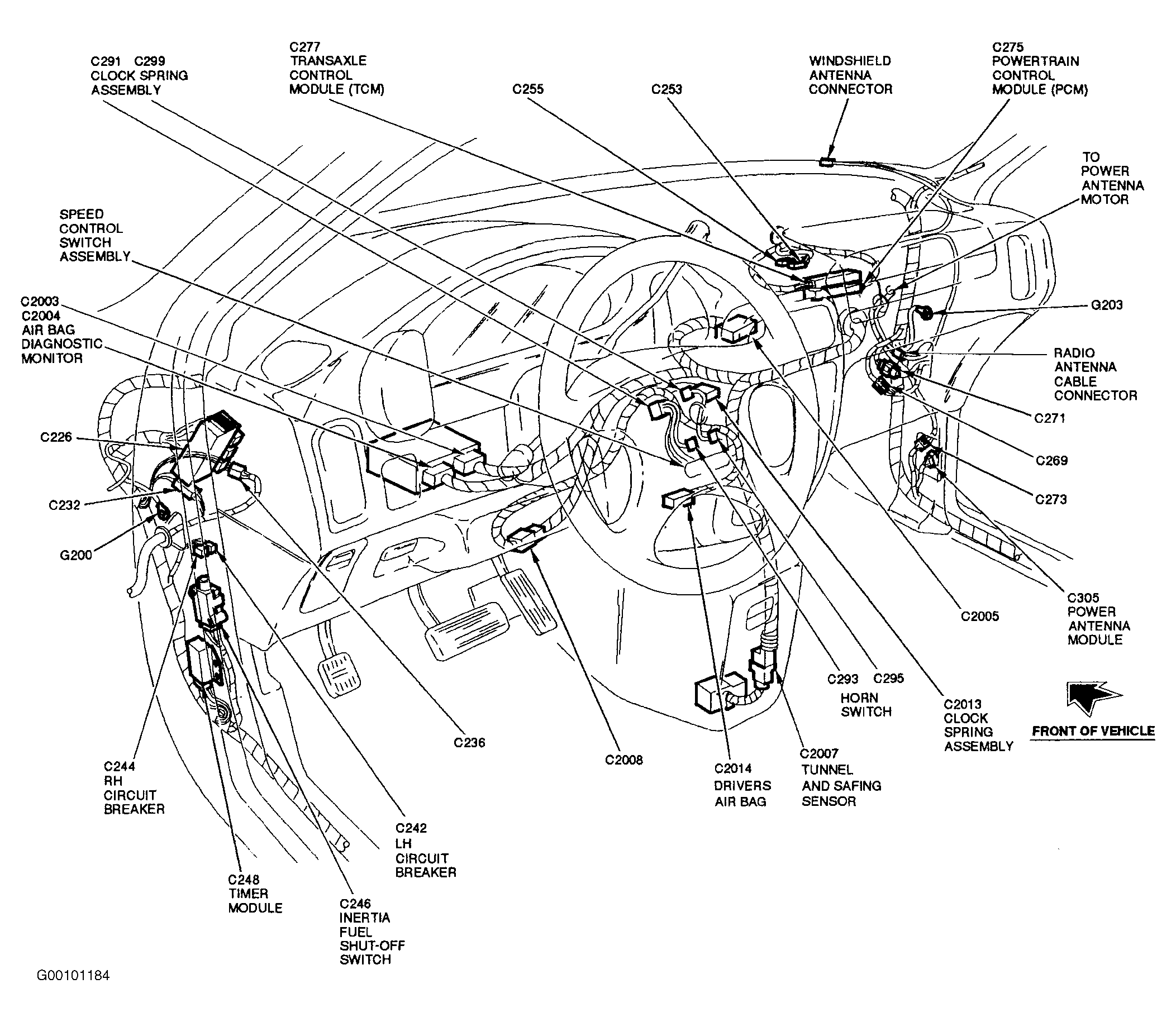

Fig 5: Locating Grounds G200 & G203; Locating Powertrain Control Module, Transaxle Control Module & Timer Module

Courtesy of FORD MOTOR CO.

Fig 6: Locating Ground G201

Courtesy of FORD MOTOR CO.
