Message Center Control Assembly (MCCA) Switch Module: Removal

1. Remove the instrument panel finish panel. See INSTRUMENT PANEL FINISH PANEL - LEFT HAND  .
2. Squeeze the tabs on the Message Center Control Assembly (MCCA) switch module and remove it from the instrument panel finish panel. See Fig 1 .

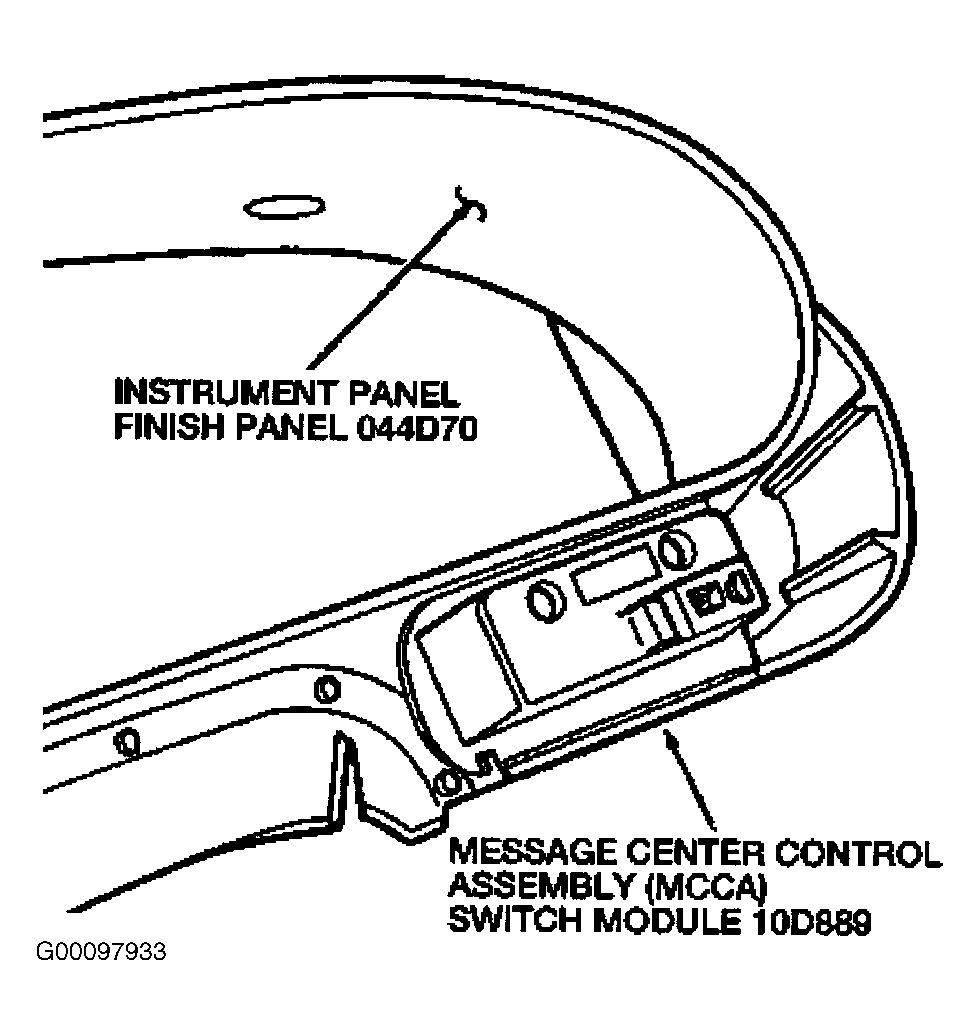

Fig 1: Identifying The Message Center Control Assembly Switch Module

Courtesy of FORD MOTOR CO.
