Component Locations

COMPONENT LOCATIONS

Component	Location
Air Bag Diagnostic Monitor	Behind Center of I/P. See Fig 5 .
Bulb Check Relay	In Engine Compartment, In LH Relay Block. See Fig 2 & Fig 3 .

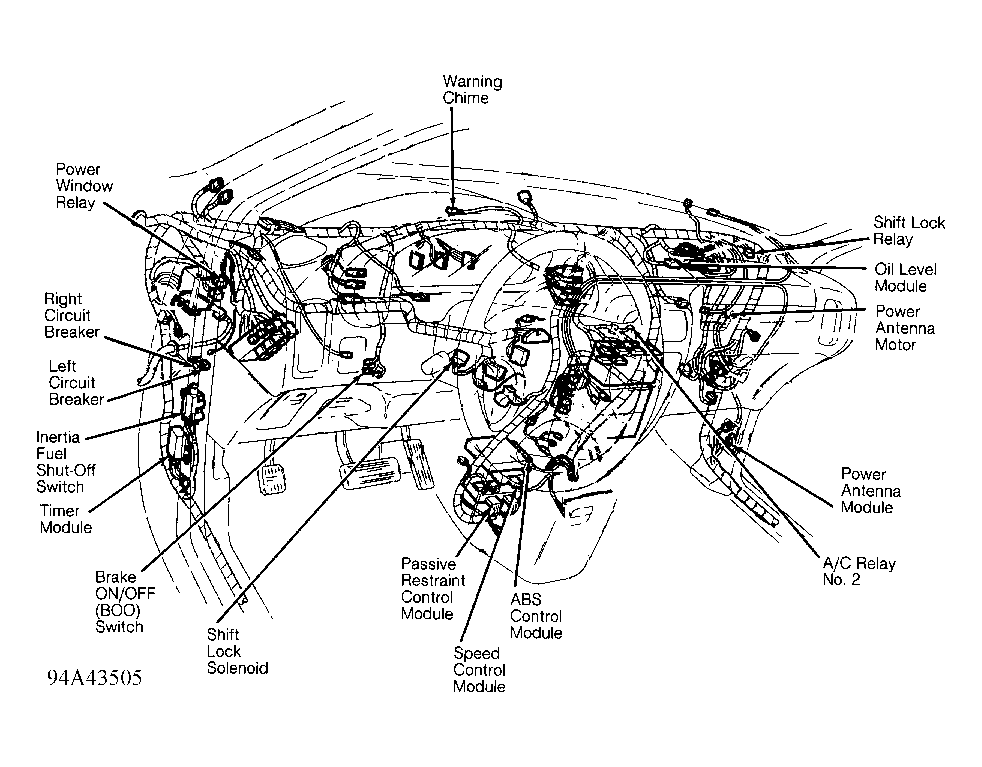

Diode Junction Box	Behind Upper Left Side of I/P, Taped To Harness. See Fig 1 .
Engine Oil Level Module	Behind Upper Left Side of I/P. See Fig 1 .
Engine Oil Level Switch	Lower Right Front of Engine. See Fig 4 .
Engine Oil Pressure Switch	Lower Right Front of Engine, Near Oil Filter. See Fig 4 .
Fuel Computer Control Panel	Left Hand Side Of I/P, Left Of Steering Column
Ground G107	In Engine Compartment, On Right Fender Apron. See Fig 2 .
Ground G108	In Engine Compartment, Left Fender Apron. See Fig 4 .
Ground G110	In Engine Compartment, On Left Shock Tower. See Fig 4 .
Ground G200	Behind Left Side of I/P. See Fig 5 .
Ground G201	Behind Center Console. See Fig 6 .
Ground G203	Behind Right Side of I/P. See Fig 5 .
I/P Fuse/Relay Panel	Behind LH Side Of I/P, Left Of Steering Column
Outside Air Temperature Sensor	In Radiator Grille. See Fig 4 .
Powertrain Control Module	Behind Top Right Hand Side Of I/P, Behind Glove Box. See Fig 5 .
Timer Module	Behind Left Kick Panel. See Fig 5 .
Transaxle Control Module	Behind top Right Hand Side Of I/P, Behind Glove Box. See Fig 5 .
Vehicle Speed Sensor	Left Hand Side Of Engine, On Rear Of Transaxle
