Wiring Diagrams

NOTE: For wiring diagrams not shown, see WIRING DIAGRAMS or SYSTEM WIRING DIAGRAMS articles.

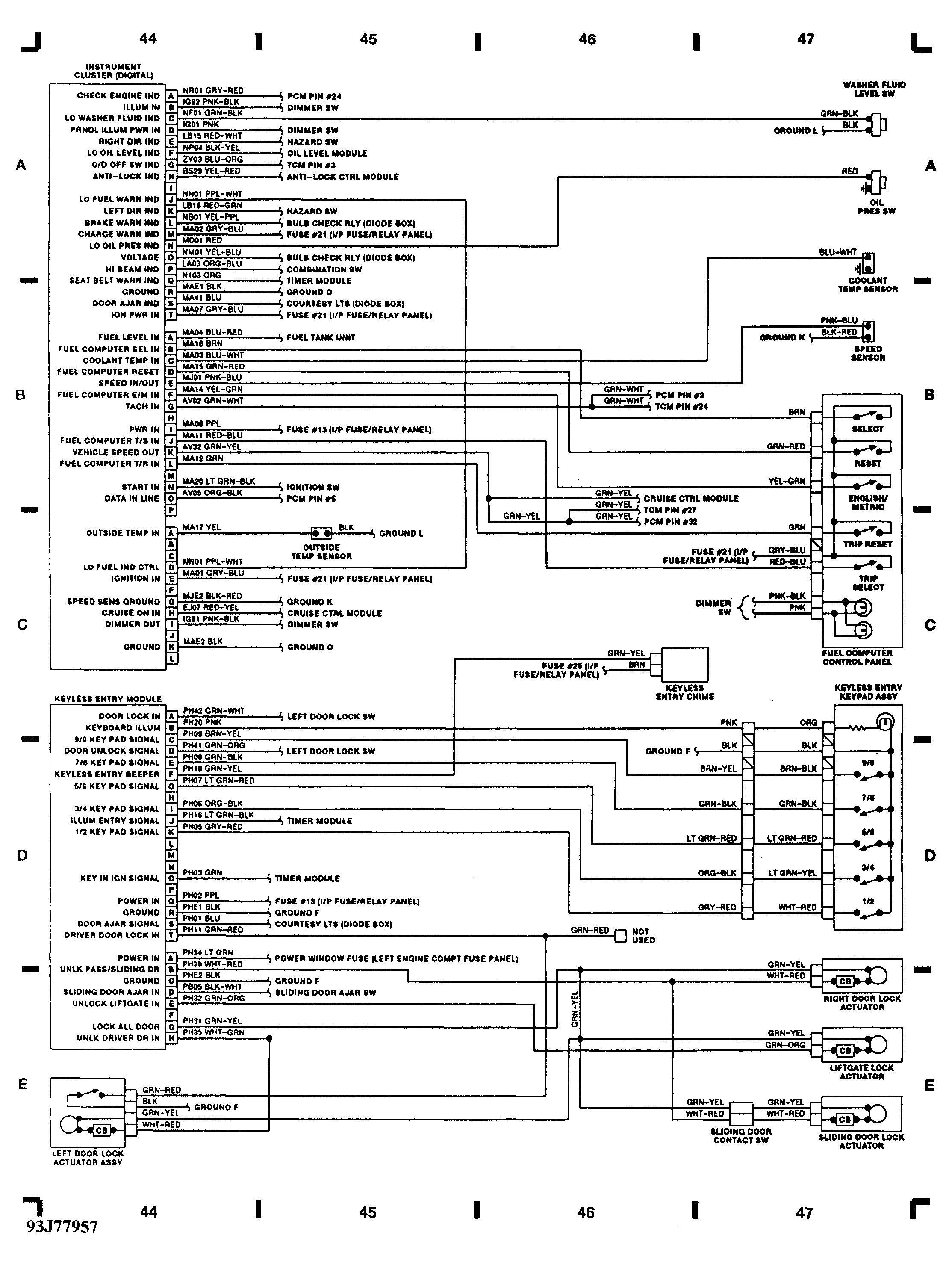

Fig 1: Electronic Instrument Cluster Wiring Diagram

G93J77957
