Connector Identification

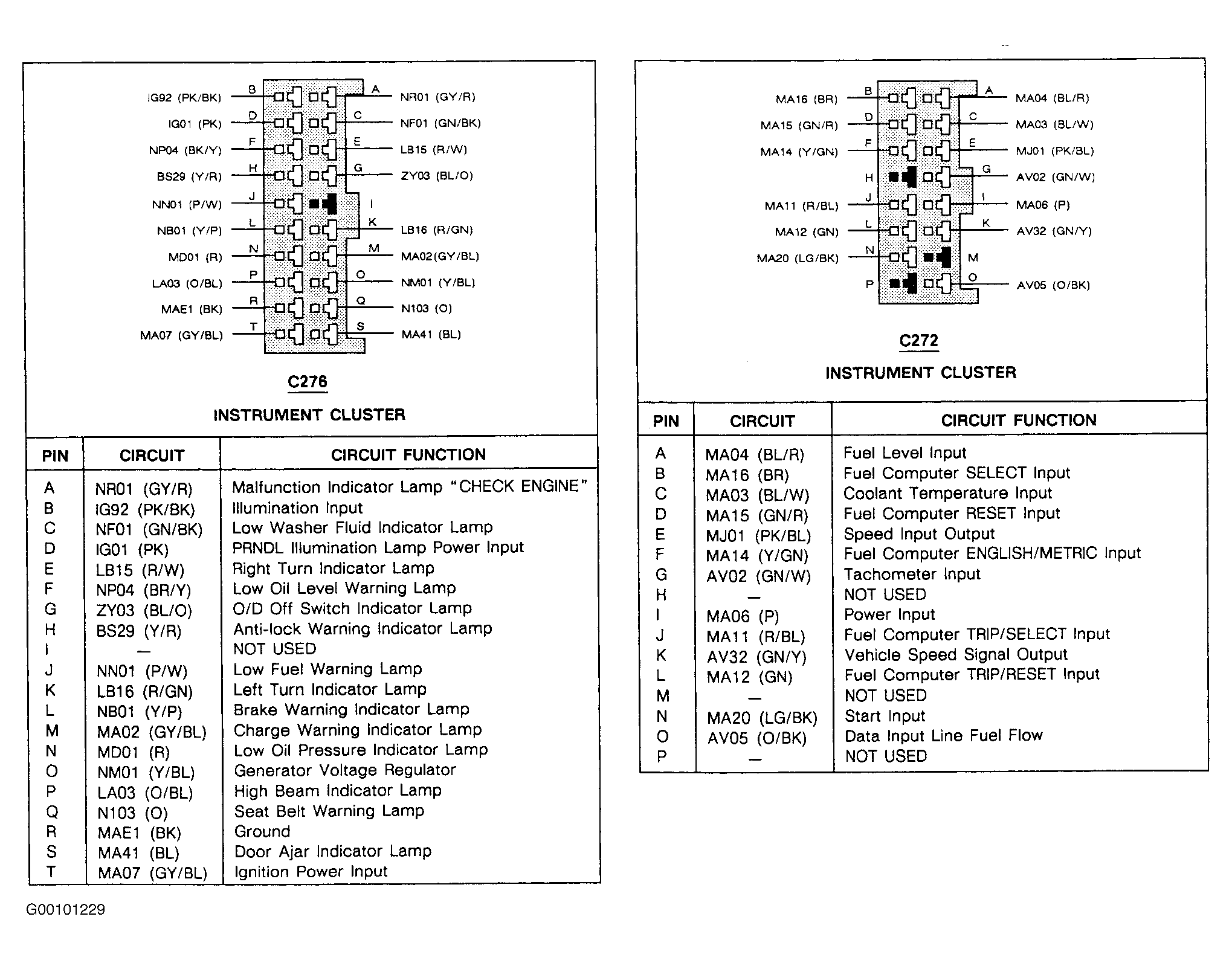

Fig 1: Identifying Electronic Instrument Cluster Connectors (1 Of 2)
G00101229Courtesy of FORD MOTOR CO.

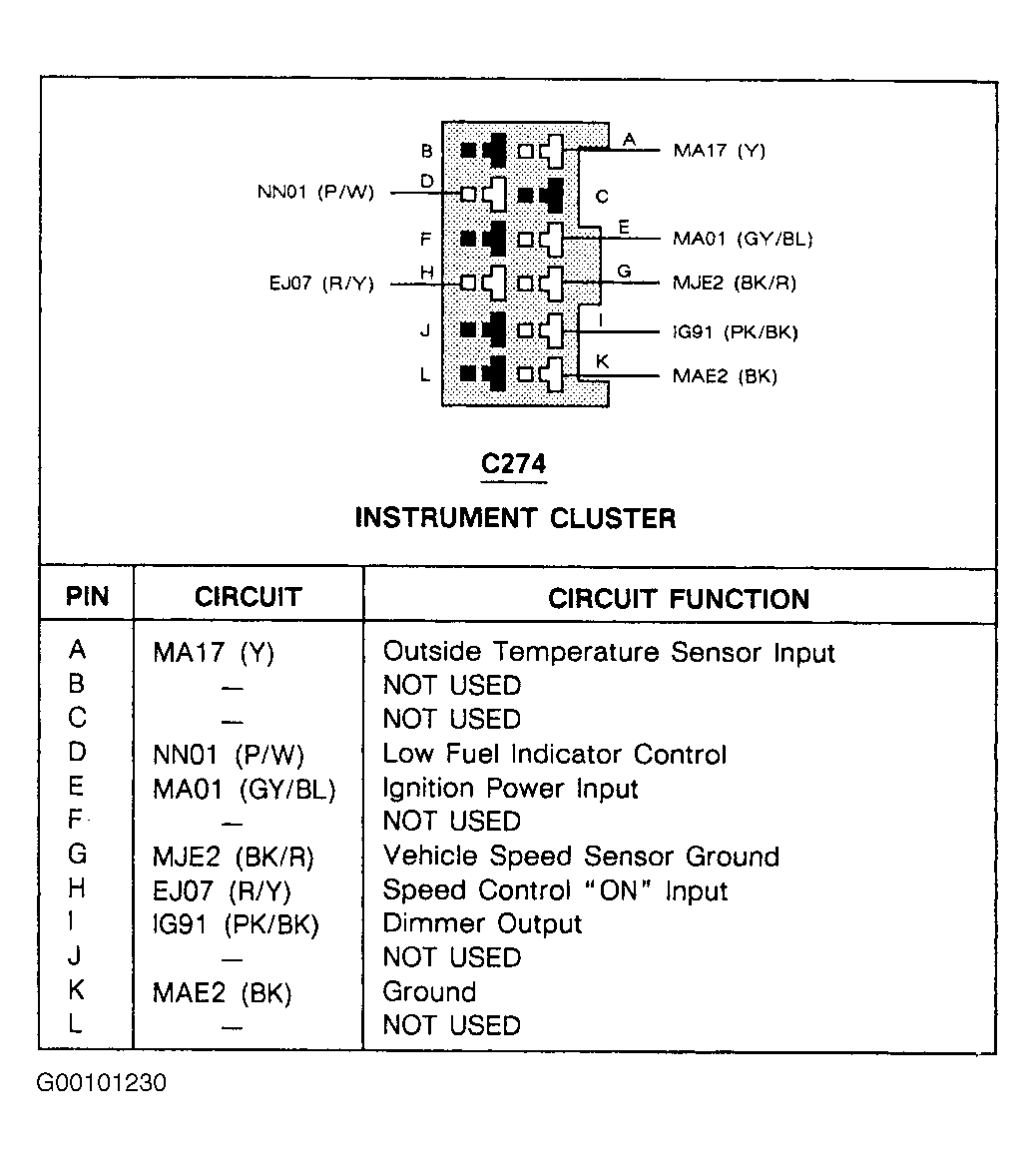

Fig 2: Identifying Electronic Instrument Cluster Connectors (2 Of 2)
G00101230Courtesy of FORD MOTOR CO.

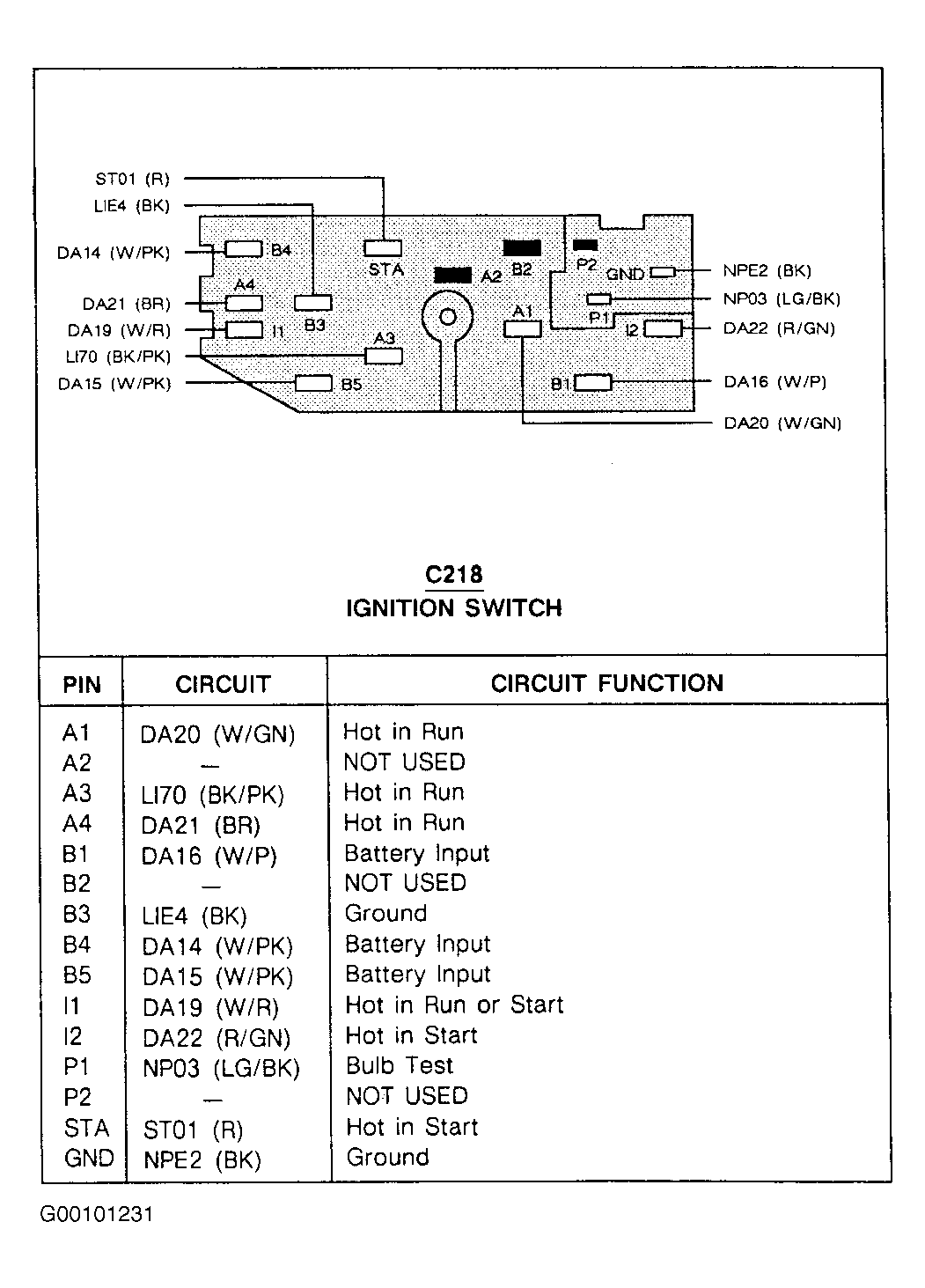

Fig 3: Ignition Switch Connector Terminal Identification
G00101231Courtesy of FORD MOTOR CO.
Fig 4: Fuel Computer Control Panel Connector Terminal Identification
G00101232Courtesy of FORD MOTOR CO.

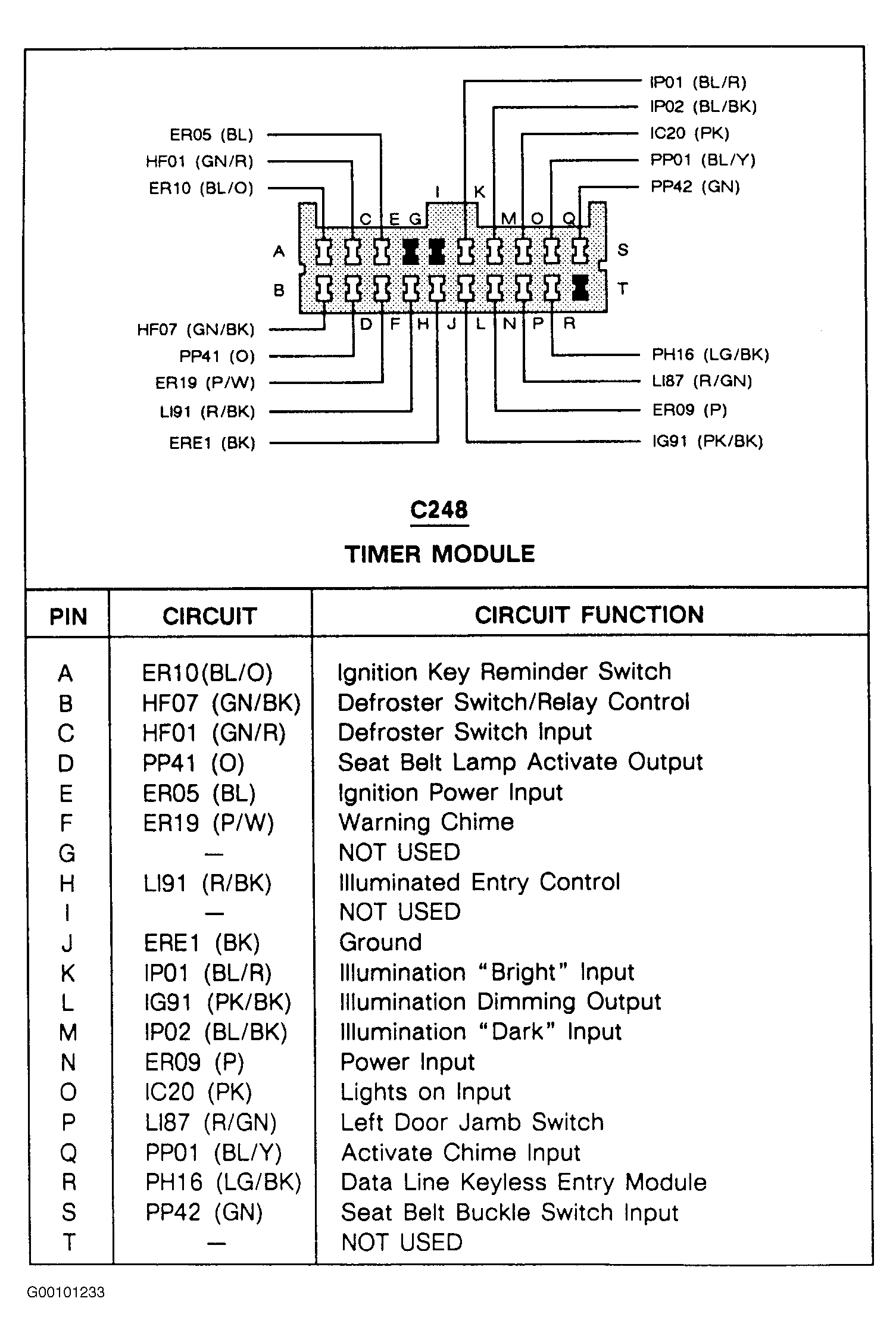

Fig 5: Timer Module Connector Terminal Identification
G00101233Courtesy of FORD MOTOR CO.
