Wiring Diagrams

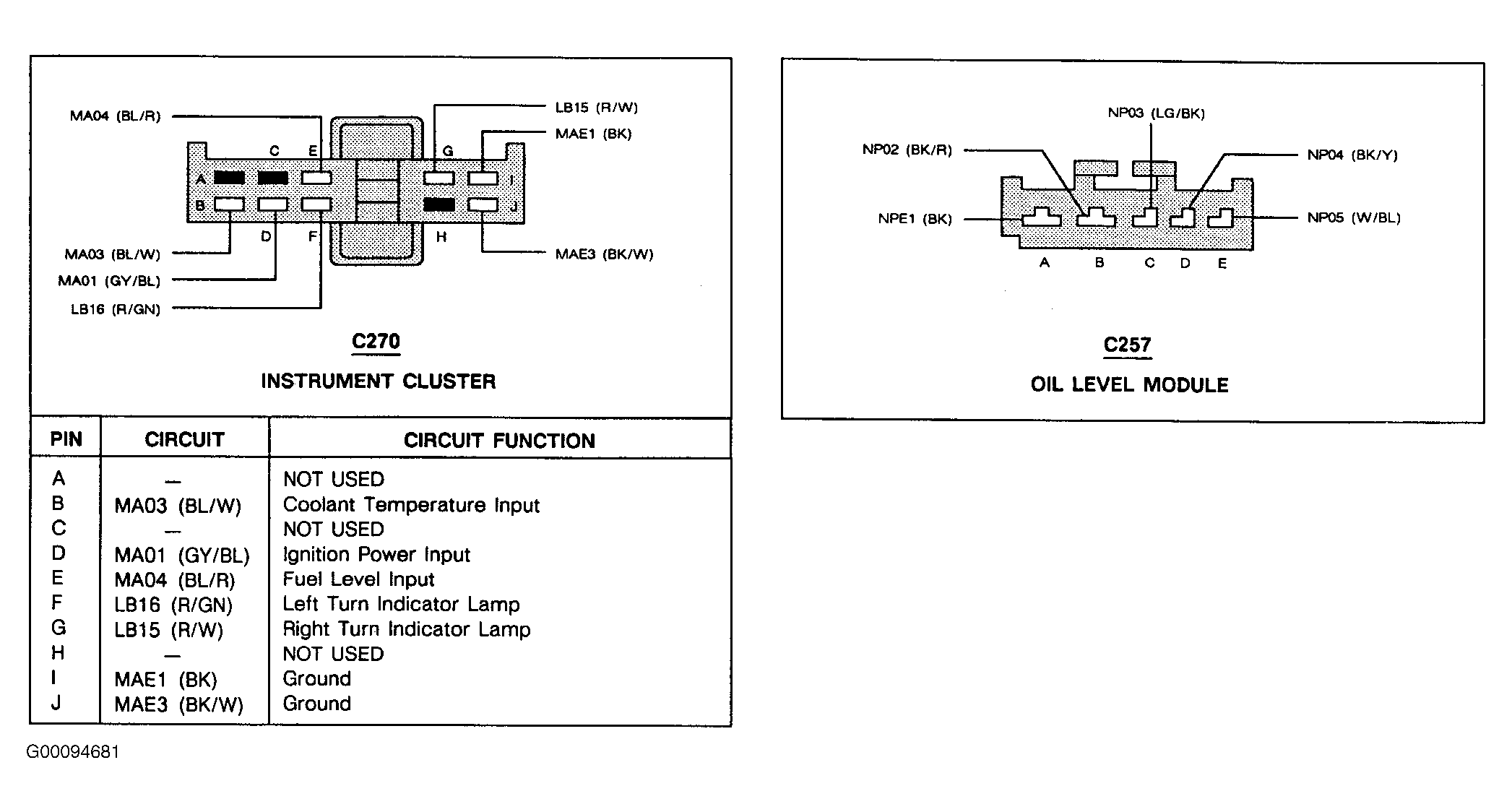

Fig 1: Instrument Cluster Connector Identification (1 Of 2)

Courtesy of FORD MOTOR CO.

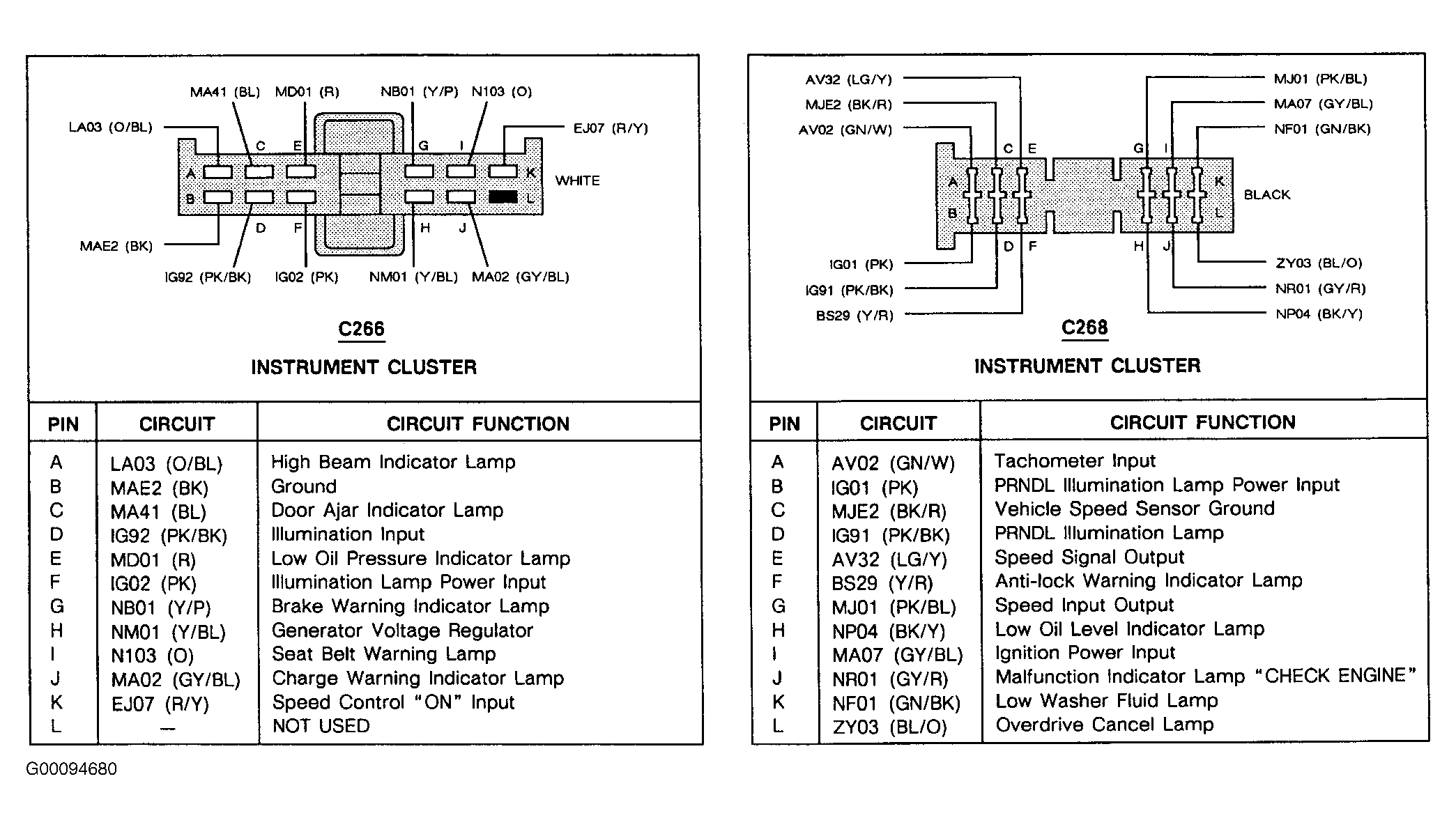

Fig 2: Instrument Cluster Connector Identification (2 Of 2)

Courtesy of FORD MOTOR CO.

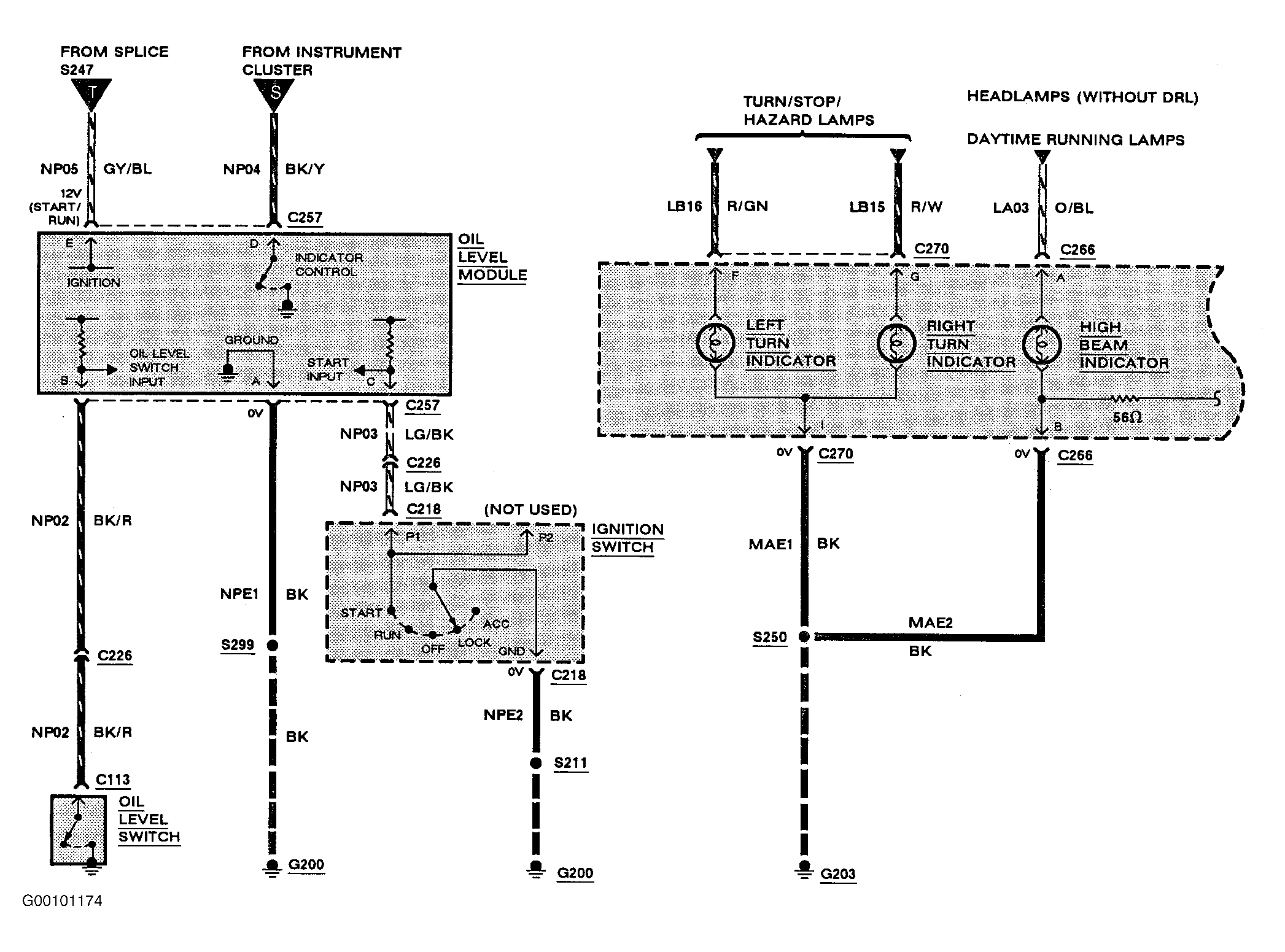

Fig 3: Analog Instrument Cluster Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

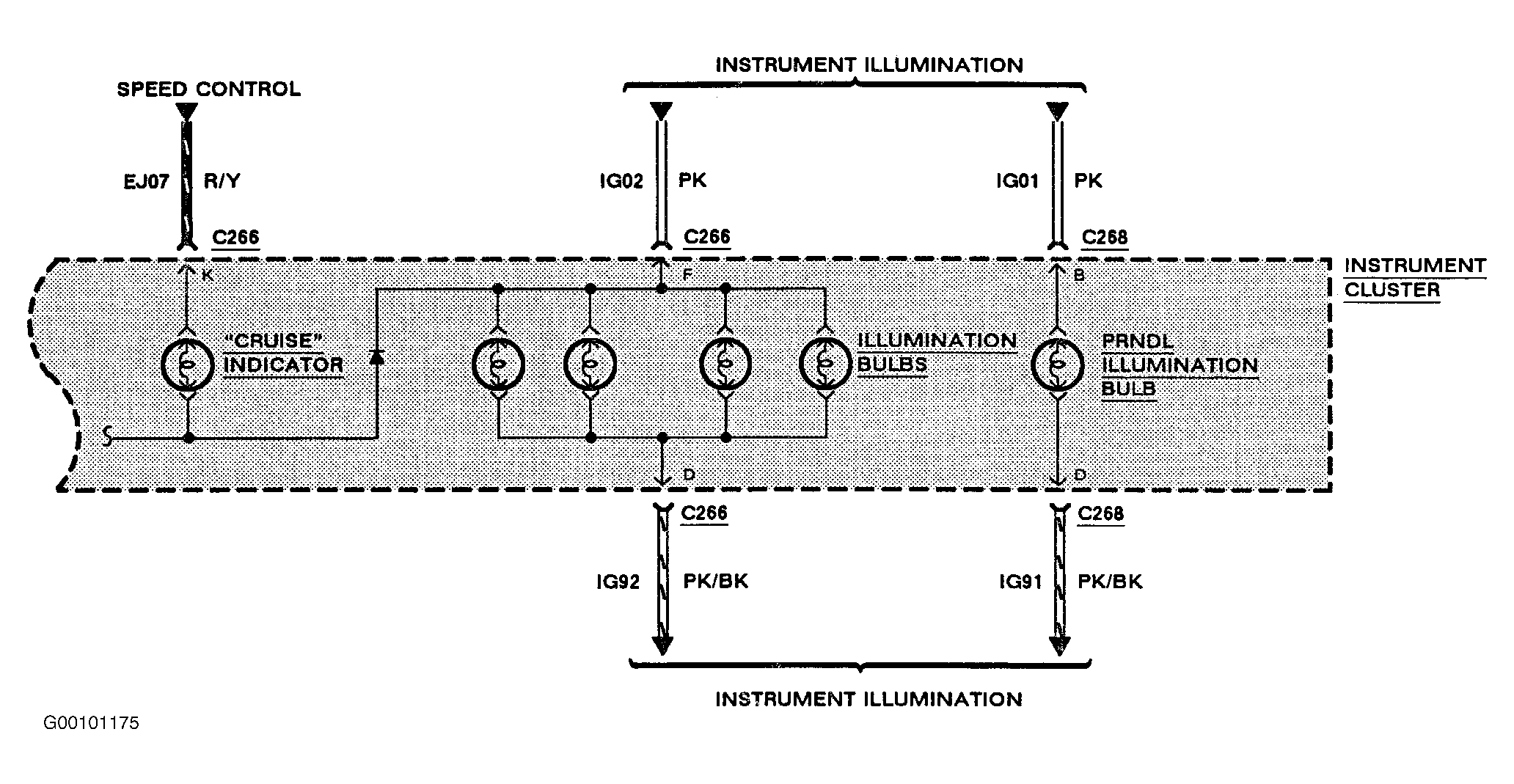

Fig 4: Analog Instrument Cluster Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

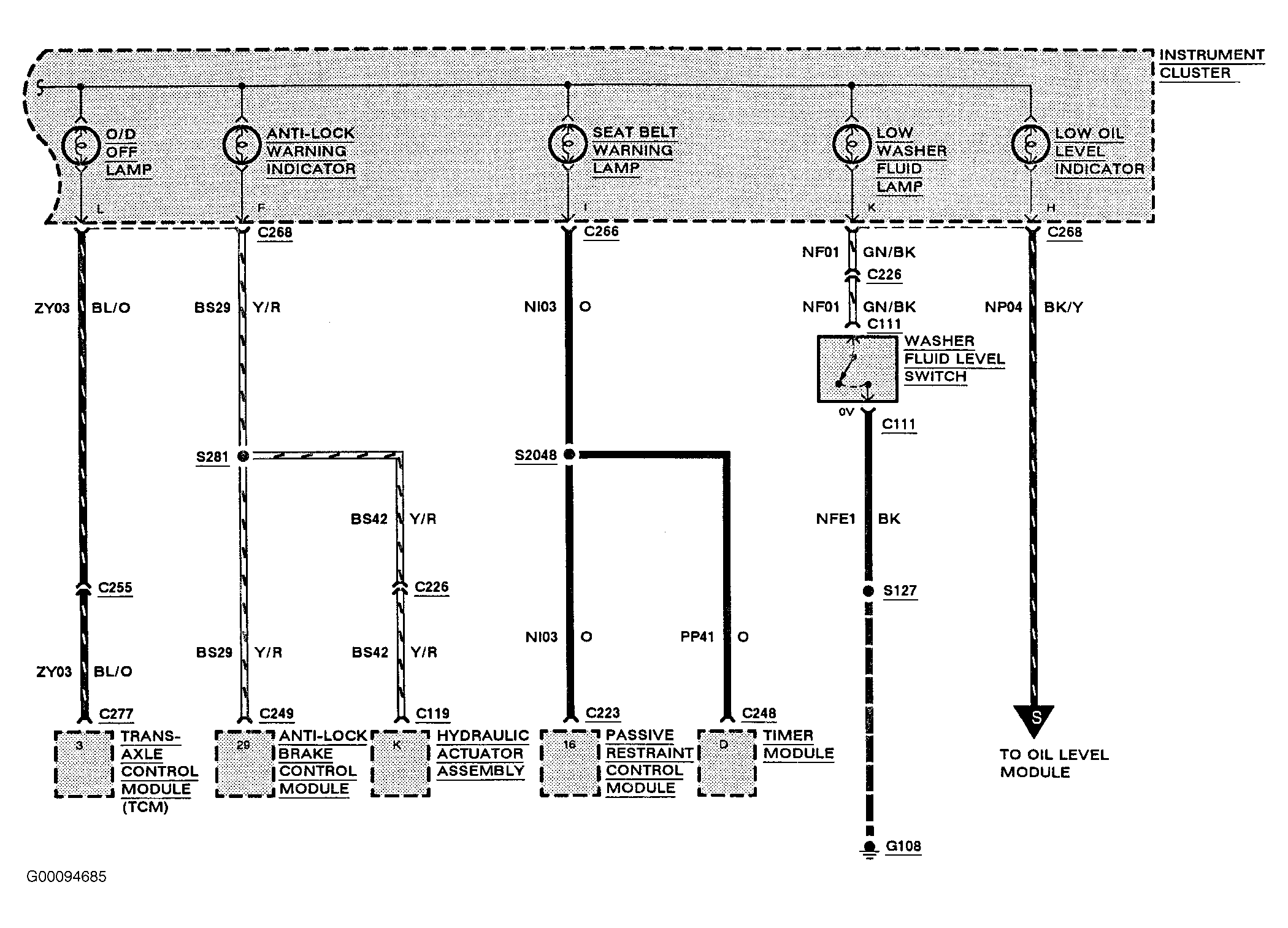

Fig 5: Analog Instrument Cluster Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

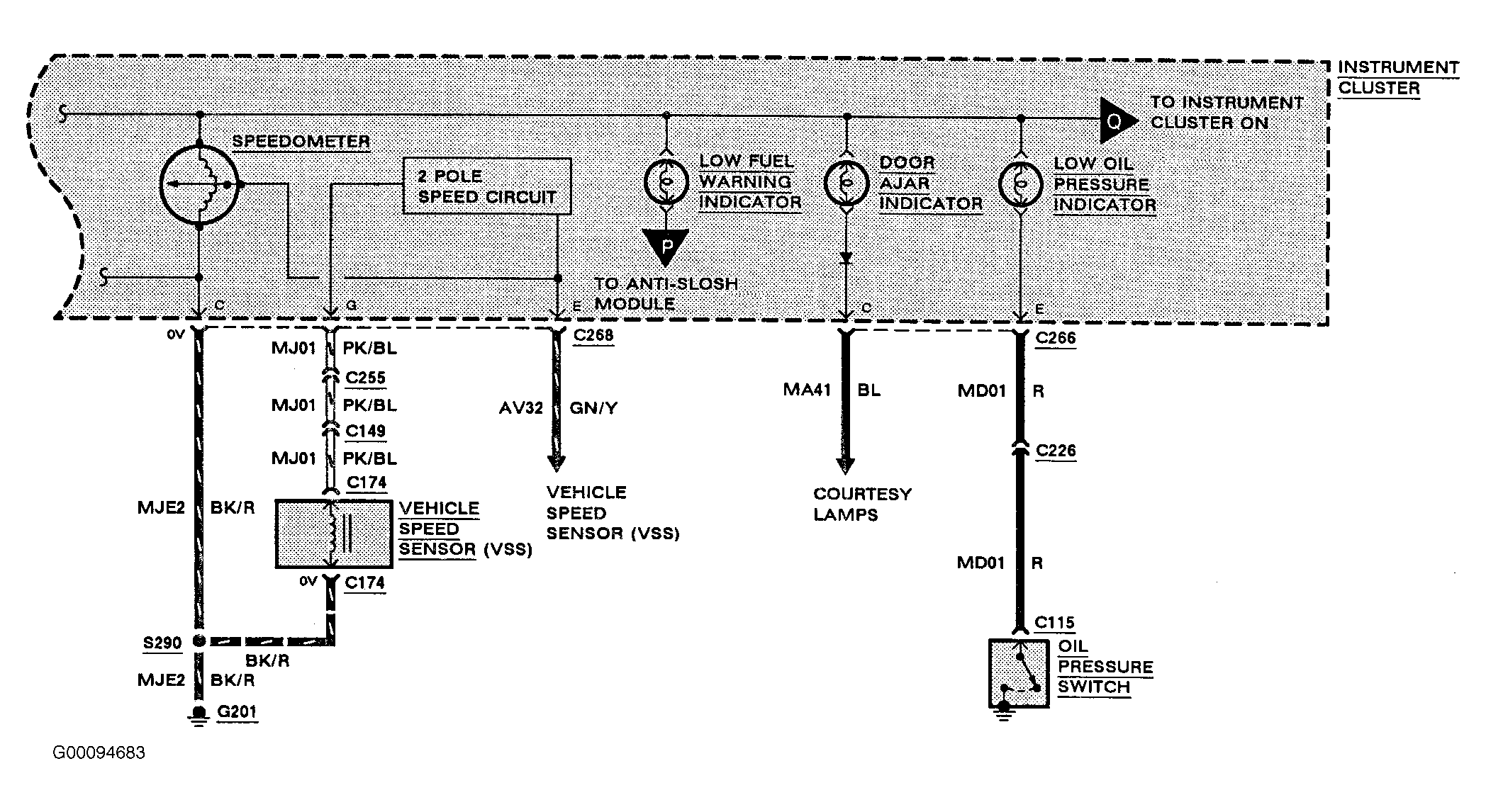

Fig 6: Analog Instrument Cluster Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

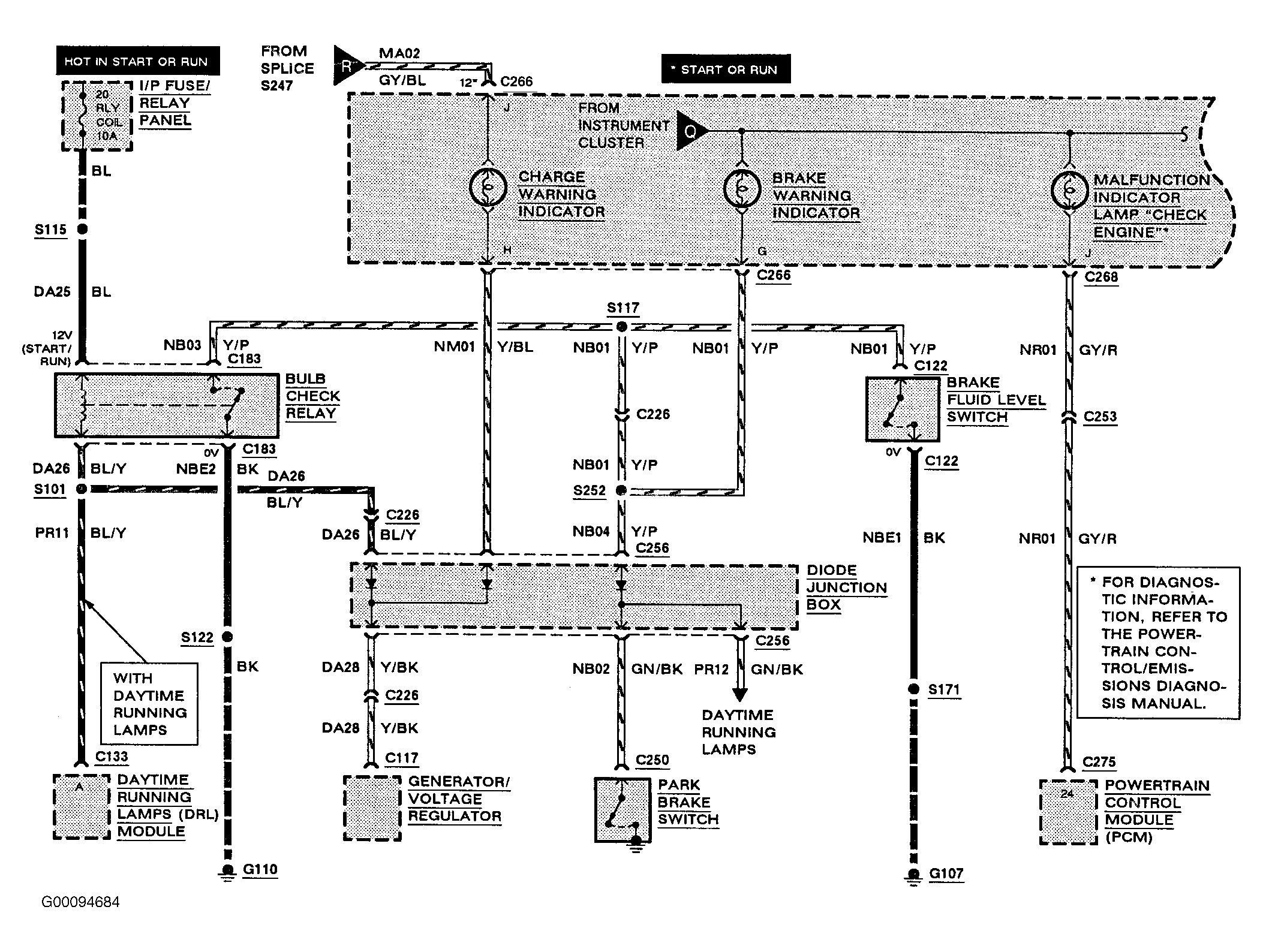

Fig 7: Analog Instrument Cluster Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

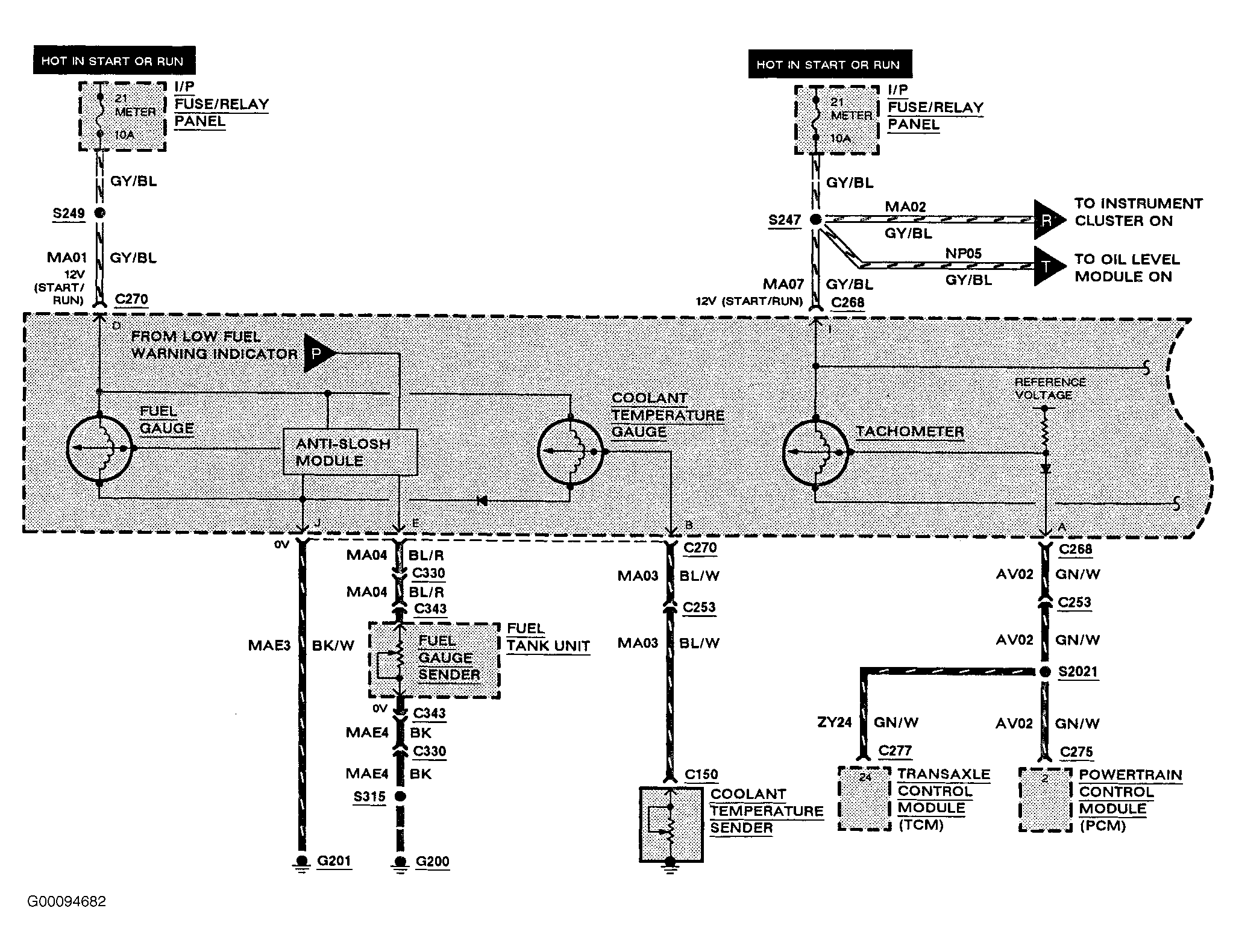

Fig 8: Analog Instrument Cluster Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
