Removal & Installation

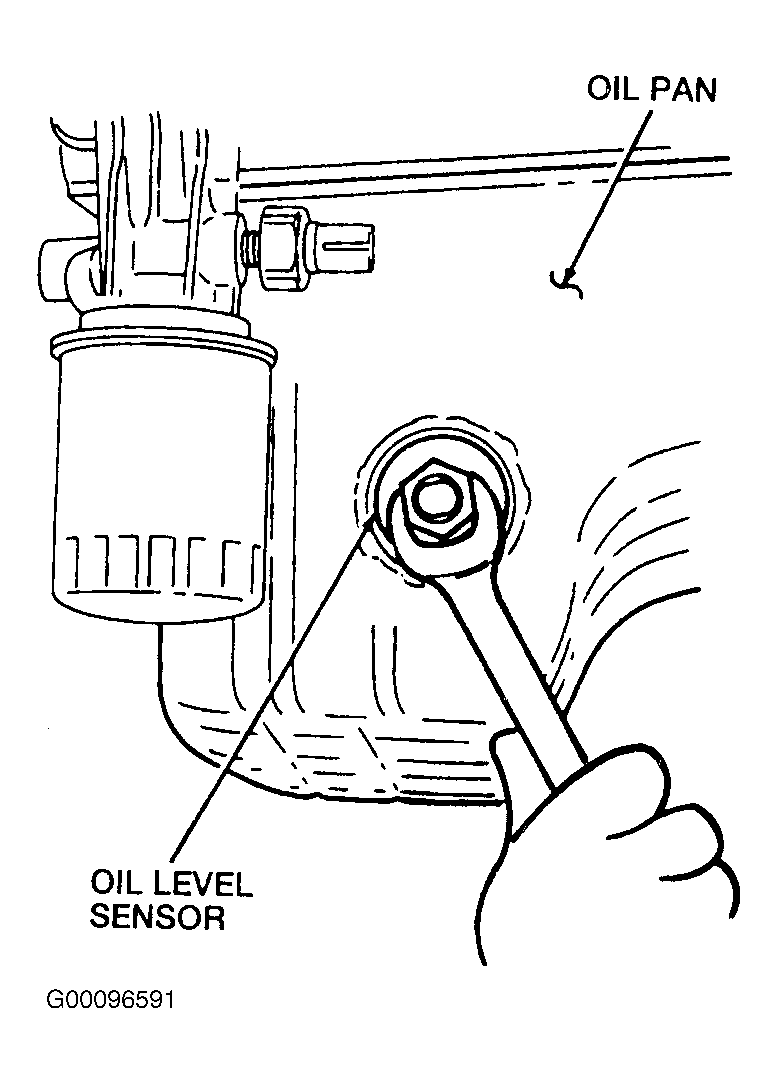

Disconnect the negative battery cable. Raise and support the vehicle. Position a suitable container under the oil level sensor and drain the engine oil. Disconnect the oil level sensor electrical connector. Remove the oil level sensor from the oil pan. See Fig 1 . To install, reverse removal procedure.
