Removal & Installation

  1. Disconnect the negative battery cable.
  2. Pull the hazard switch from the electronic instrument cluster bezel.
  3. Disconnect the hazard switch electrical connector. See Fig 1 .
  4. To install, reverse removal procedure.

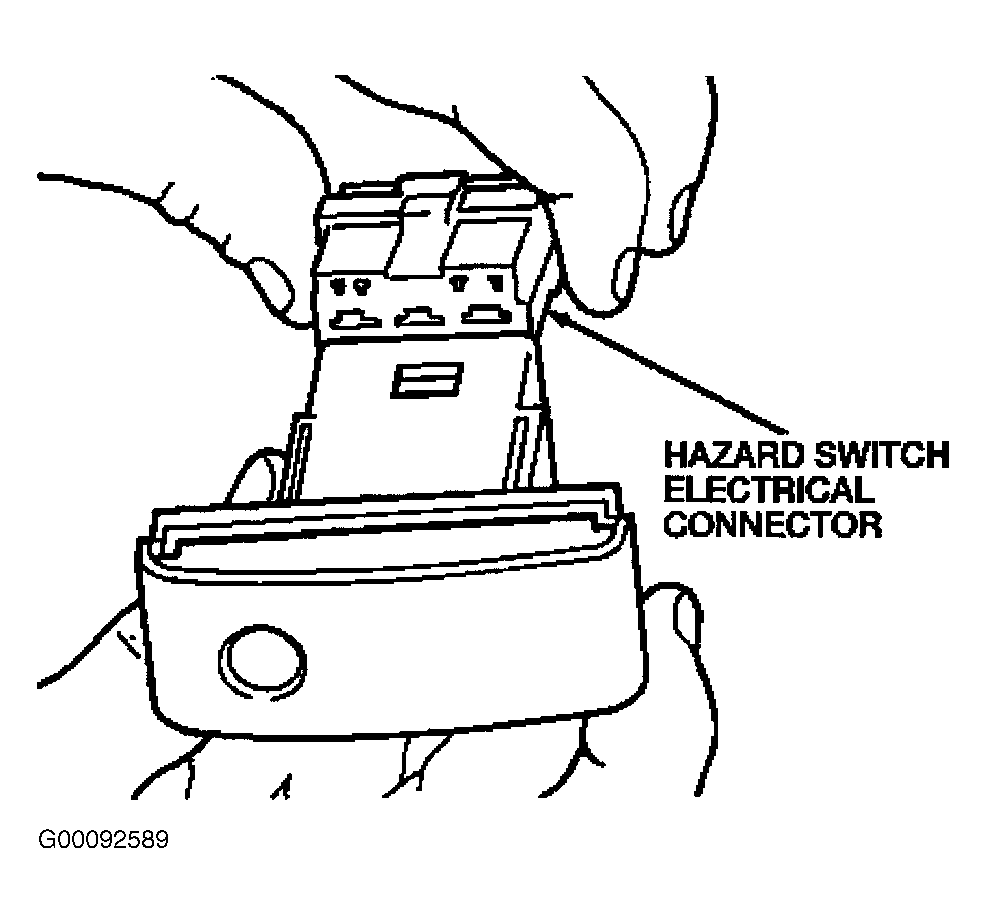

Fig 1: Removing Hazard Switch
G00092589Courtesy of FORD MOTOR CO.
