Removal & Installation

  1. Disconnect the negative battery cable. Remove the control console bezel screw. See Fig 1 .
  2. Carefully pull the control console bezel from the instrument panel. Remove the four climate control panel screws and pull the climate control panel from the instrument panel. See Fig 2 .
  3. Disconnect the five electrical connectors from the climate control panel and remove the climate control panel from the vehicle. To install, reverse removal procedure.

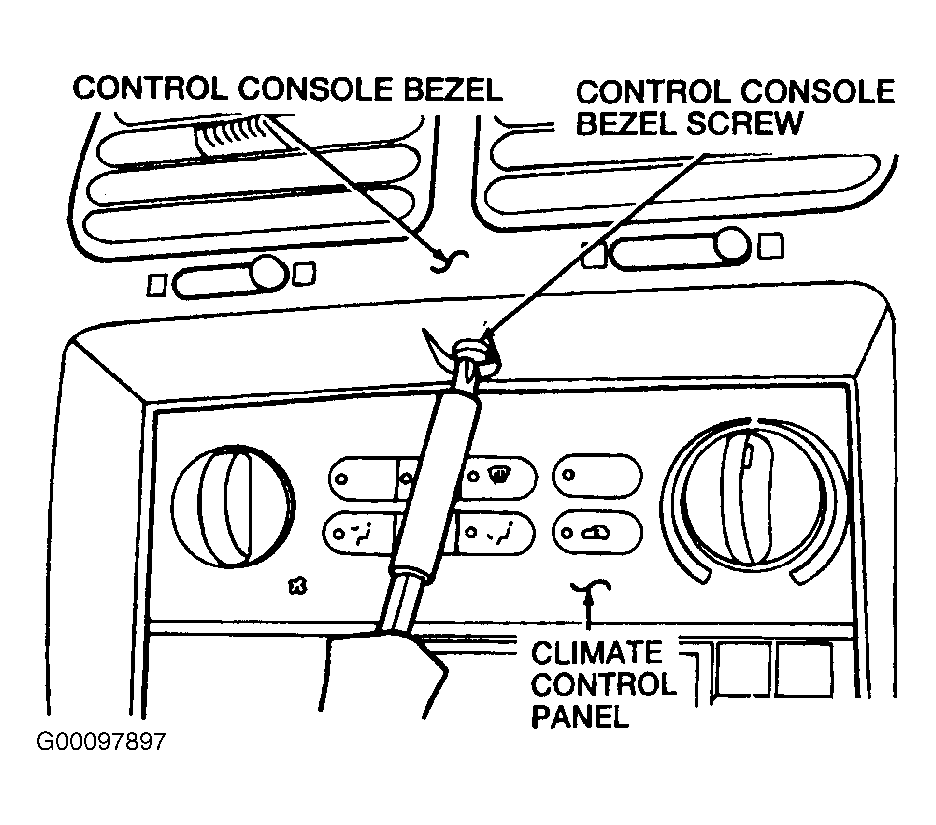

Fig 1: Removing Front Climate Control Panel Bezel
G00097897Courtesy of FORD MOTOR CO.

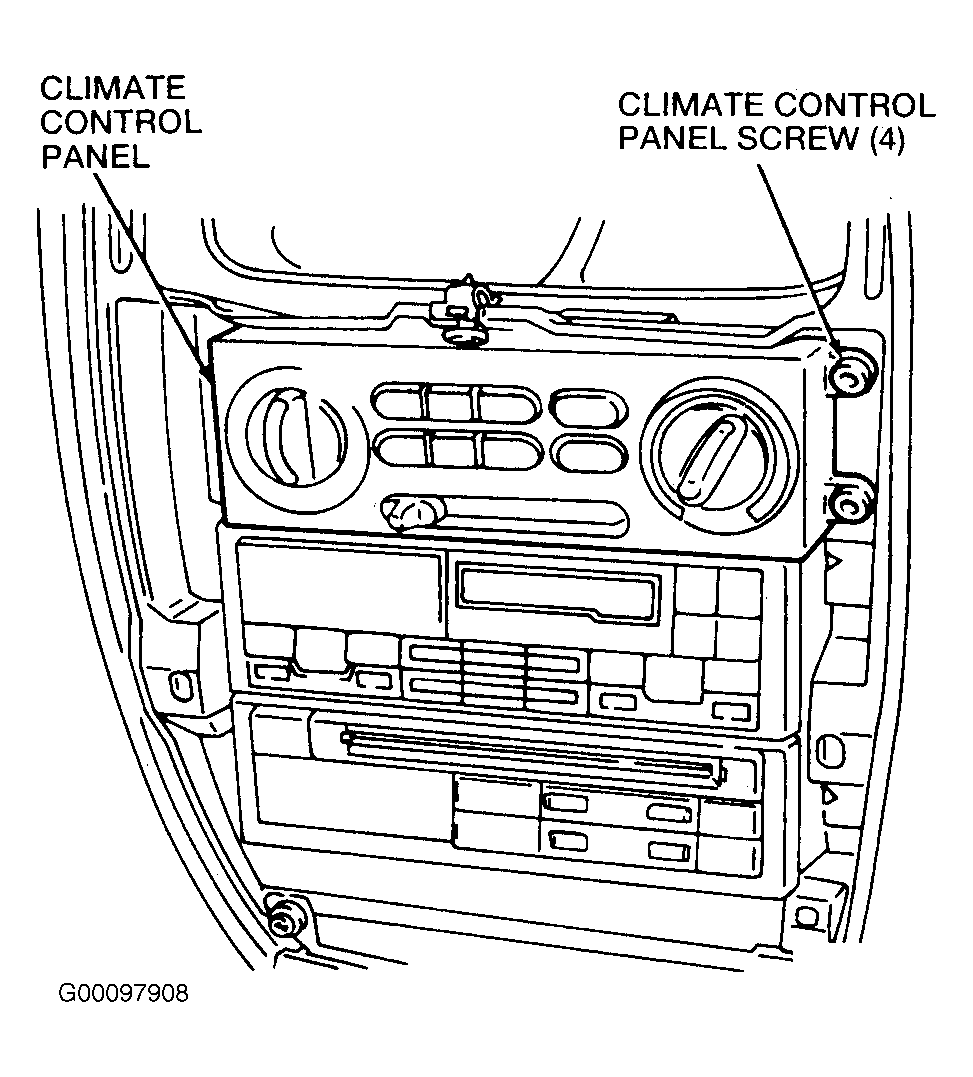

Fig 2: Removing Front Climate Control Panel
G00097908Courtesy of FORD MOTOR CO.
