Removal & Installation

  1. Remove the front lap belt retractor.
  2. Disconnect the keyless diode electrical connector and remove the keyless diode. To install, reverse the removal procedure. See Fig 1 .

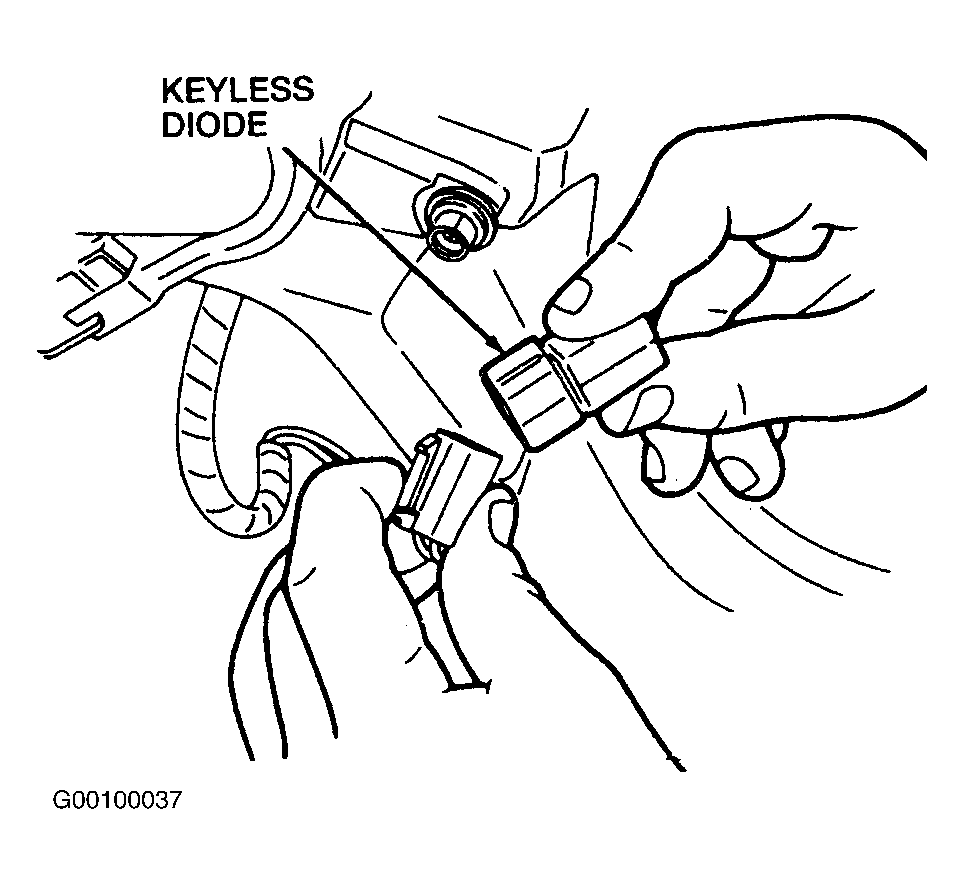

Fig 1: View Of Keyless Diode Location
G00100037Courtesy of FORD MOTOR CO.
