Instrument Panel Reinforcement Bar: Installation

1. Install the instrument panel reinforcement bar. Tighten the instrument panel reinforcement bar upper bolts. Tighten the instrument panel reinforcement bar nuts. Tighten the instrument panel reinforcement bar bolts. See TORQUE SPECIFICATIONS  .
2. Install the two console brackets and tighten the two left hand and the two right hand console bracket nuts. See TORQUE SPECIFICATIONS  .
3. Install the U-bracket. Tighten the four U-bracket bolts. Tighten the three U-bracket-to-chassis nuts. See TORQUE SPECIFICATIONS  .
4. Install the ABS control module bracket screw.
5. Attach the harness to the U-bracket.
6. Install the heater unit housing-to-instrument panel reinforcement bar bolt.
7. Install the shift-lock relay/flasher module bracket screw.
8. Install the two parking brake release lever screws.
9. Install the interior fuse panel screw.
10. Position the Powertrain Control Module (PCM), the Transaxle Control Module, and the PCM/TCM bracket to the instrument panel reinforcement bar and install the PCM/TCM bracket bolts.
11. Connect the Transaxle Control Module (TCM) electrical connector and tighten the TCM electrical connector bolt until the red projection appears.
12. Connect the Powertrain Control Module (PCM) electrical connector and tighten the PCM electrical connector bolt until the red projection appears.
13. Position the ground wires to the U-bracket and install the ground bolts.
14. Attach the antenna cable and the diversity antenna wire, if equipped, to the instrument panel reinforcement bar.
15. Attach the electrical harness to the instrument panel reinforcement bar.
16. Attach the oil level timer module to its bracket.
17. Install the floor duct and the two floor duct screws.
18. Install the right hand register duct and the right hand register duct screw.
19. Install the center register duct and the two center register duct screws.
20. Install the left hand register duct and the left hand register duct screw.
21. Install the instrument panel. Refer to the procedure in this section.

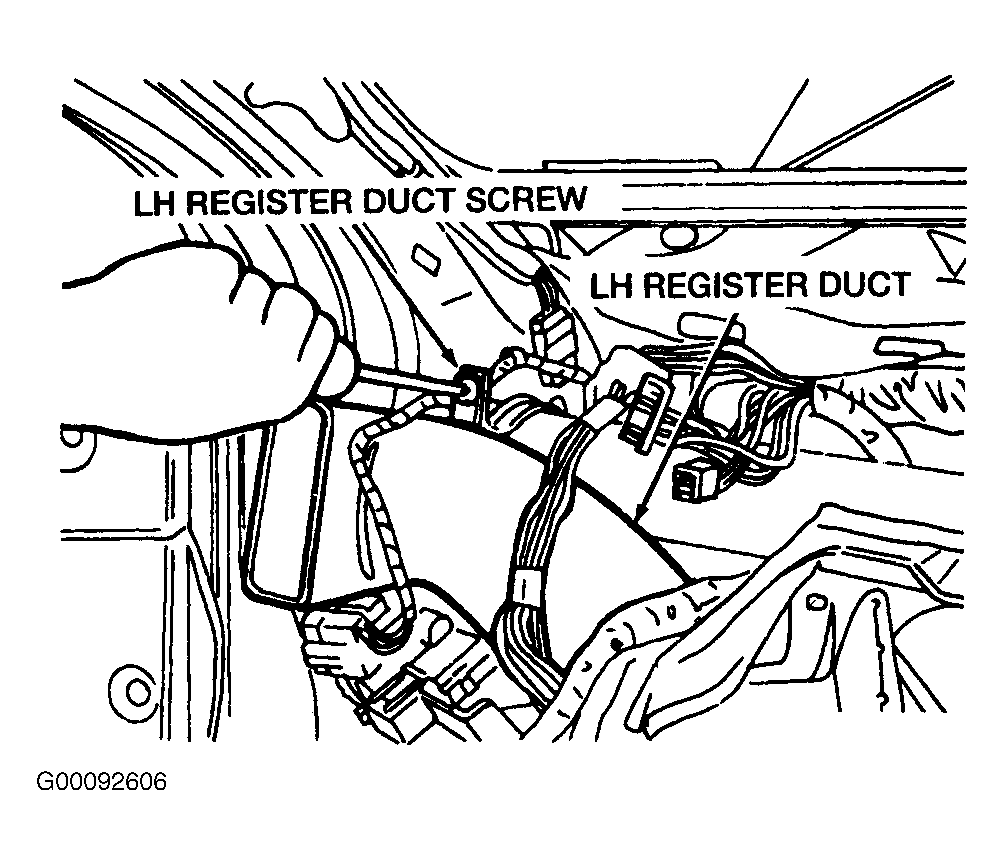

Fig 1: View Of Register Duct Screw and Register Duct

Courtesy of FORD MOTOR CO.

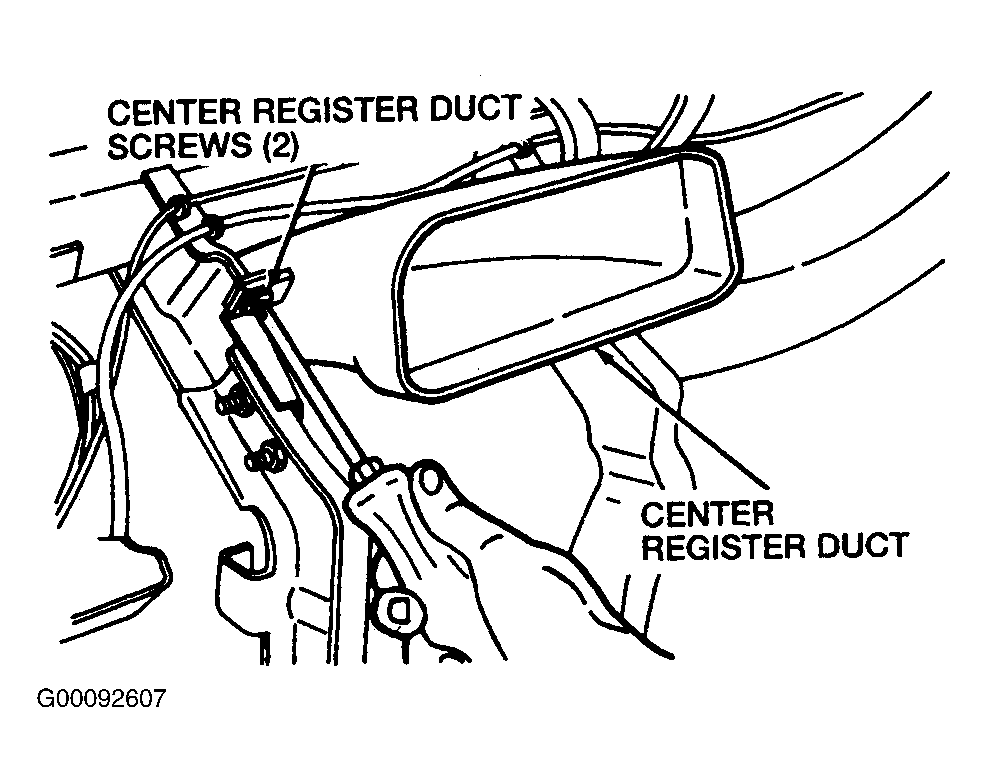

Fig 2: View Of Center Register Duct Screws & Duct

Courtesy of FORD MOTOR CO.

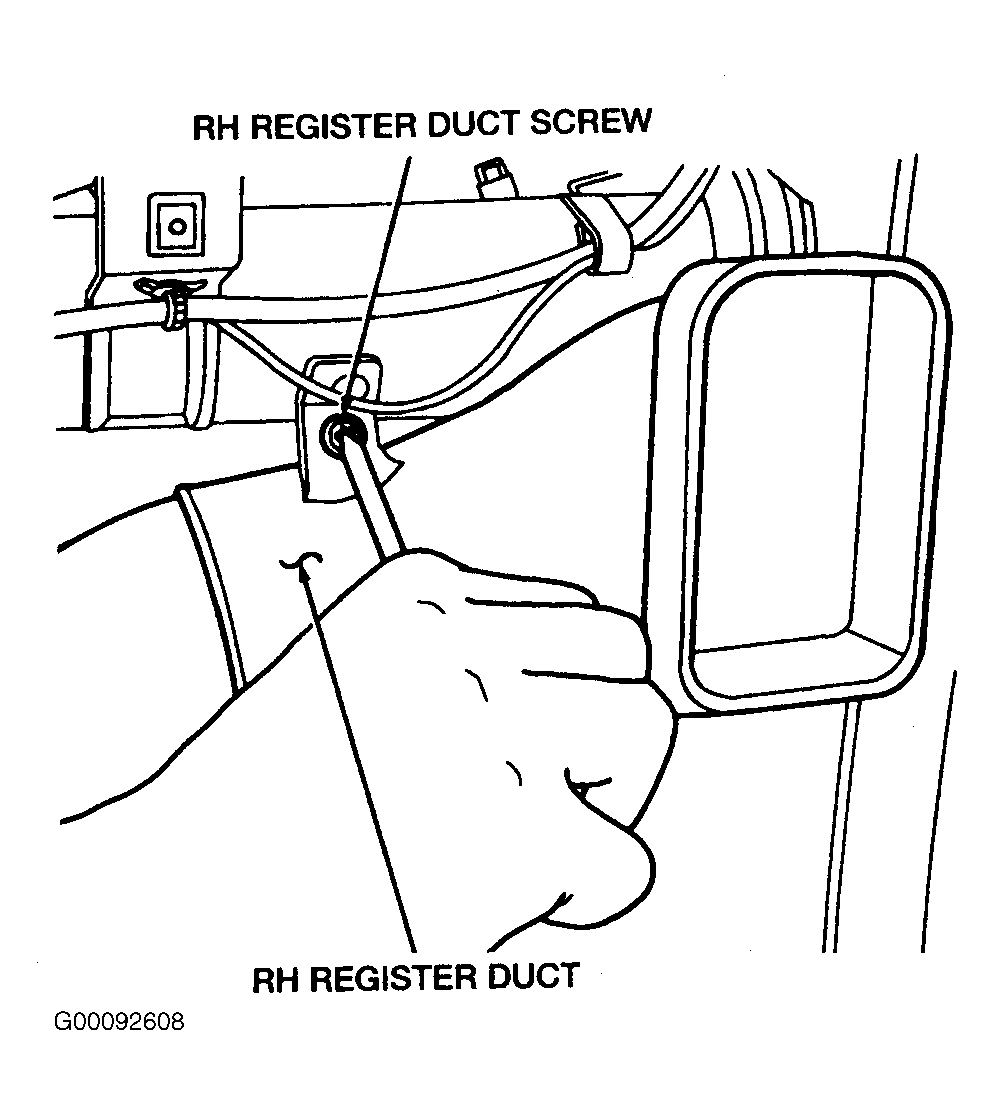

Fig 3: View Of right hand Register Duct Screw & Duct

Courtesy of FORD MOTOR CO.

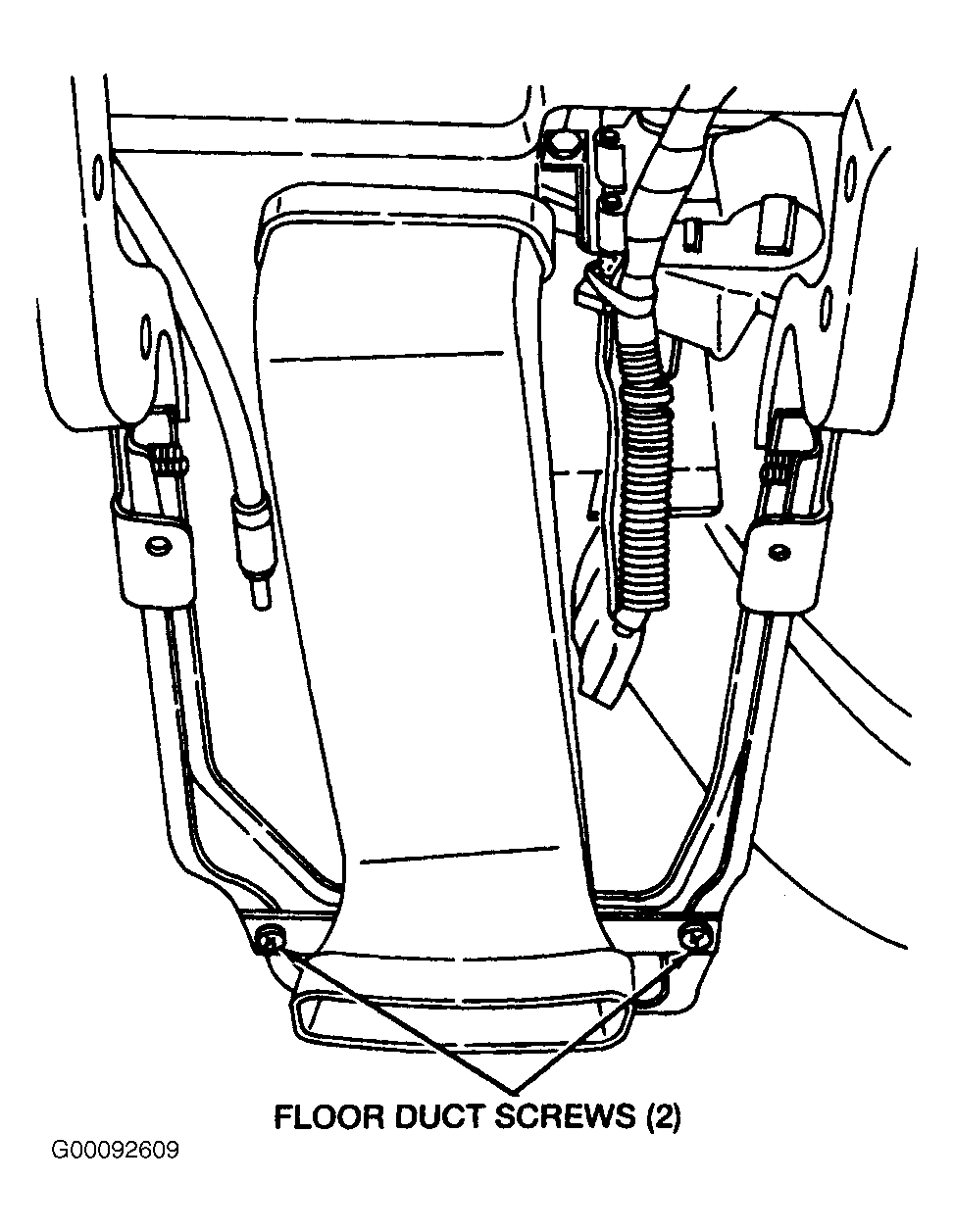

Fig 4: View Of Floor Duct Screws & Floor Duct

Courtesy of FORD MOTOR CO.

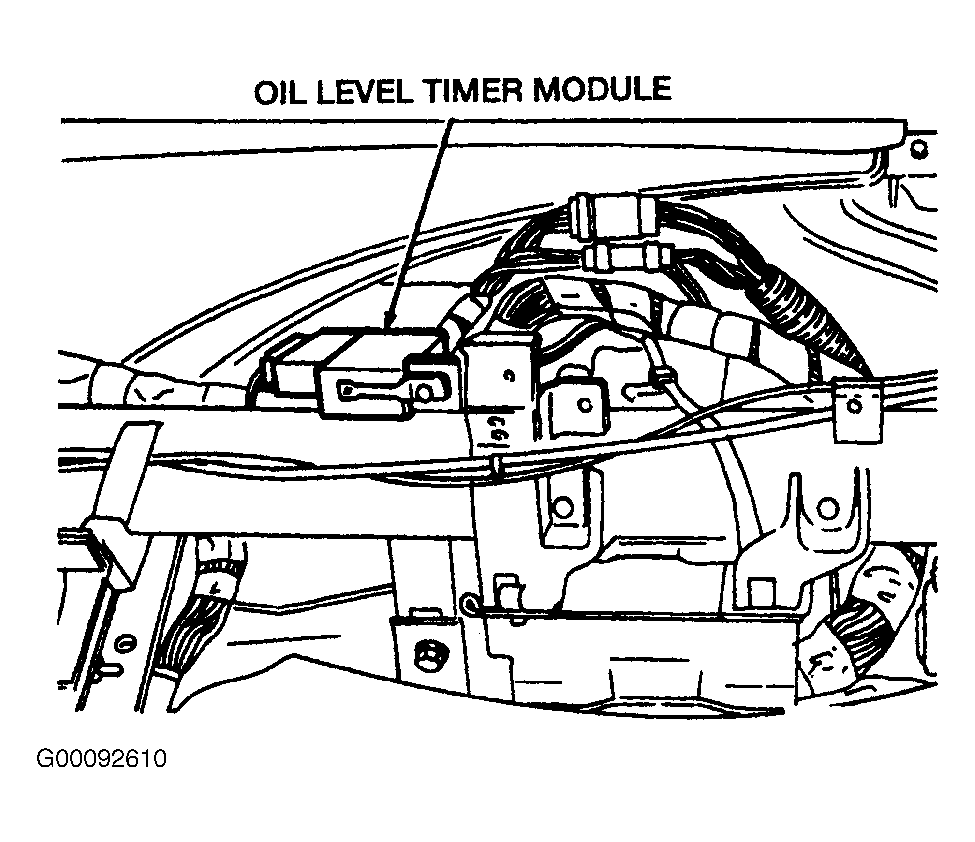

Fig 5: View Of Oil Level Timer Module Location

Courtesy of FORD MOTOR CO.

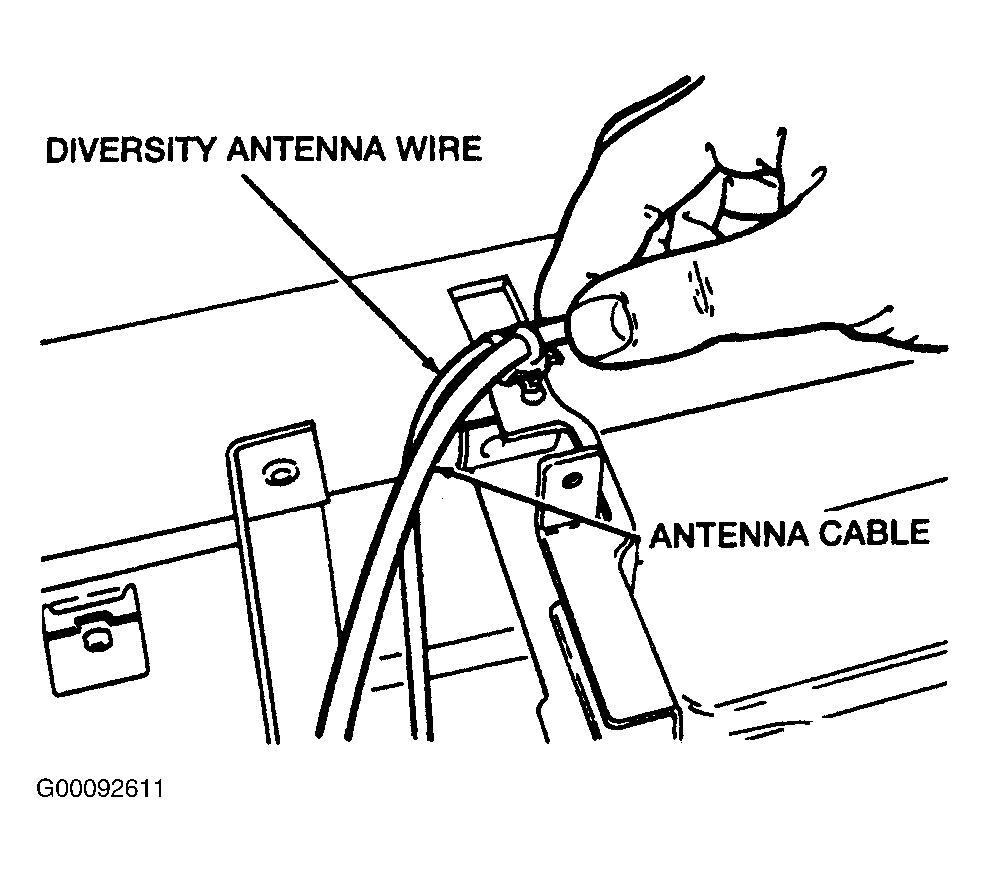

Fig 6: View Of Diversify Antenna Wire & Antenna Cable

Courtesy of FORD MOTOR CO.

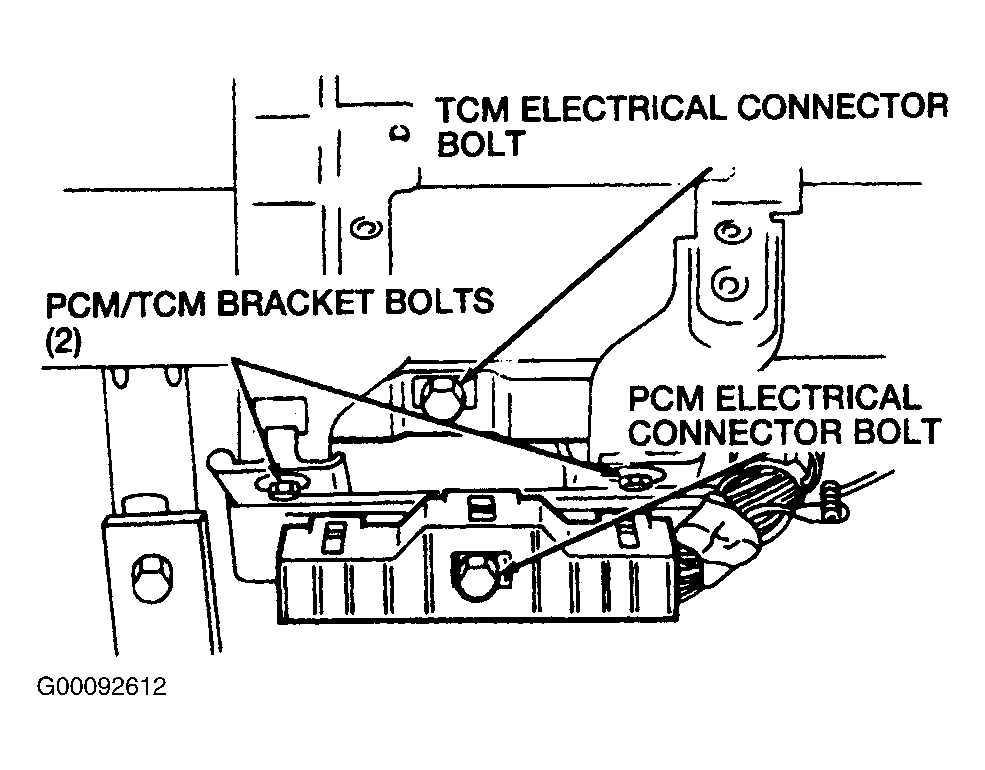

Fig 7: View Of PCM Electrical Connector Location

Courtesy of FORD MOTOR CO.

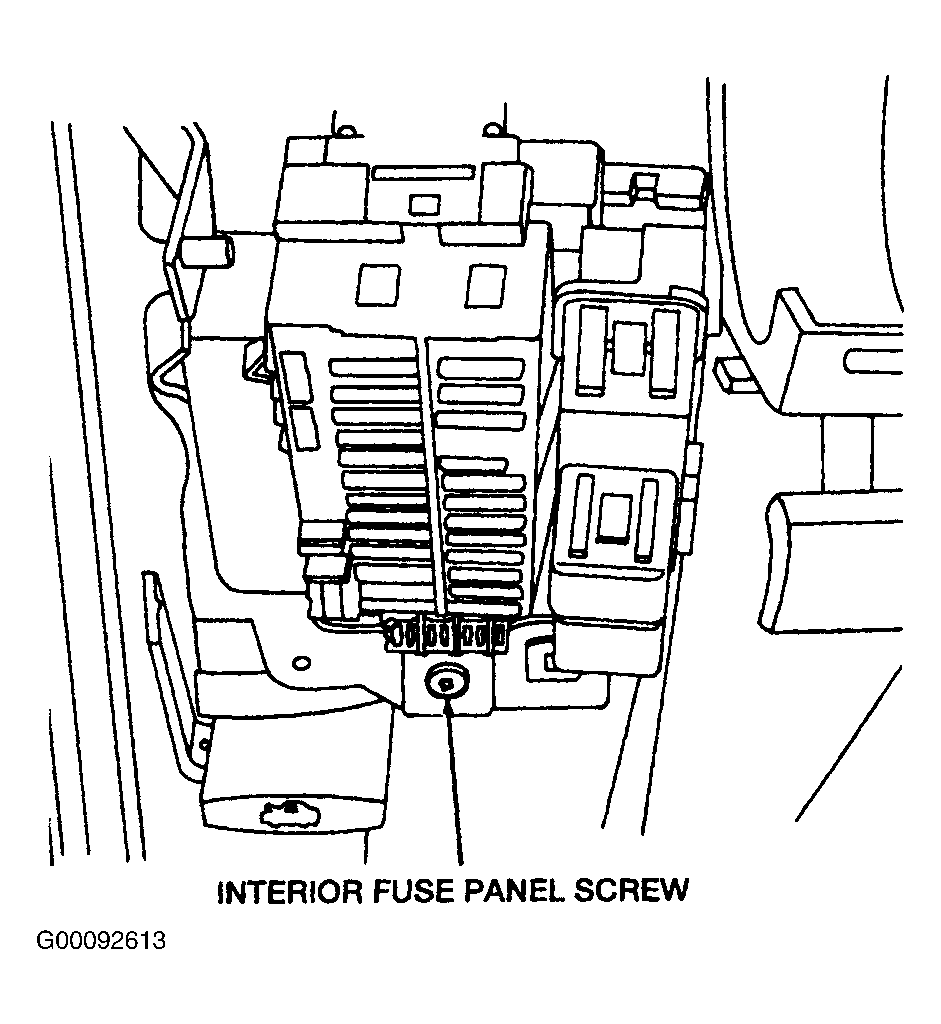

Fig 8: View Of Interior Fuse Panel Screw Location

Courtesy of FORD MOTOR CO.

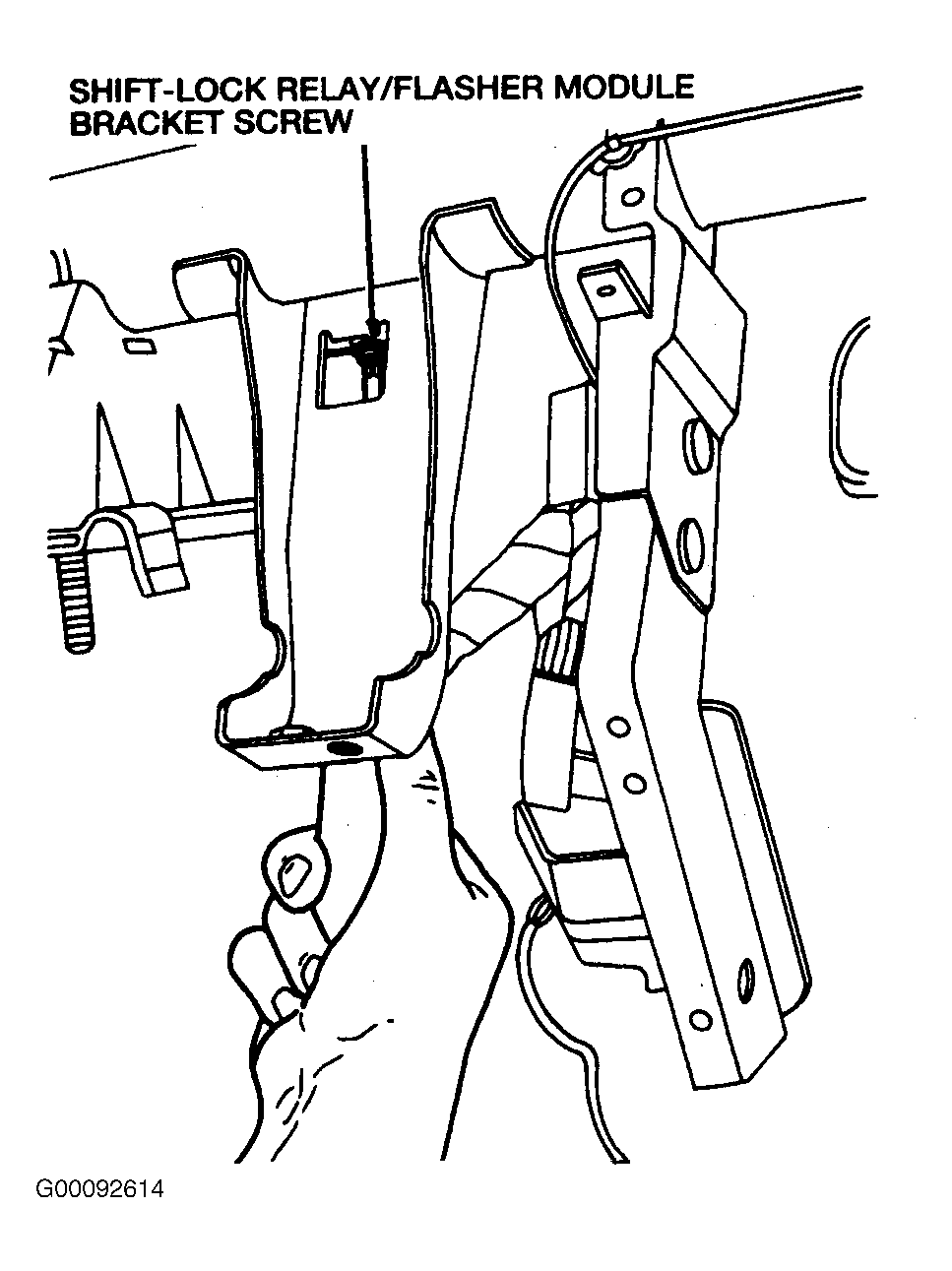

Fig 9: View Of Shift-Lock Relay/Flasher Module Bracket Screw

Courtesy of FORD MOTOR CO.

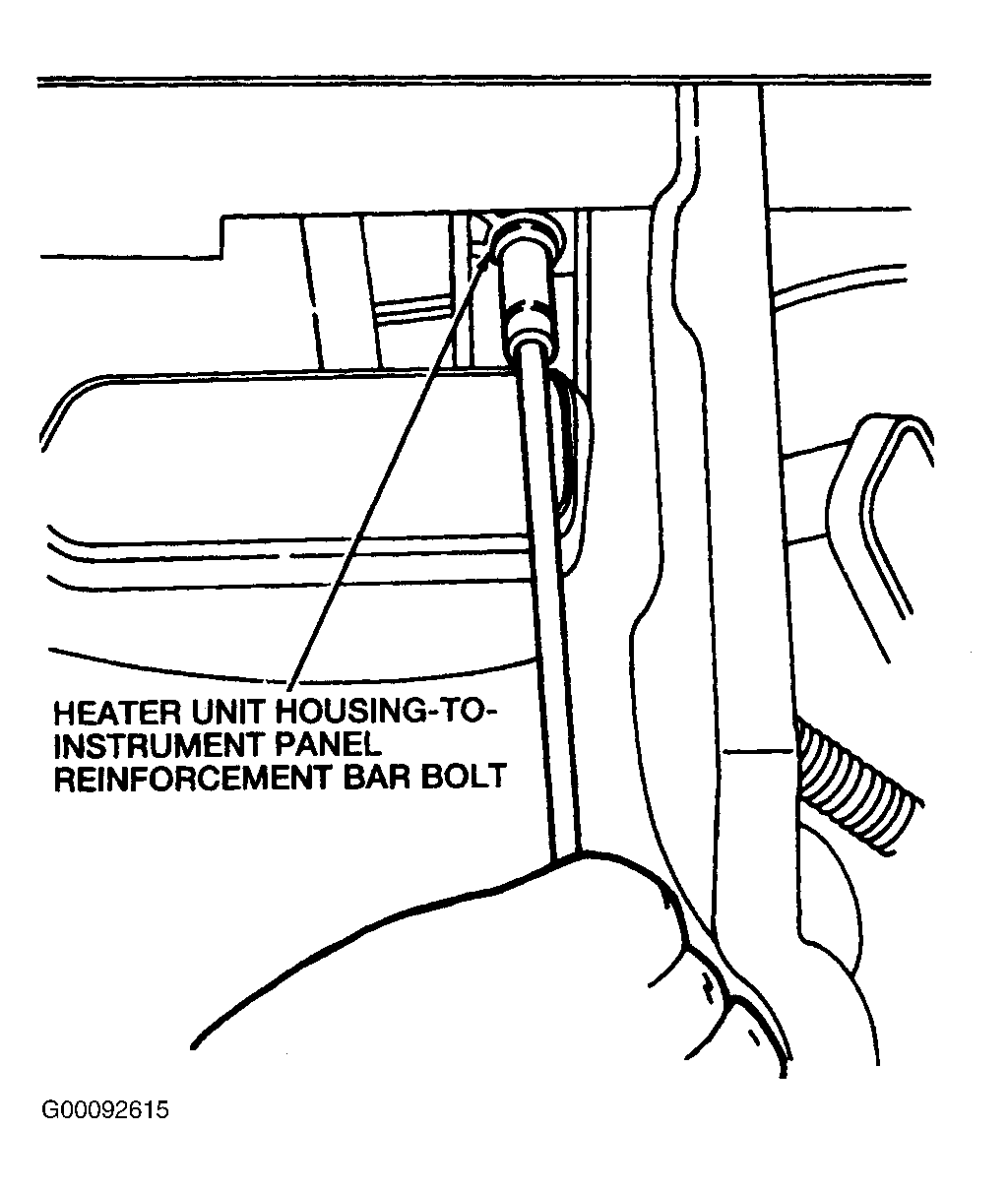

Fig 10: Removal Of Heater Unit Housing-To-Instrument Panel Reinforcement Bar Bolt

Courtesy of FORD MOTOR CO.

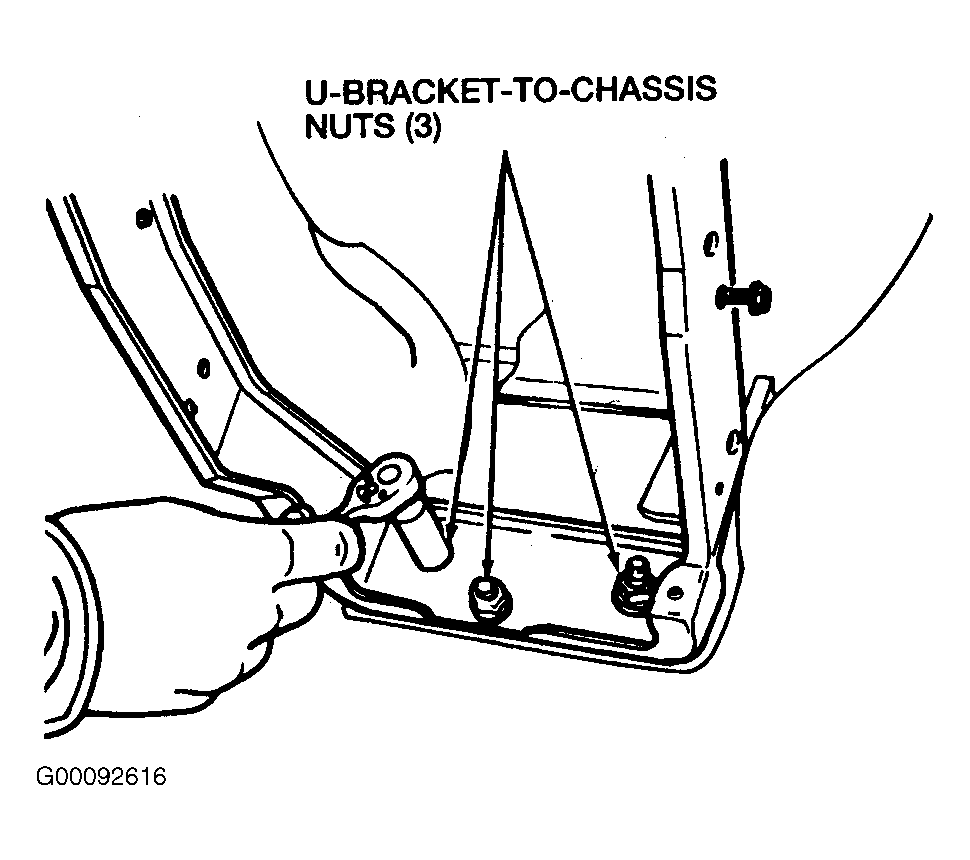

Fig 11: View Of U-Bracket-To-Chasis Nuts

Courtesy of FORD MOTOR CO.

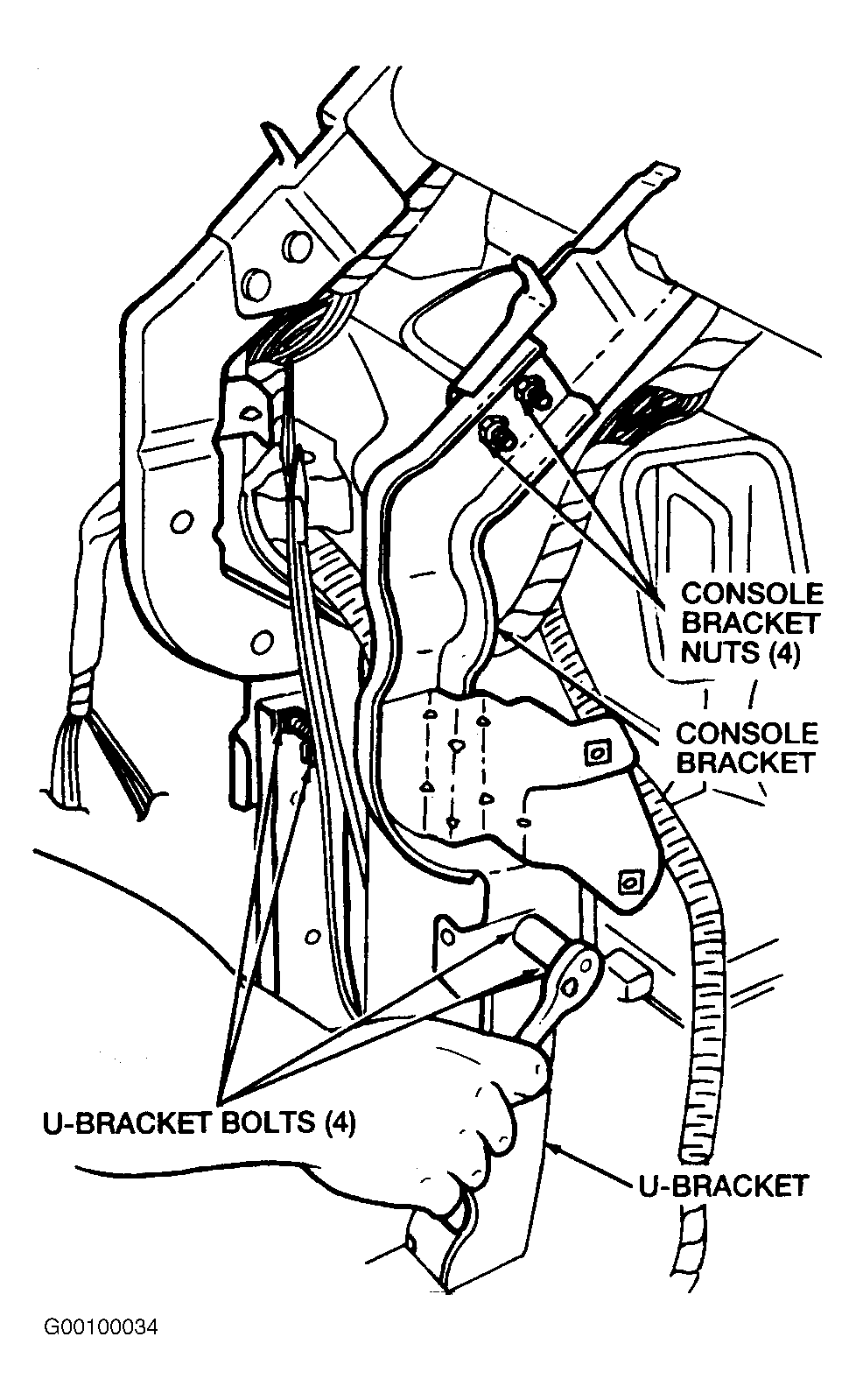

Fig 12: View Of U-Bracket Bolts Location

Courtesy of FORD MOTOR CO.

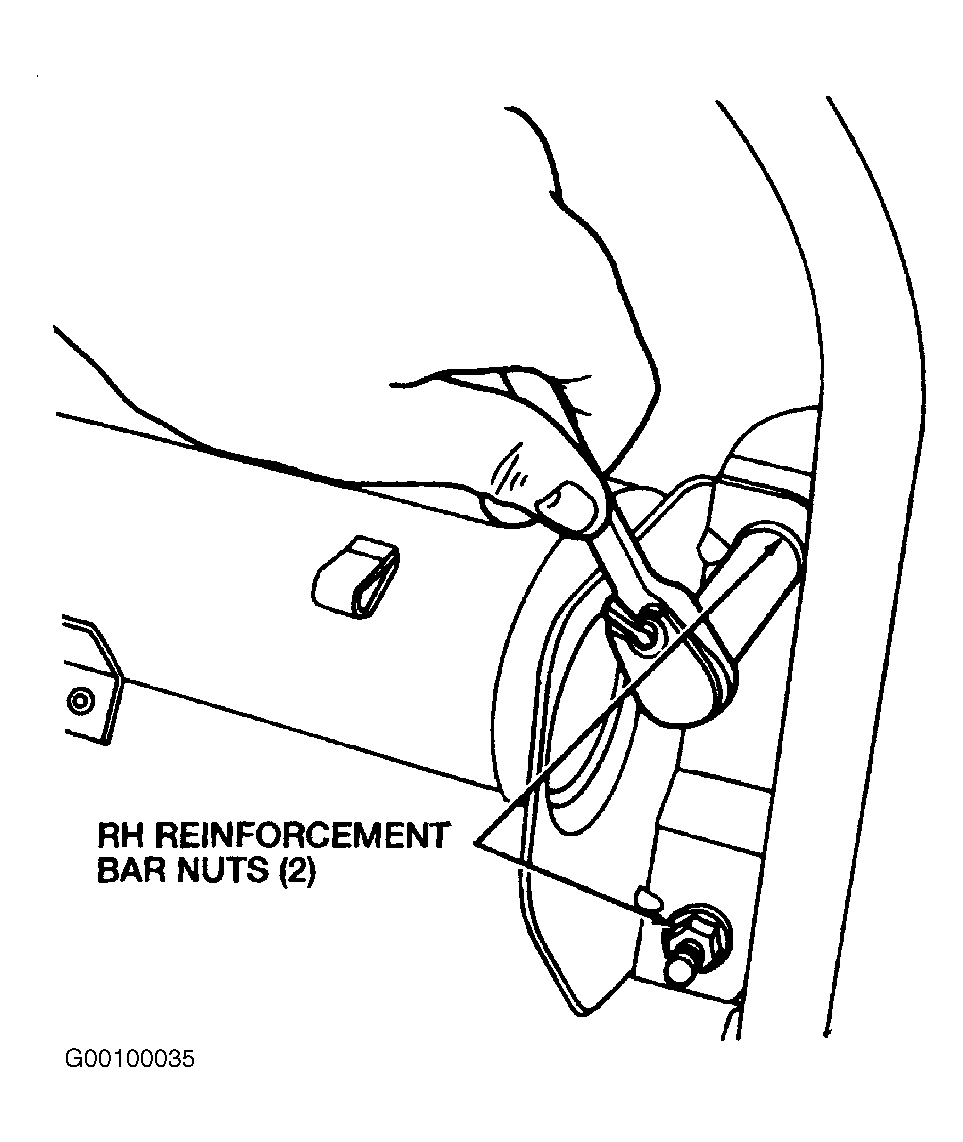

Fig 13: View Of right hand Reinforcement Bar Nuts

Courtesy of FORD MOTOR CO.

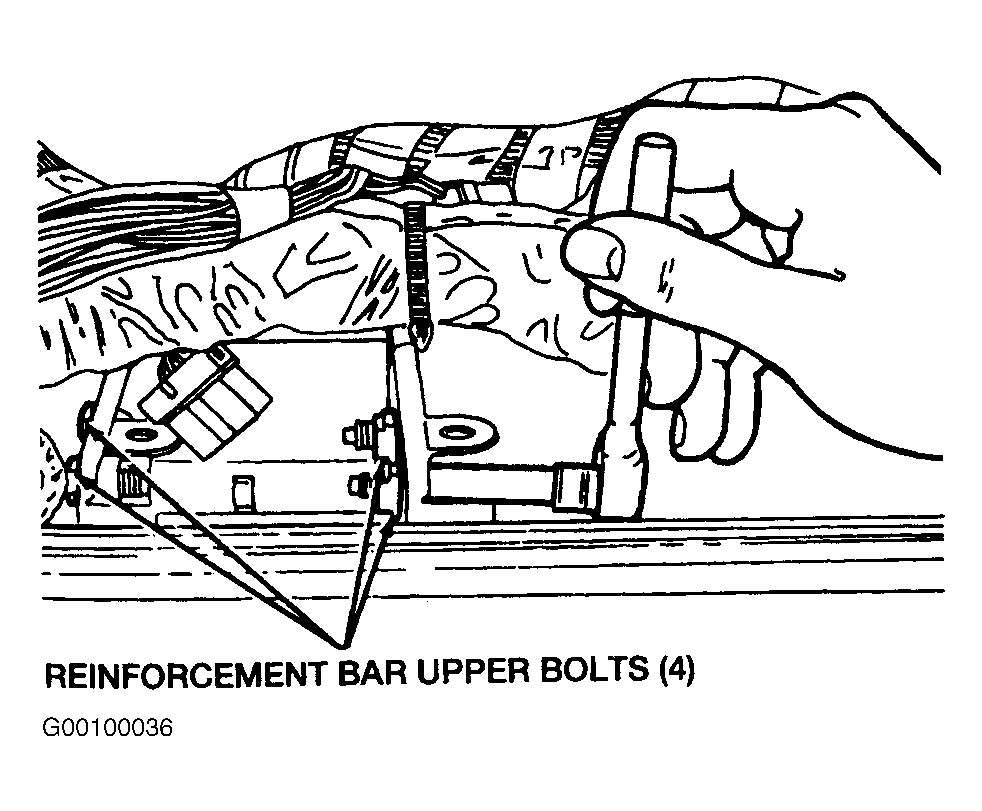

Fig 14: View Of Reinforcement Bar Upper Bolts
