Removal & Installation

  1. Disconnect the negative battery cable.
  2. Remove the door jamb switch screw. See Fig 1 .
  3. Pull the door jamb switch from the chassis.
  4. Disconnect the door jamb switch electrical connector and remove the door jamb switch. To install, reverse the removal procedure. See Fig 2 .

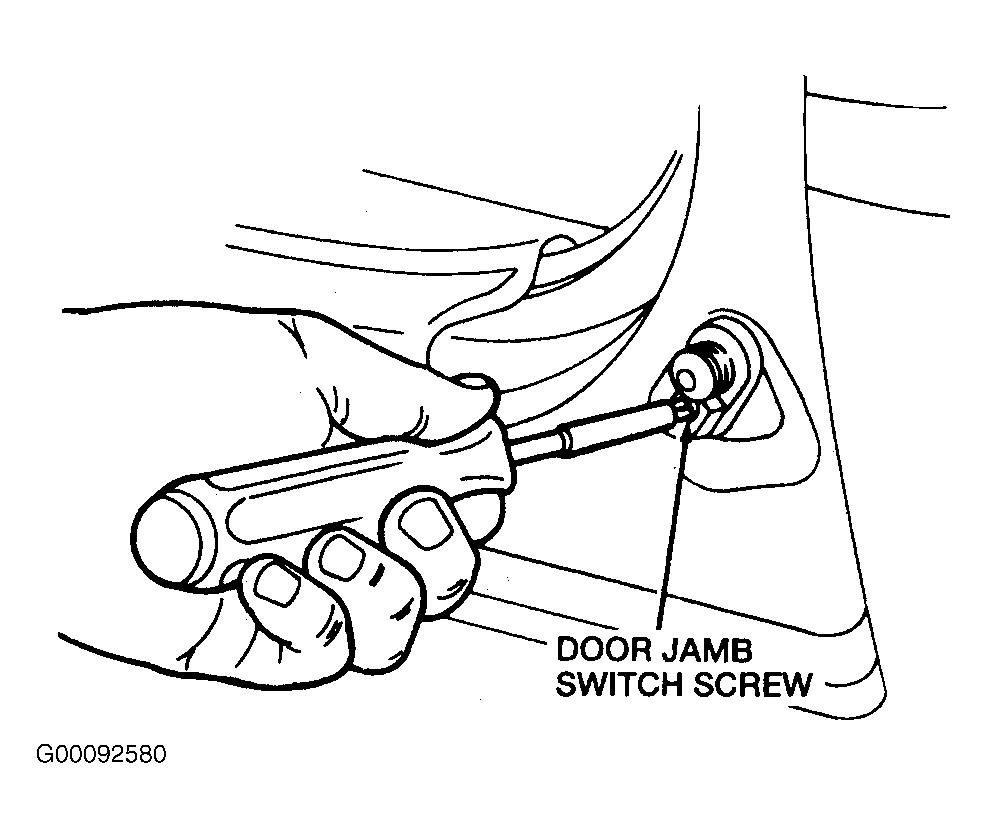

Fig 1: View Of Door Jamb Switch Screw
G00092580Courtesy of FORD MOTOR CO.

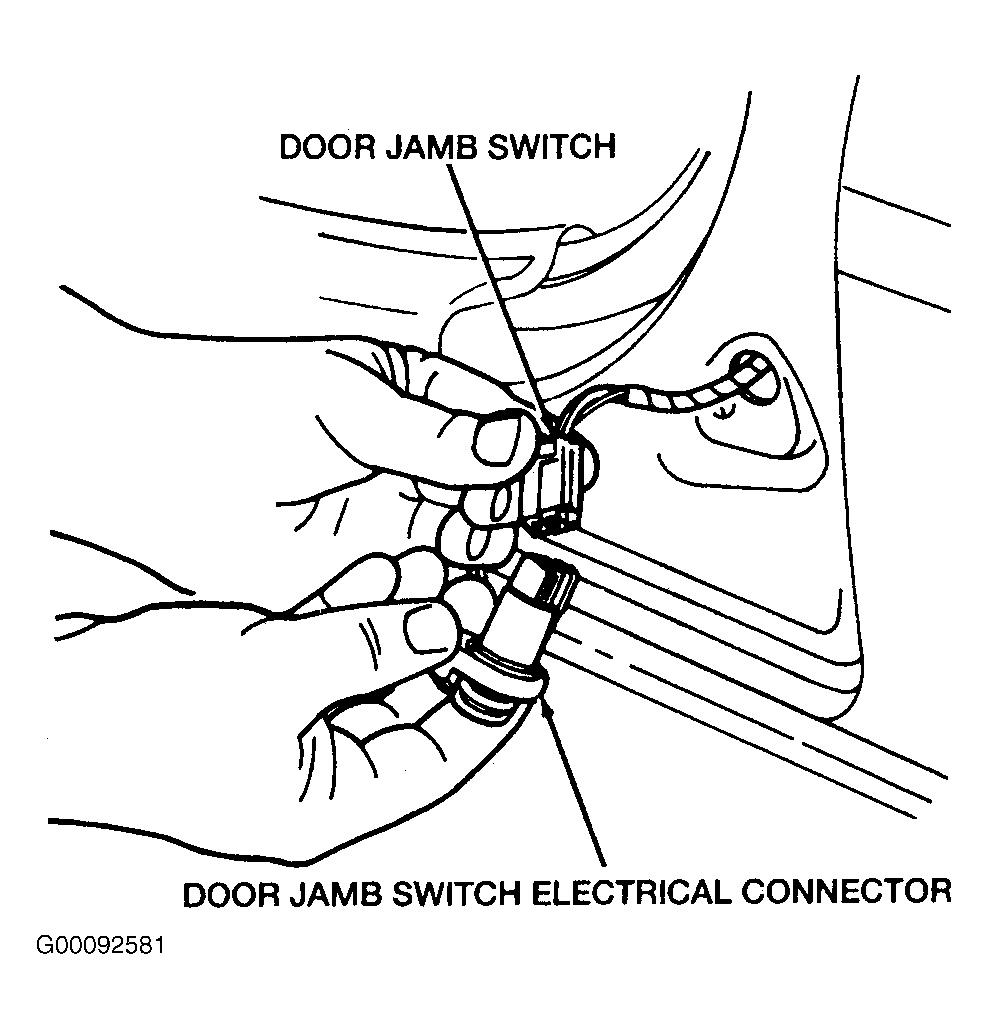

Fig 2: View Of Door Jamb Switch Electrical Connector
G00092581Courtesy of FORD MOTOR CO.
