Instrument Panel & Console

The instrument panel houses the controls for most of the vehicle's electrical systems. The glove compartment is located in the upper right hand side of the instrument panel. The left hand side of the instrument panel frames the steering column and houses the instrument cluster, the instrument cluster bezel, and the power mirror switch. For instrument cluster bezel information and for removal and installation procedures. See INSTRUMENT CLUSTER BEZEL  .

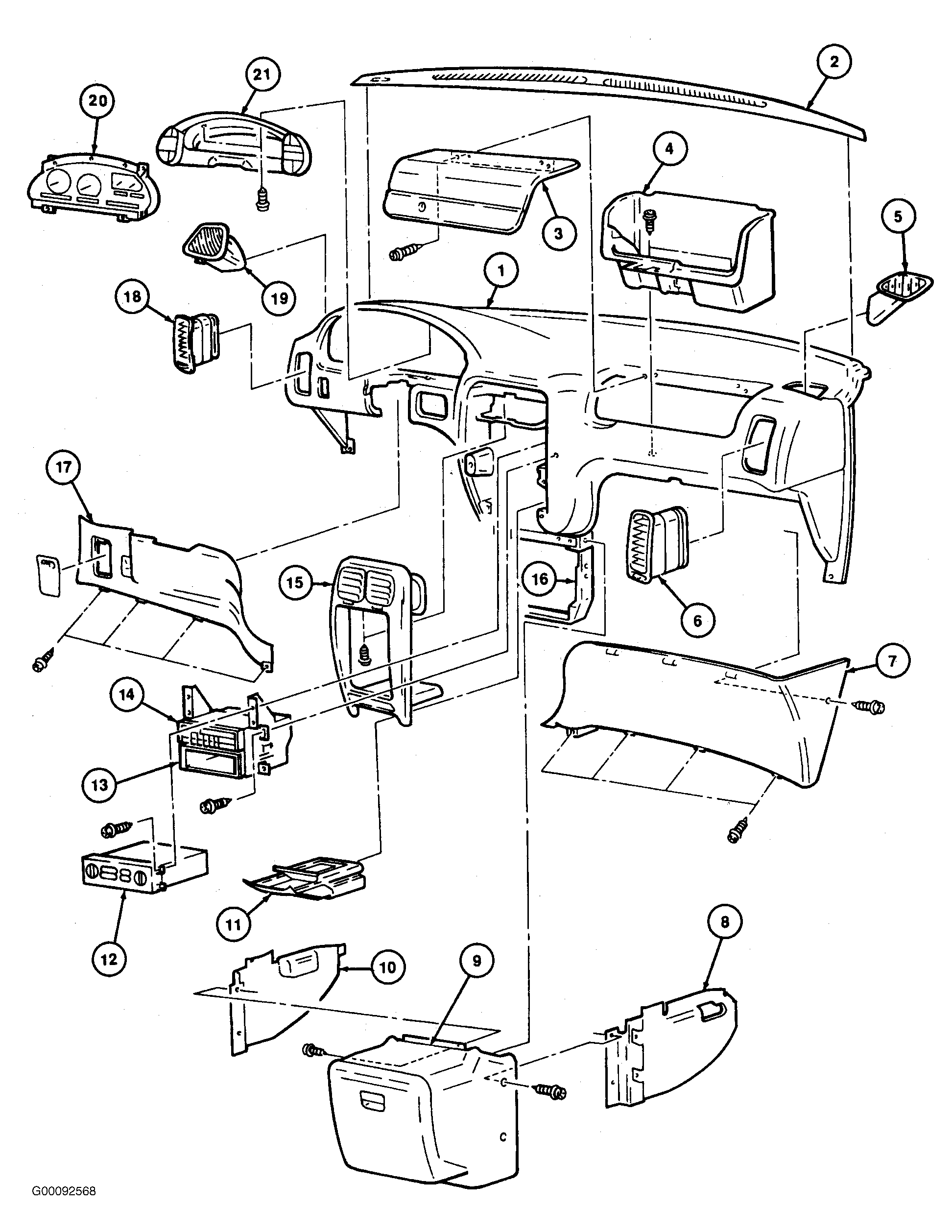

Fig 1: Exploded View Of Instrument Panel Components
G00092568Courtesy of FORD MOTOR CO.

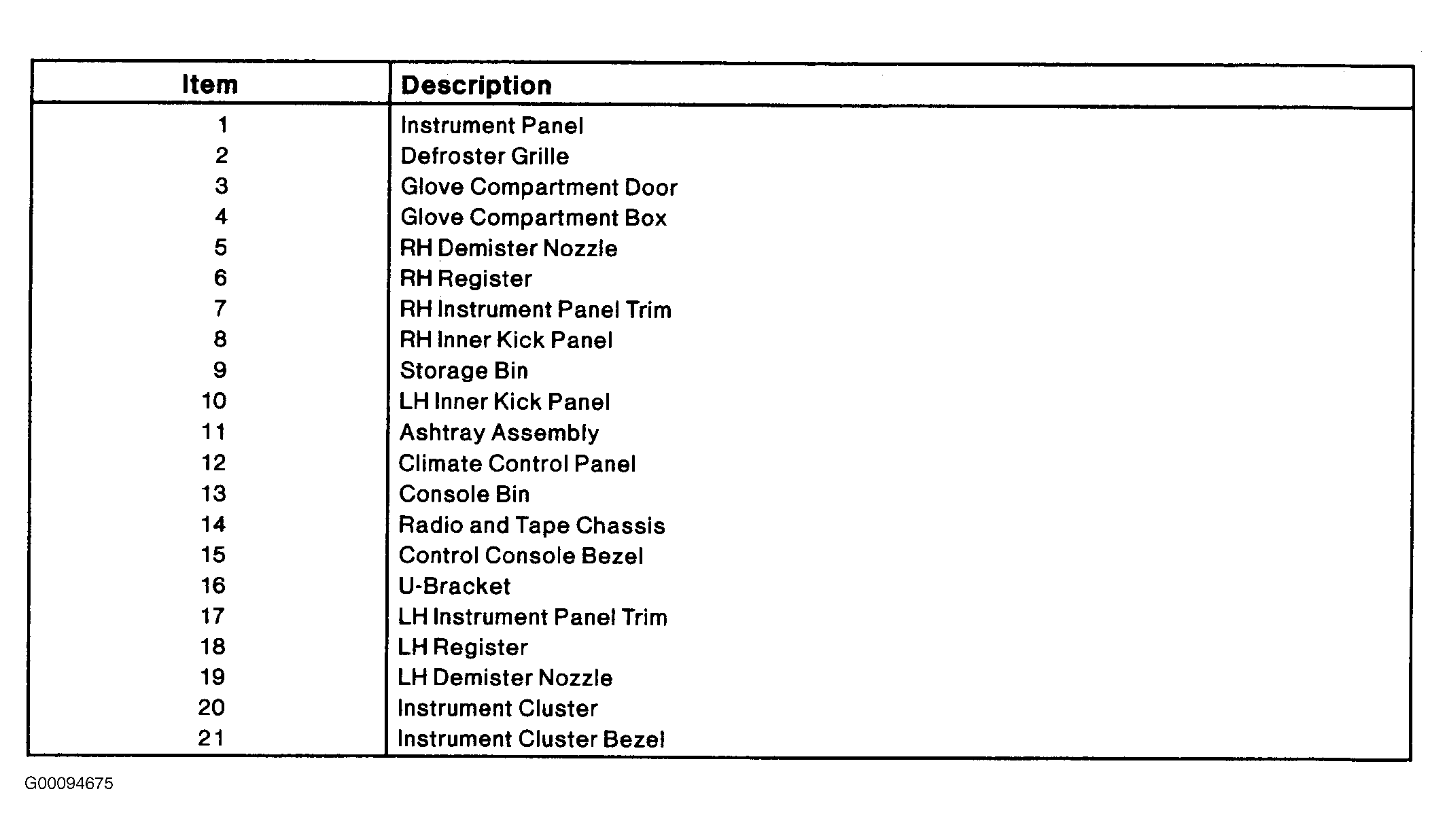

Fig 2: Legend For Exploded View Of Instrument Panel Components
G00094675Courtesy of FORD MOTOR CO.
