Component Locations

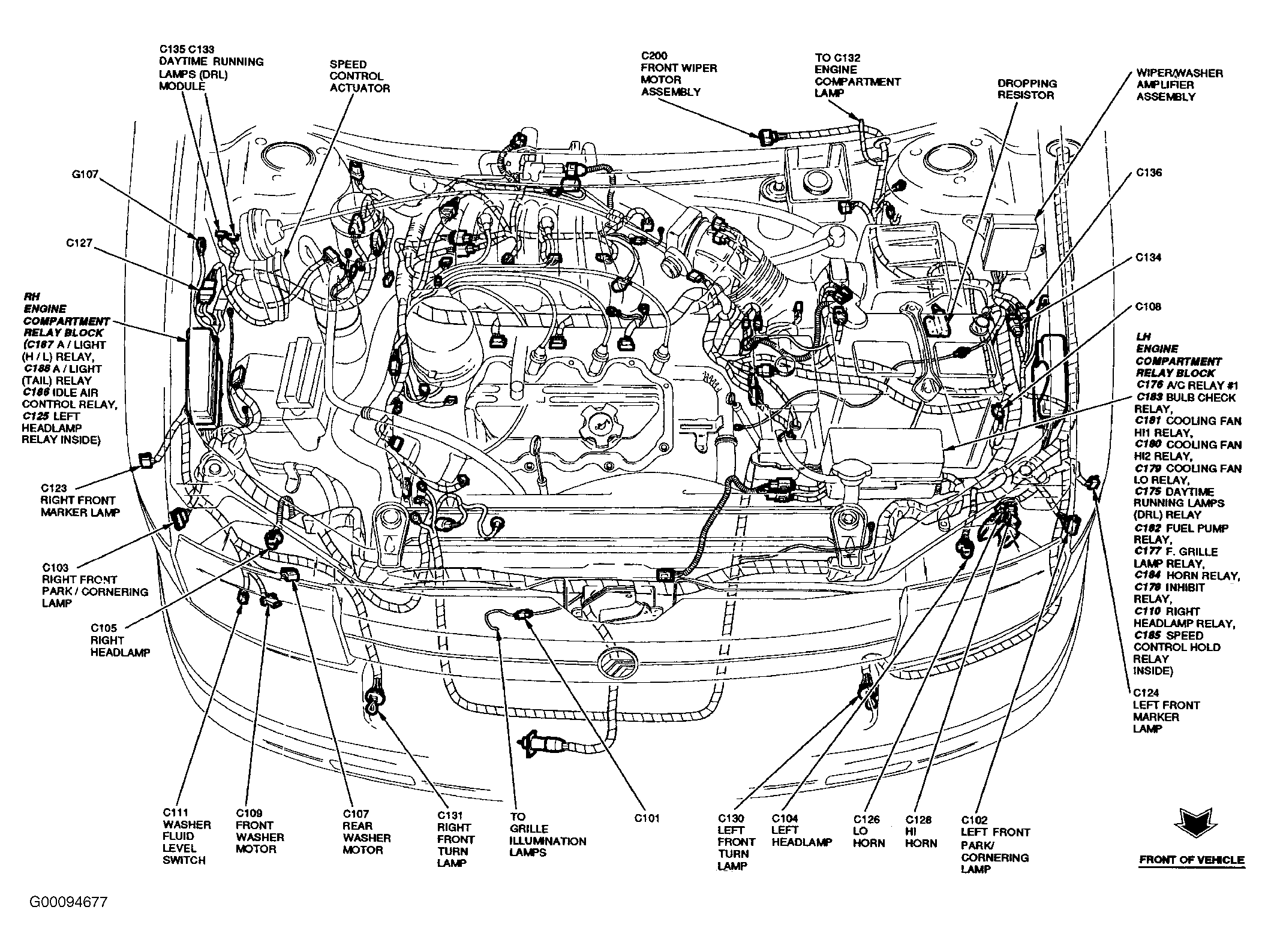

Fig 1: Locating Ground G107 & Left Hand Engine Compartment
G00094677Courtesy of FORD MOTOR CO.

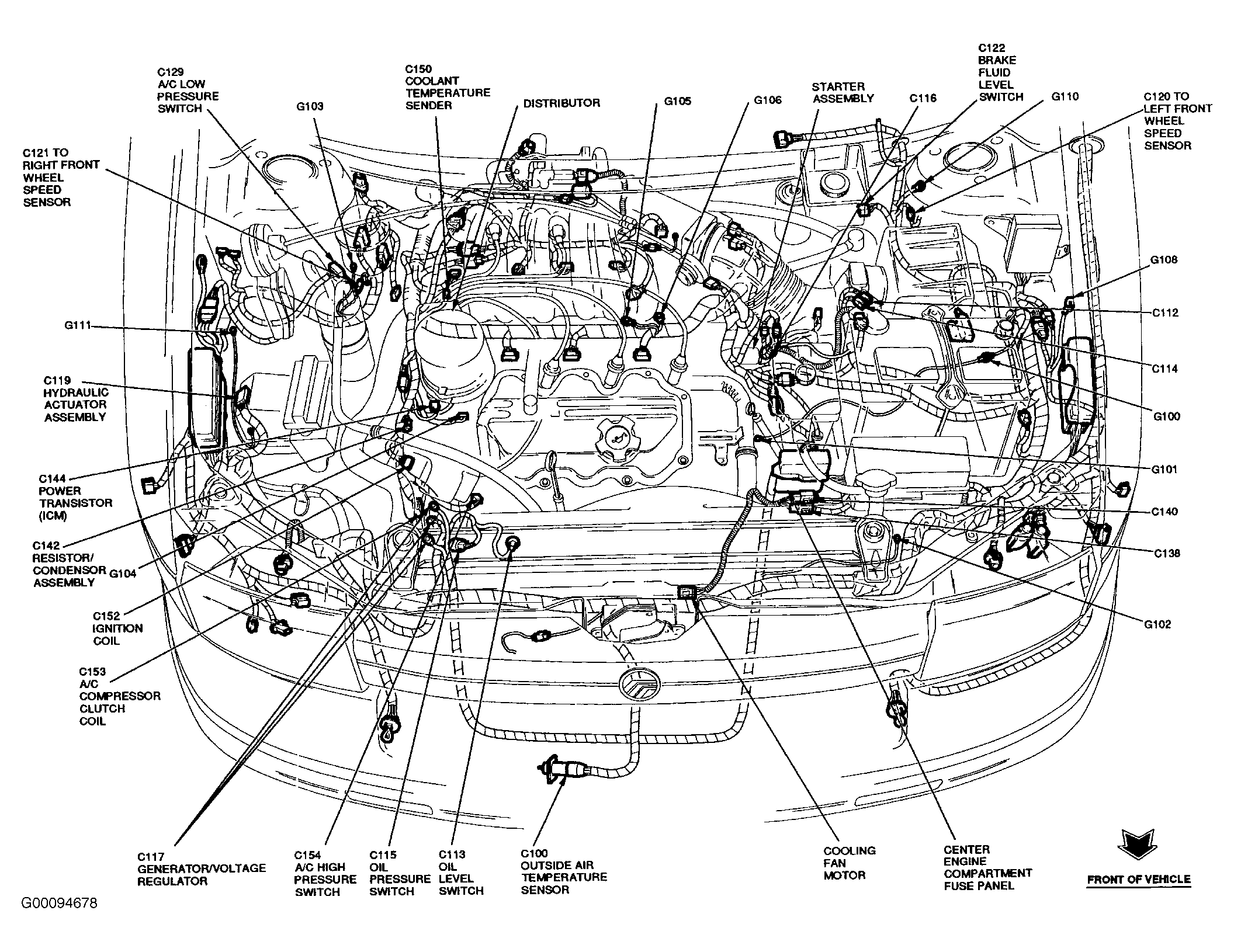

Fig 2: Locating Grounds G108 & G110
G00094678Courtesy of FORD MOTOR CO.

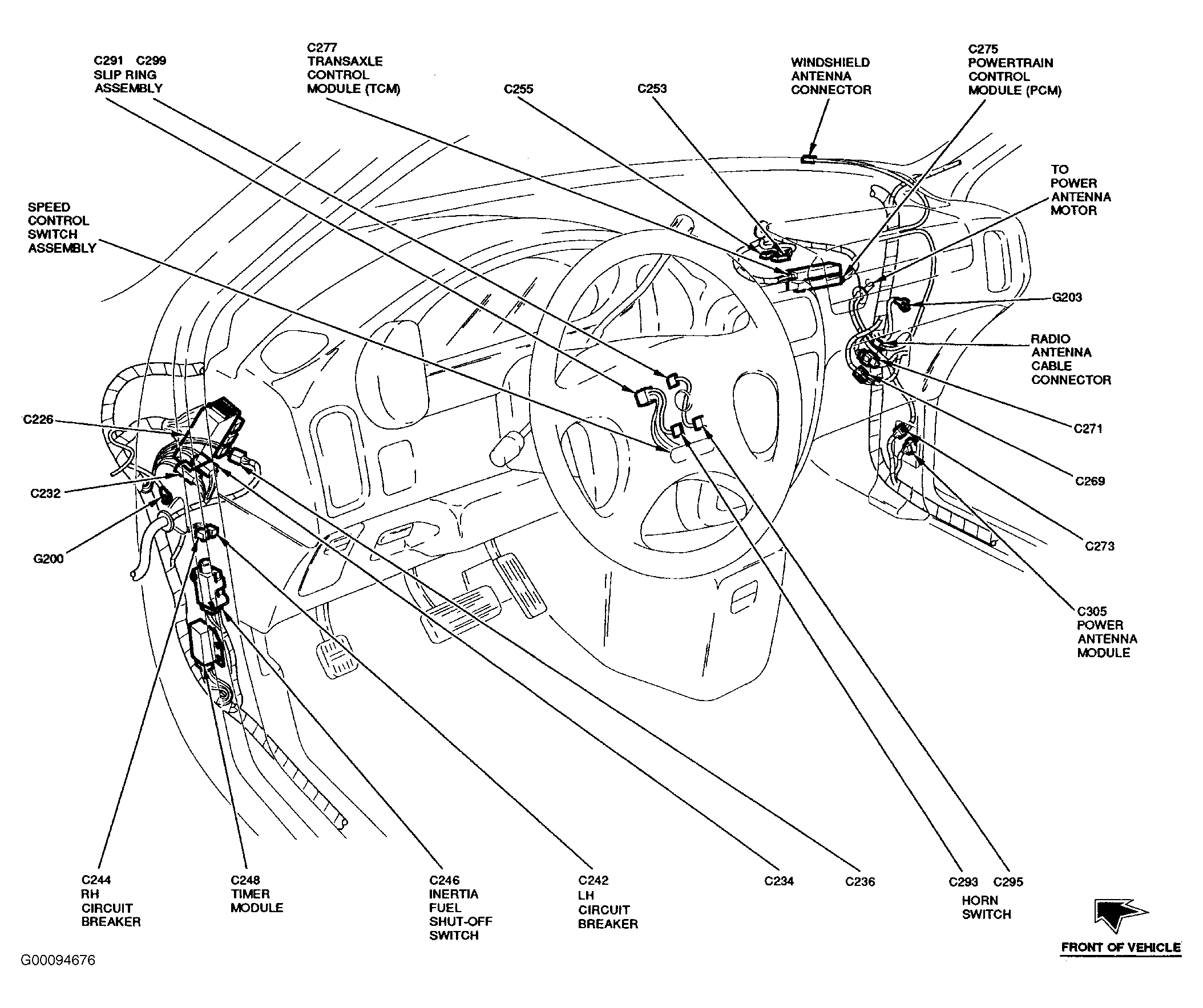

Fig 3: Locating Grounds G200 & G203
G00094676Courtesy of FORD MOTOR CO.

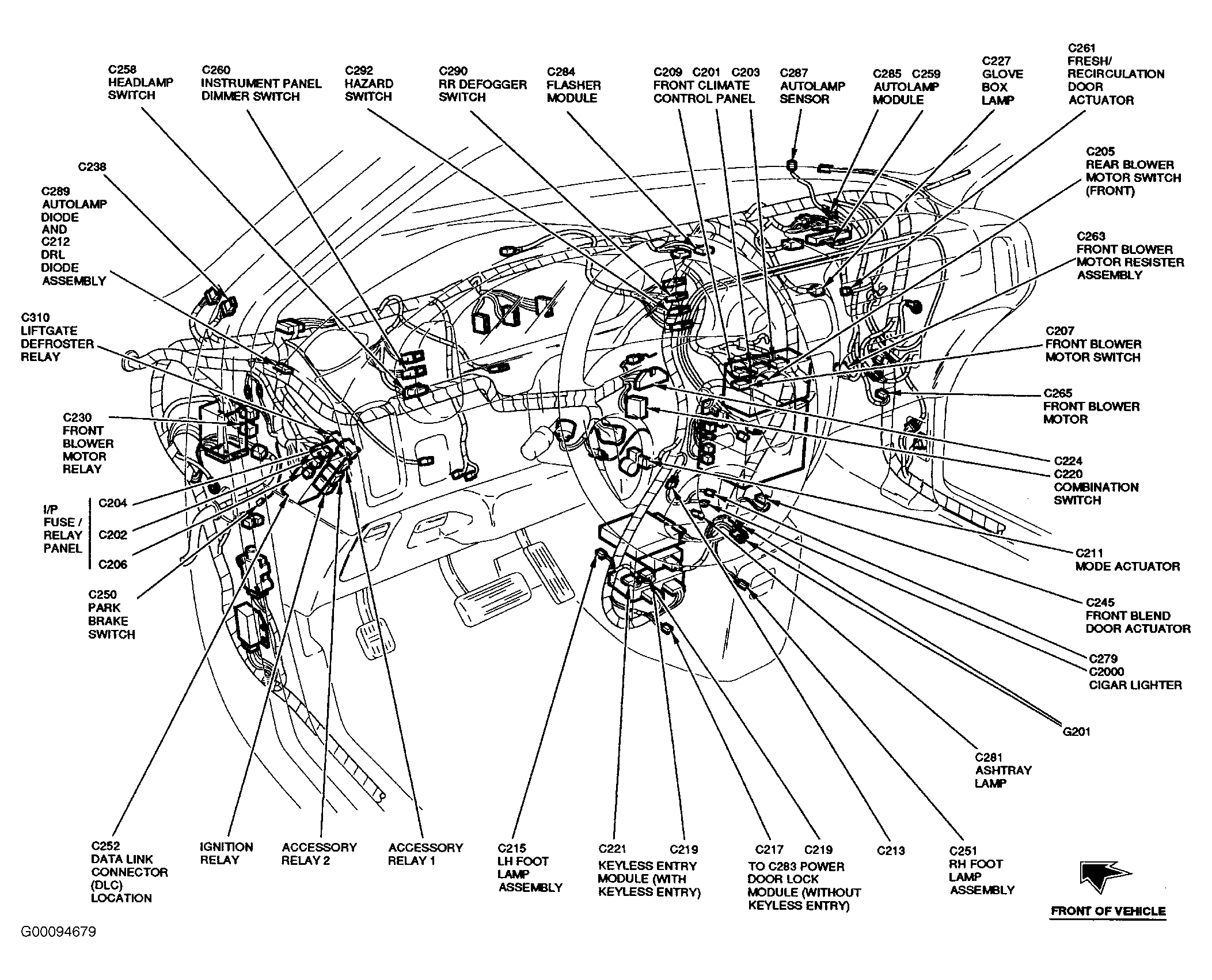

Fig 4: Locating Ground G201
G00094679Courtesy of FORD MOTOR CO.
