Shock Strut & Spring: Installation

To install, reverse removal procedure. Ensure spring is properly located in upper and lower spring seats. See Fig 1 and Fig 2. Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS TABLE at end of article.

Fig 1: Positioning Spring in Spring Seats

Courtesy of FORD MOTOR CO.

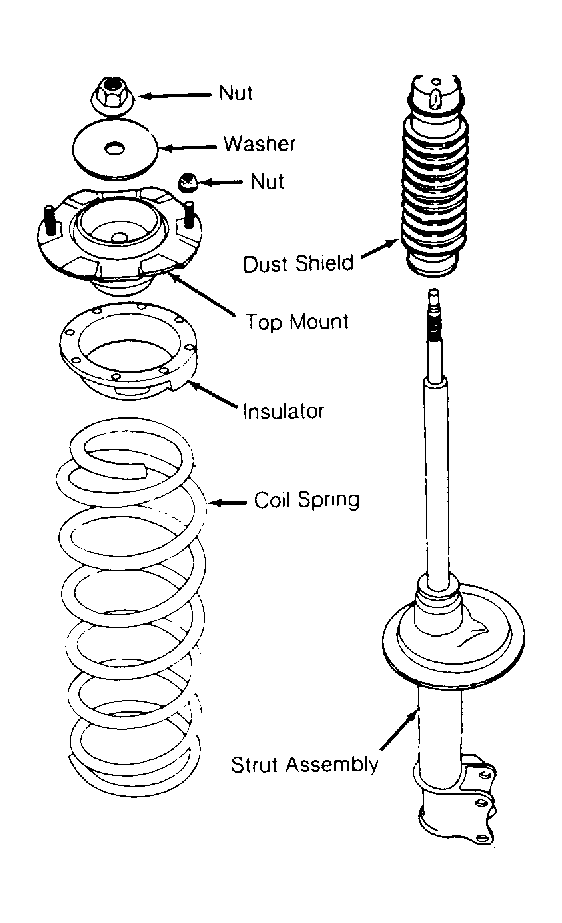

Fig 2: Exploded View of Strut, Spring & Upper Mount Components

Courtesy of FORD MOTOR CO.
