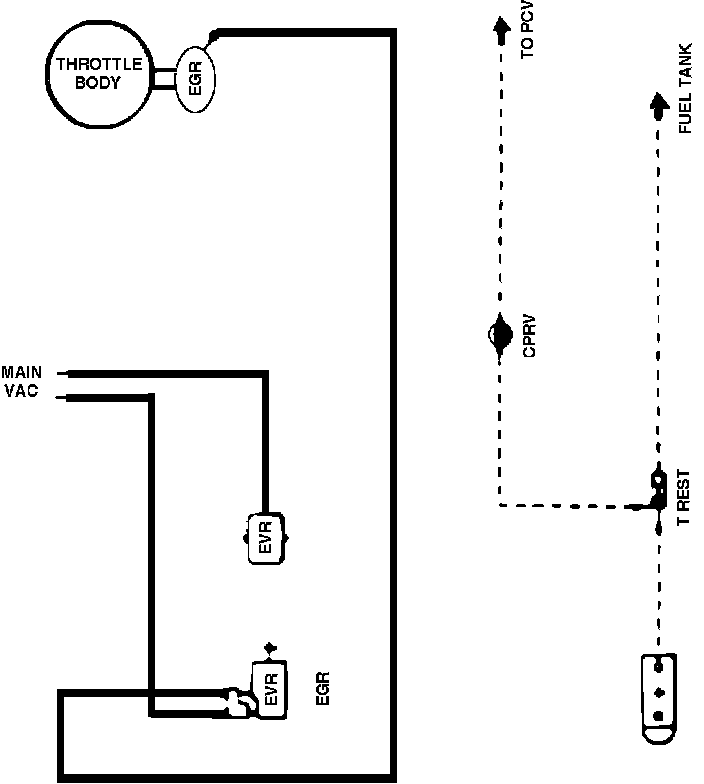

Emission Control Vacuum Diagram
Emission Control Vacuum Diagram
Emission Control Vacuum Line Routing:
