Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Block Diagrams

Block Diagrams

*** Updated by TSB #9111B23 June 14, 1991

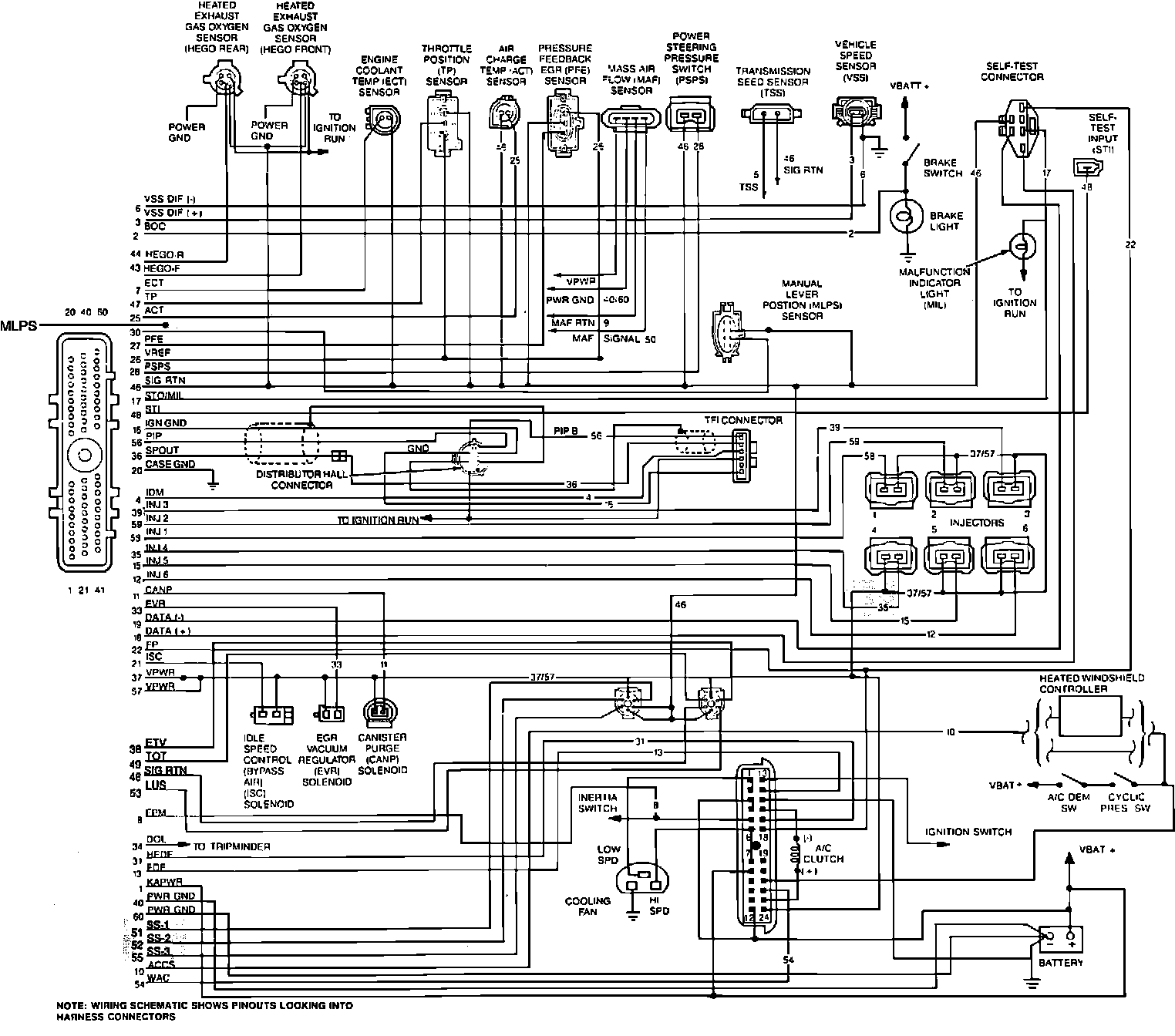

EEC-IV Wiring Diagram:
