With Analog Instrument Cluster

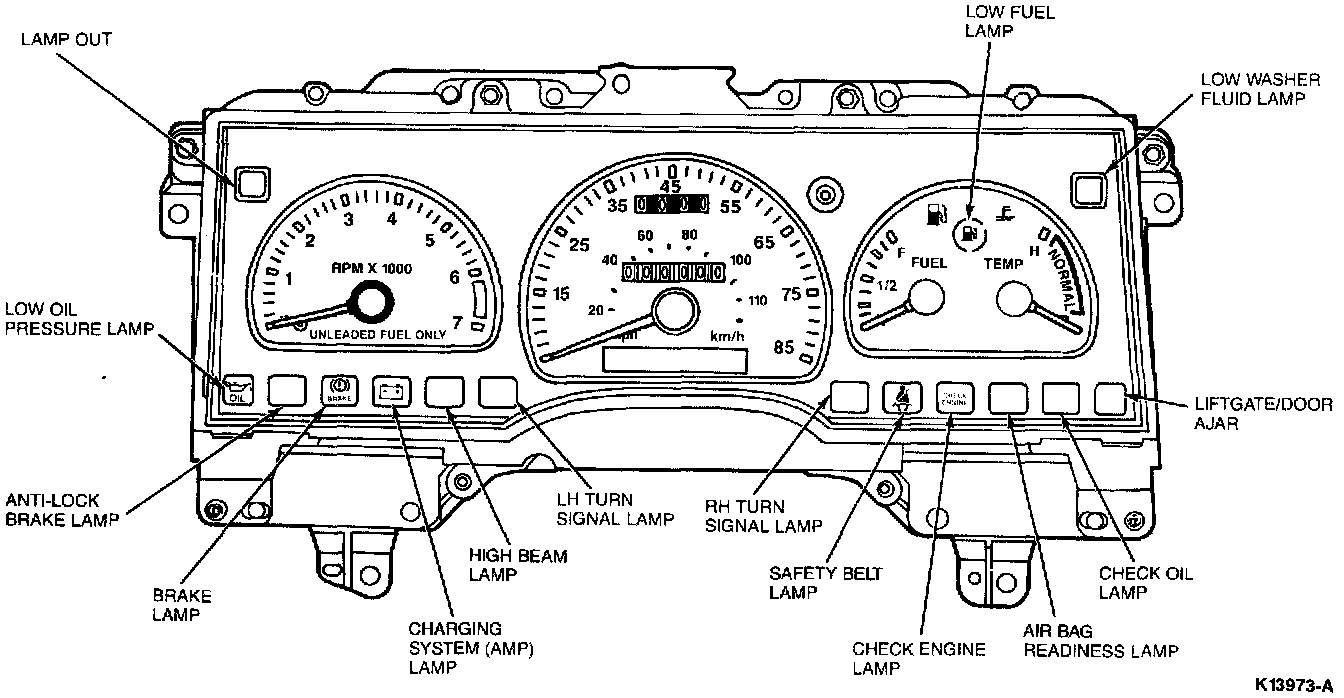

INSTRUMENT CLUSTER






The instrument cluster contains a speedometer with trip odometer, fuel gauge, temperature gauge and tachometer. The cluster also contains a high beam, turn signals, fasten safety belts, brake, oil pressure, liftgate ajar (station wagon only) and charge warning indicators. An optional cluster with diagnostic warning indicators is also available.
