Home >> Mercury >> 1991 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> C Indicator ON or False Cycling >> C2a to C3a

C2a to C3a

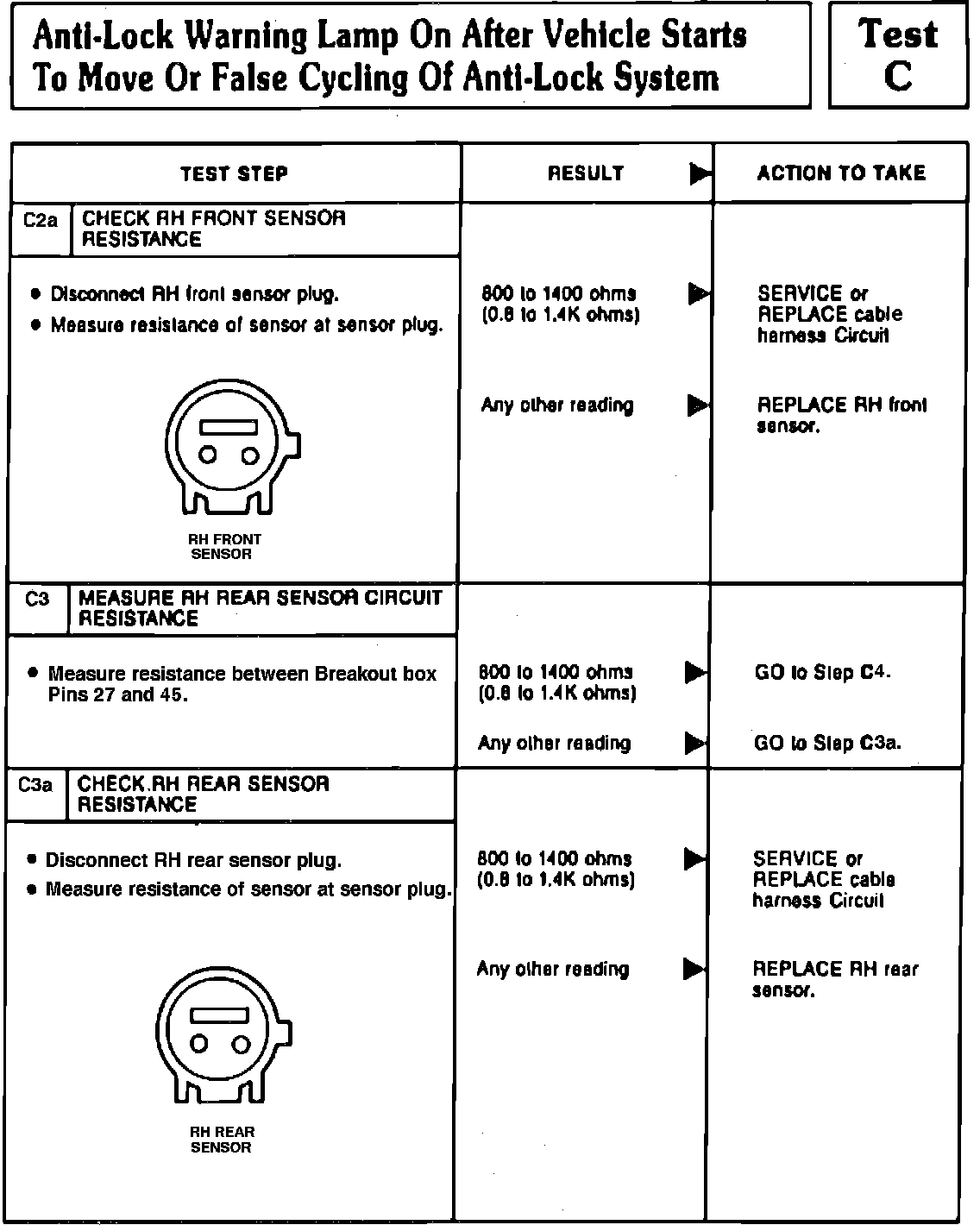

Fig. 108 Tests C2a, C3 & C3a (ABS Lamp ON After Vehicle Starts):
