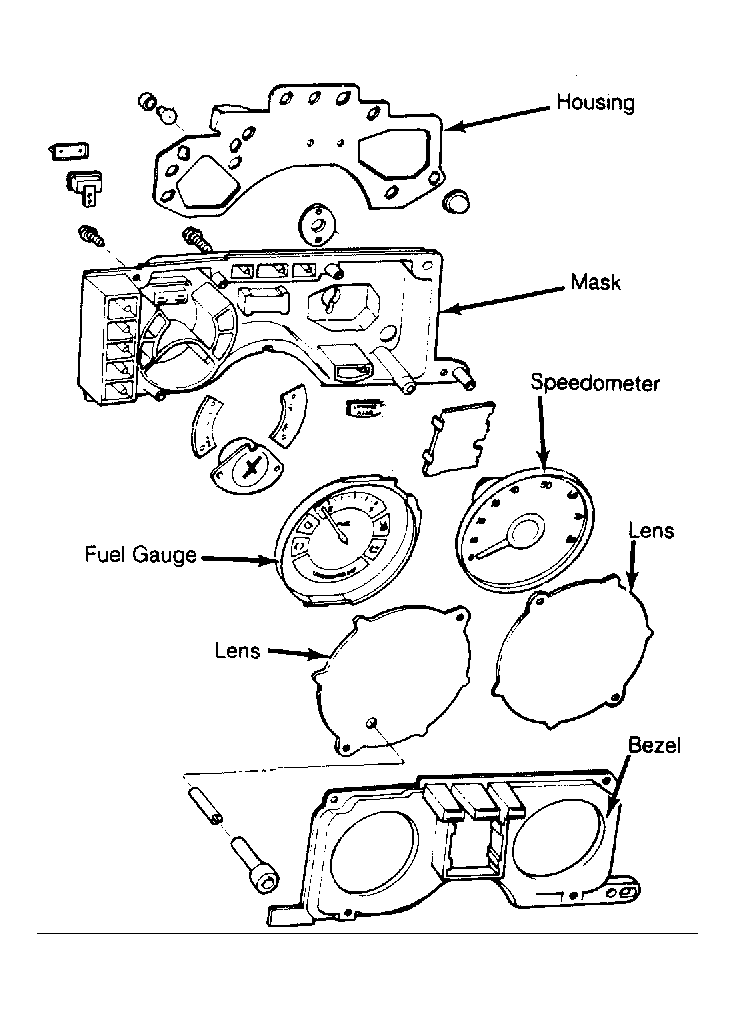

Instrument Cluster: Installation
- Lubricate speedometer drive hole with silicone lubricant. Install cluster and attach electrical plug. Route transmission indicator cable and place indicator bracket on column. Place selector lever in "P" position and align indicator so it shows lever in "P".
- Connect speedometer cable, then install steering column cover and trim panels. Connect battery ground cable.
Install speedometer cable and wiring. Position cluster on dashboard and install screws. Install clamp on steering column and hook wire over pin. Place transmission in "D" and move clamp until pointer is directly behind "D" on cluster. Tighten clamp, install trim covers, and connect battery ground cable.
