4.3L (262") V6 Diesel Front Wheel Drive 1)

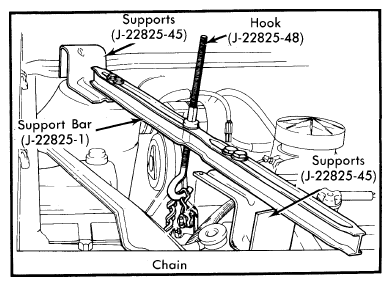

Disconnect negative battery cable at battery. Install engine support fixture (J-22825-45, J-22825-1, and J22825-48) as shown in Figure .  Raise vehicle on hoist.

  1. Remove left and center engine mount stud nuts. Remove 2 front cradle mount bolts. Lower cradle. Remove 4 flywheel cover bolts. Remove flywheel cover (2 pieces).
  2. Remove starter shield nut at starter. Remove flex shield. Disconnect wires from starter. Remove 2 starter bolts. Remove starter.
