Circuit Breaker

Headlights  - An 18 amp. C.B. is integral with headlight switch.

Windshield Wipers  - An 8.25 amp. C.B. is located in fuse panel.

Power Windows  - A 20 amp. C.B. is located on the fuse panel on 2-door models, or at the starter relay on 4-door models.

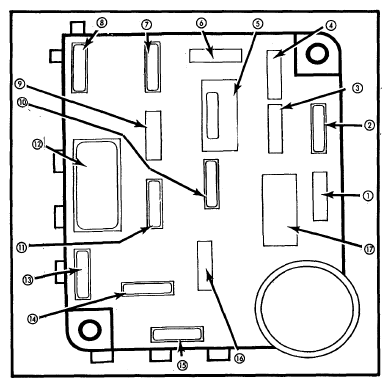

Fig 1: Fuse Block For All Models Except Escort, Exp, Ln7 & Lynx

Courtesy of FORD MOTOR CO.

Power Door Locks and Seats  - A 30 amp. C.B. is located in fuse panel.

Door Cigar Lighters  - A 30 amp. C.B. is located in fuse panel.

Power Tailgate Window  - A 30 amp. C.B. is located in fuse panel.
