Chrysler Corp.

Adjust parking brake after service brake adjustment. Remove adjusting hole covers. Insert adjusting tool (C-3784; thin-bladed screwdriver on Omni & Horizon) into star wheel and rotate wheel until wheel turns with slight drag (locked on Omni & Horizon). Back off star wheel (releasing adjuster lever if equipped) until wheels rotate freely with no drag. Back off 10 clicks on Omni and Horizon. Adjustments must be equal on both wheels.

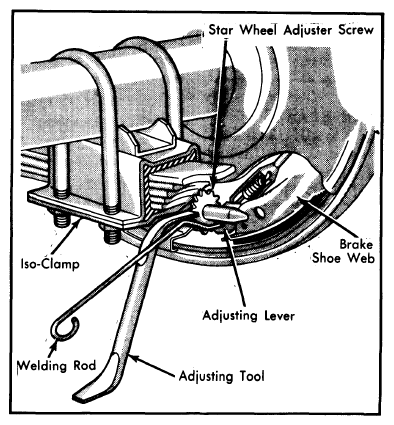

NOTE: On models equipped with Iso-Clamp rear suspension, bend rod to match angle of adjusting tool plus a 3/4 reverse bend at contact end. See Figure.
