Axle Shafts & Bearings: Installation

  1. Lubricate bearing with rear axle lubricant and install with driver (T78P-1225-A). Install seal with driver (T78P-1177-A).

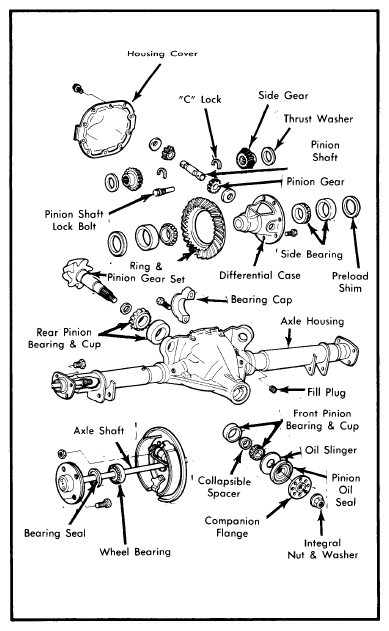

    Fig 1: Exploded View of Ford Motor Co. 7 1/2" & 8 1/2" Integral Housing Axle Assembly
    G09330613Courtesy of FORD MOTOR CO.
  2. Insert axle in housing with care to avoid damage to oil seal. Install "C" locks and push shafts outboard to seat locks in counterbore of differential side gears.
  3. Replace pinion gears and washers (if removed) and install pinion shaft and lock bolt. Apply silicone sealant in a 1/8" to 3/16" bead on face of carrier housing and install housing cover.
    NOTE: No gasket other than the silicone seal is used. Cover assembly must be installed within 15 minutes of application or new sealant must be applied.
