Instrument Cluster: Installation

1. Install cluster, routing transmission indicator cable to steering column. Mount clamp on column, then place transmission in "D" or "O" position. Adjust indicator cable clamp until pointer is directly behind "D" or "O" then tighten clamp.

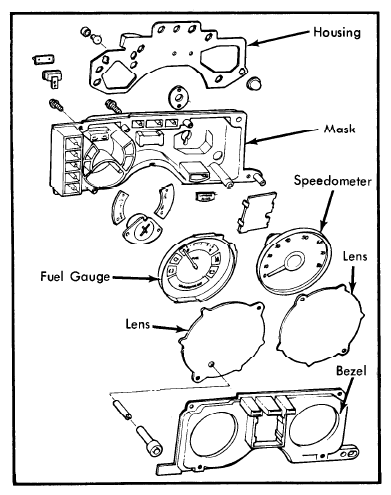

   Fig 1: Pinto & Bobcat Instrument Panel

   Courtesy of FORD MOTOR CO.
2. Connect speedometer cable, then install steering column cover and trim panels. Connect battery ground cable.

To install, reverse removal procedure.

1. Position cluster on dashboard and connect wiring. Install cable clamp on column and hook cable on pin. Place transmission in "D" and adjust clamp until pointer is lined up directly behind "D". Tighten screw.

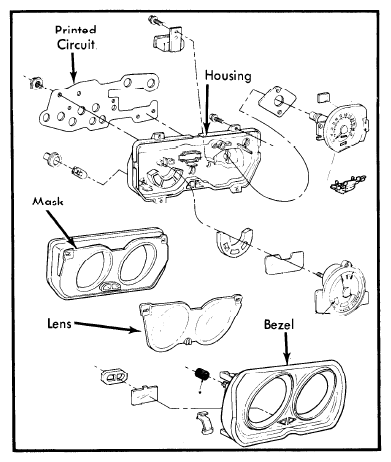

   Fig 1: Fairmont, Zephyr Instrument Cluster

   Courtesy of FORD MOTOR CO.
2. Replace lens and mask and install screws. Reverse removal procedure to complete installation.

To install, reverse removal procedure.

Install speedometer cable and wiring. Position cluster on dashboard and install screws. Install clamp on steering column and hook wire over pin. Place transmission in "D" and move clamp until pointer is directly behind "D" on cluster. Tighten clamp, install trim covers, and connect battery ground cable.

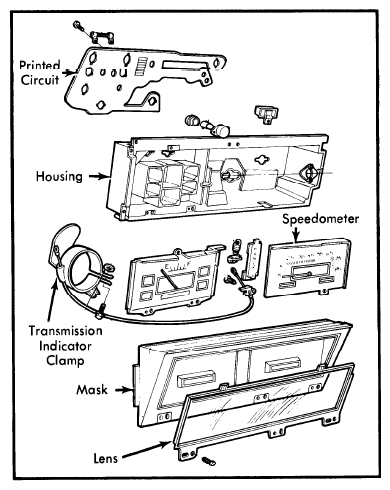

Fig 1: Thunderbird, Cougar XR-7 Instrument Cluster

Courtesy of FORD MOTOR CO.

To install, reverse removal procedure.
