Window Controls - Electric

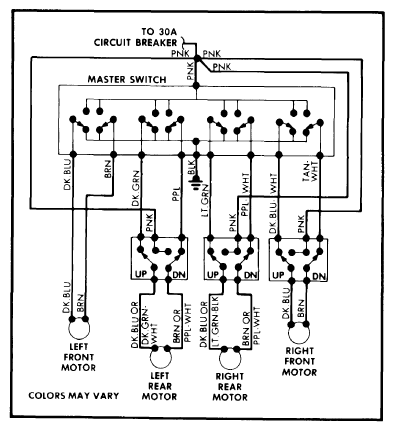

Fig 1: Power Window Wiring Diagram for General Motors (4-Door Models)

Courtesy of NOT AVAILABLE

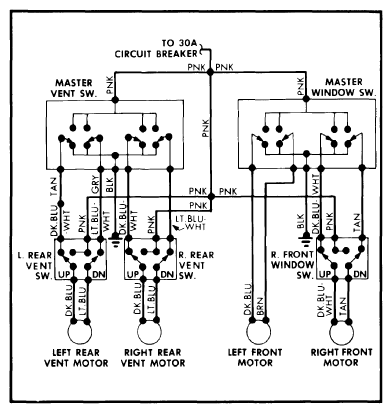

Fig 2: Power Window Wiring Diagram for General Motors (Power Rear Vents)

Courtesy of NOT AVAILABLE

Fig 3: Power Tailgate Window Wiring Diagram for General Motors

Courtesy of NOT AVAILABLE

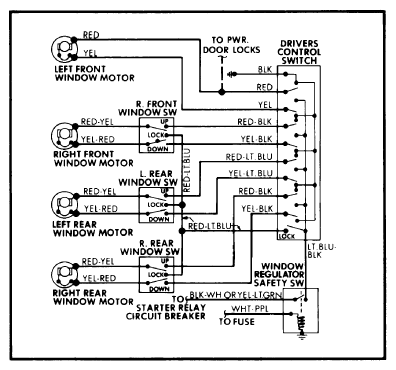

Fig 4: Power Window Wiring Diagram for Ford Motor Co. (4-Door Models)

Courtesy of NOT AVAILABLE

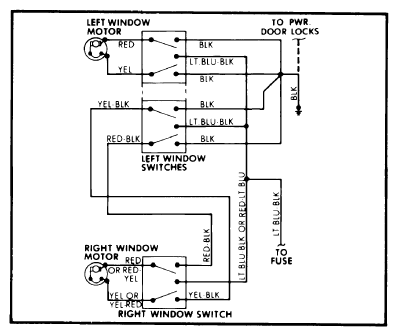

Fig 5: Power Window Wiring Diagram for Ford Motor Co. (Separate Master Switches)

Courtesy of NOT AVAILABLE
