Wiring Diagrams - Trunk Lid Latches & Window Controls - Electric
>>
Wiring Diagrams
>>
Trunk Lid Latches - Electric
Trunk Lid Latches - Electric

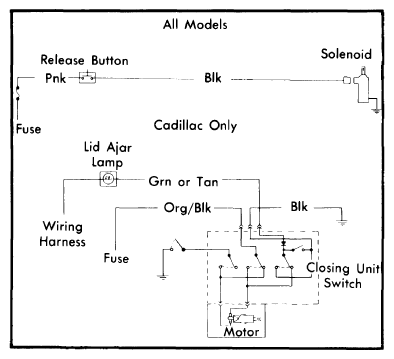

Fig 1: Trunk Release and Pull Down Wiring Diagram for General Motors
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
