Wiring Diagrams - Electric Door Locks: Wiring Diagram

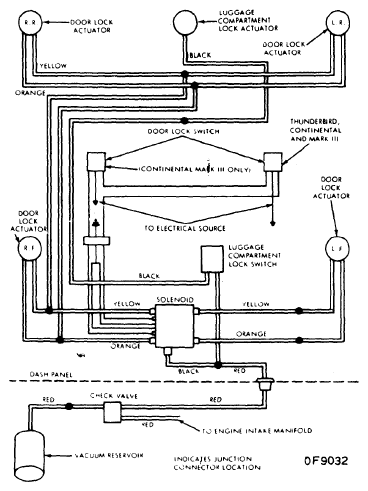

Fig 1: VACUUM DOOR LOCK SCHEMATIC (CONTINENTAL MARK III & THUNDERBIRD)

Courtesy of FORD MOTOR CO.

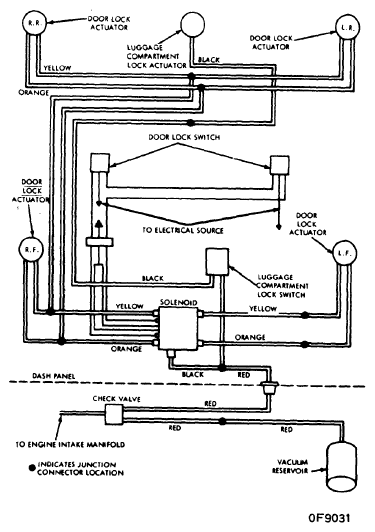

Fig 2: VACUUM DOOR LOCK SCHEMATIC (LINCOLN CONTINENTAL)

Courtesy of FORD MOTOR CO.

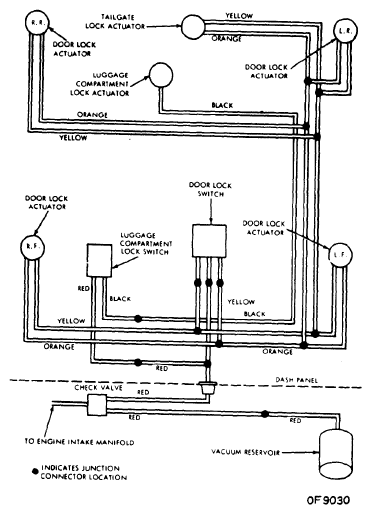

Fig 3: VACUUM DOOR LOCK SCHEMATIC (FORD, MERCURY & METEOR)

Courtesy of FORD MOTOR CO.
