Chrysler Corp (1970-73)
NOTE:
Adjust parking brake AFTER wheel brake adjustment.
Remove adjusting hole covers from backing plates. Insert a suitable adjusting wrench (C-3784) into star wheel and tighten brake by moving tool handle upward until wheel turns with a slight drag. Push adjusting lever away from star wheel (insert rod through access hole) and back off star wheel to ensure free wheel rotation with no brake shoe drag.
NOTE:

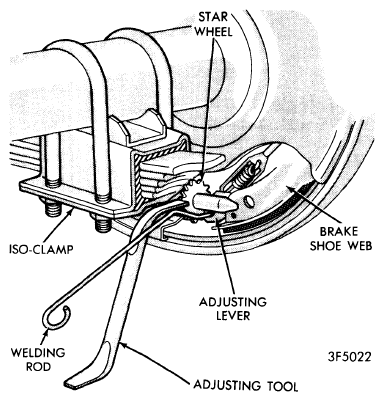

On models with Iso-Clamp rear suspension, bend rod to match angle of adjusting tool, plus a three-quarters reverse bend at contact end (see illustration).
Adjustment should be equal on all wheels.
