Chrysler Corp.

The ignition switch being in the upper end of the steering column, directly across from the lock cylinder, it is only necessary to remove the three retaining screws and remove switch.

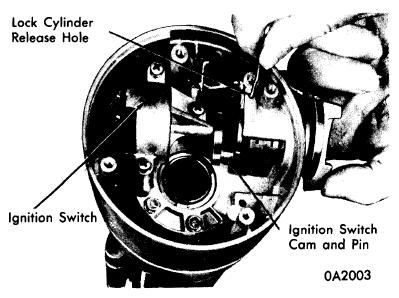

Fig 1: Typical Chrysler Ignition Switch And Lock (Fixed Column)
G09328985Courtesy of CHRYSLER GROUP, LLC
