American Motors, Ford & General Motors

Sliding type switch mounted on steering column and controlled by an actuating rod operated by the lock cylinder through a rack-and-sector mechanism. Up and down movement of the actuating rod moves the switch slider back and forth within the switch housing to establish various switch positions.

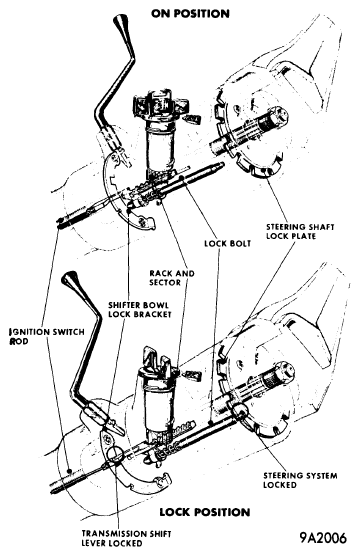

Fig 1: Typical Steering Column Locking Mechanism

Courtesy of CHRYSLER GROUP, LLC

Fig 2: Typical Steering Column Lock

Courtesy of CHRYSLER GROUP, LLC
