Relief Valve Spring

11.15-11.75 lbs. pressure at 1.704".

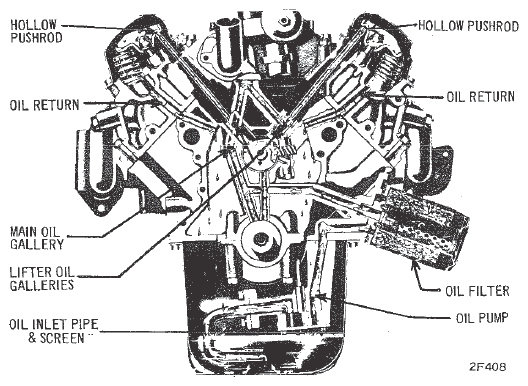

Fig 1: Engine Oiling System
G09324099Courtesy of FORD MOTOR CO.
