Brake Pedal and Bracket: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

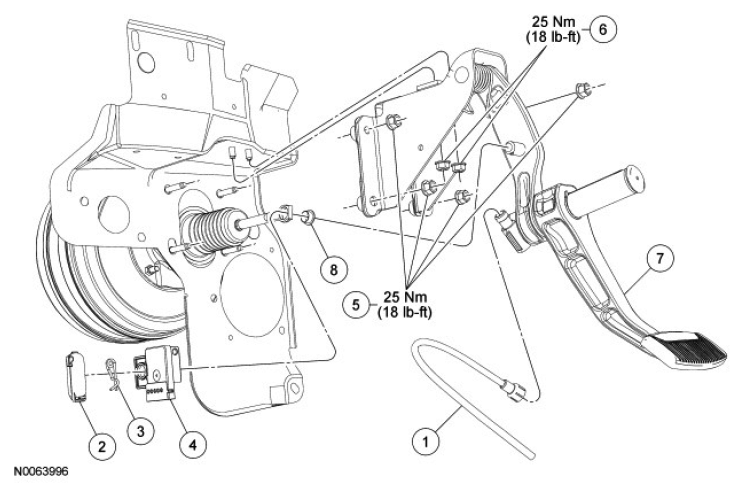

Adjustable pedal shown in illustration, fixed pedal similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C430B | Adjustable brake pedal drive cable |
| 2 | 2475 | Brake pedal cotter pin cover |
| 3 | 380699 | Brake pedal cotter pin |
| 4 | 13480 | Brake pedal position switch |
| 5 | N620481 | Brake booster-to-pedal bracket nuts (4 required) |
| 6 | W711468 | Brake pedal bracket-to-column brace nuts (2 required) |
| 7 | 2455 | Brake pedal and bracket |
| 8 | 2474 | Brake booster push rod bushing |
