Parking Brake Cable - LH: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

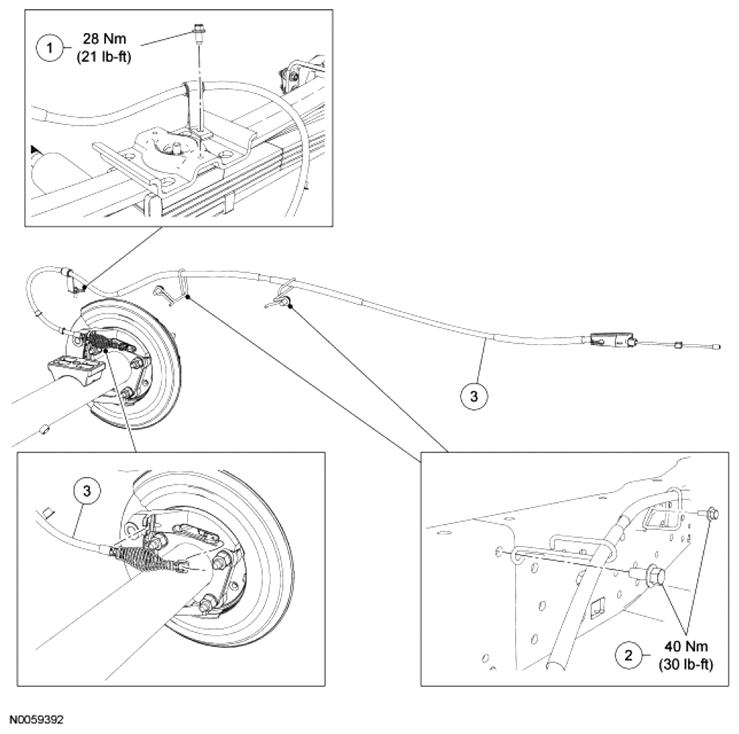

F-250/350 shown in illustration, F-450/550 similar.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W505261 |
LH parking brake-to-spring U-bolt plate bolt |
| 2 |
W505273 |
LH parking brake cable wire form bracket bolts |
| 3 |
2A809 |
LH parking brake cable |
